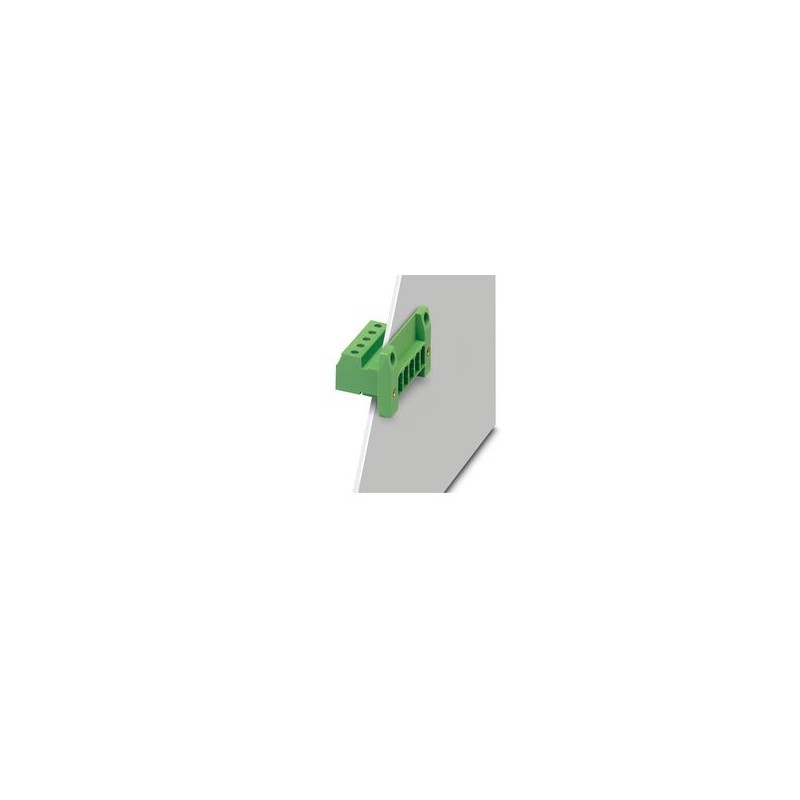

DFK-PC 4/ 9-GF-7,62 BD:01-09SO 1497020 PHOENIX CONTACT Wall pass block, nominal section: 4 mm², color: green..
DFK-PC 4/ 9-GF-7,62 BD:01-09SO
1497020
PHOENIX_CONTACT
1000
Wall pass block, nominal section: 4 mm², color: green, nominal current: 20 A, nominal voltage (III/2): 630 V, contact surface: Sn, contact connection type: Male, number of rows: 1, number of poles: 9, family of articles: DFK-PC 4/.. -GF, pitch: 7.62 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, mounting: Direct mounting, conductor/printed circuit board connection direction: 0 °, number of solder pins per potential: 1, plug-in system: COMBICON PC 4, Plug-in face orientation: Standard, lock: Screw lock, Attachment Type: Overhead Clamping (Thread), Packing Type: Boxed Packed
Feed-through terminal, nominal cross-section: 4 mm², colour: green, nominal current: 20 A, nominal voltage (III/2): 630 V, surface contacts: Tin, contact connection type: Male, number of rows: 1, number of poles: 9, article family: DFK-PC 4/.. -GF, pitch: 7.62mm, connection type: Screw connection with pull capsule, screw clamping way: L Longitudinal slot, mounting: Direct mounting, connection direction conductor/printed circuit board: 0°, number of solder pins per potential: 1, plug-in system: COMBICON PC 4, Plug-in face orientation: Standard, locking: Screw locking, Fastening Type: Aerial Clamping (Thread), Packaging Type: Boxed Packaging
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Line | COMBICON Connectors L |
| Product Type | Terminal block |
| Product Family | DFK-PC 4/.. -GF |
| Number of poles | 9 |
| Step | 7.62 mm |
| Number of rows | 1 |
| Number of Solder Pins Per Potential | 1 |
| Nominal Current IN | 20 A |
| Nominal voltage UN | 630 V |
| Degree of pollution | 3 |
| Contact resistance | 0.4 mΩ |
| Sizing voltage (III/3) | 400 V |
| Dimensioning transient voltage (III/3) | 6 kV |
| Dimensioning voltage (III/2) | 630 V |
| Dimensioning Transient Voltage (III/2) | 6 kV |
| Nominal voltage (II/2) | 1000 V |
| Dimensioning transient voltage (II/2) | 6 kV |
| Connection technology | |
| Construction | Pass-through base housing |
| Connector System | COMBICON PC 4 |
| Nominal Section | 4 mm² |
| Contact Connection Type | male |
| Blockade | |
| Locking system | Screw lock |
| Clamping flange | Overhead clamping (thread) |
| Connecting Conductors | |
| Connection type | Screw connection with traction capsule |
| Connection direction of the conductor with respect to the plug direction | 0 ° |
| Rigid conductor section | 0.2 mm² ... 4 mm² |
| Flexible conductor section | 0.2 mm² ... 4 mm² |
| AWG Conductor Section | 24 ... 10 |
| Flexible conductor section with toe cap, without plastic sleeve | 0.25 mm² ... 4 mm² |
| Flexible conductor section with toe cap, with plastic sleeve | 0.25 mm² ... 4 mm² |
| 2 conductors with the same cross-section, rigid | 0.2 mm² ... 2.5 mm² |
| 2 conductors with the same cross-section, flexible | 0.2 mm² ... 2.5 mm² |
| 2 conductors of equal cross-section, flexible with toe cap, without plastic sleeve | 0.2 mm² ... 1.5 mm² |
| 2 conductors with the same cross-section, flexible with TWIN toe cap with plastic sleeve | 0.5 mm² ... 2.5 mm² |
| Male gauge a x b / Diameter | 3.6 mm x 3.1 mm / 3.0 mm |
| Peel Length | 7 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Type of mounting | Direct mounting |
| Drive shape: screw head | Longitudinal groove (L) |
| Drive shape: screw head | Longitudinal groove (L) |
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Malleable cast iron tinning |
| Metal surface of the terminal point (top layer) | Tin (5 - 7 μm Sn) |
| Metal surface contact area (top layer) | Tin (5 - 7 μm Sn) |
| Material data - housing | |
| Color () | () |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Flammability number of GWFI incandescent filaments according to EN 60695-2-12 | 850 |
| Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13 | 775 |
| Ball hardness test temperature according to EN 60695-10-2 | 125 °C |
| Observation regarding the operation | According to DIN EN 61984, COMBICON connectors are connectors without switching power (COC). In the event of use as prescribed, they must not be plugged in or unplugged under voltage or load. |
| Dimension Scheme |  |
| Step | 7.62 mm |
| Width [w] | 90.2 mm |
| Height [h] | 30.5 mm |
| Length [l] | 32 mm |
| Overall Height | 30.5 mm |
| Checking for damage to conductors and loosening | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Approved Test |
| Tensile Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value | 0.2 mm² / rigid / > 10 N |
| 0.2 mm² / flexible / > 10 N | |
| 4 mm² / rigid / > 60 N | |
| 4 mm² / flexible / > 60 N | |
| Forces when plugging in and unplugging | |
| Result | Approved Test |
| Number of cycles | 25 |
| Plug-in force approx. | 8 N |
| Power when unplugging by pole approx. | 6 N |
| Torque check | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Resistance of the signs | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Approved Test |
| Polarization & Coding | |
| Test Specification | DIN IEC 60512-7:1994-05 (no confusion) |
| Result | Approved Test |
| Eye Exam | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Approved Test |
| Dimensional Examination | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Approved Test |
| Thermal Test | Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 12 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | 1012Ω |
| Creepage Lines & Air Isolation Distances | | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 400 V |
| Nominal transient voltage (III/3) | 6 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 5.5 mm |
| Minimum creepage line value (III/3) | 5.5 mm |
| Sizing Insulation Voltage (III/2) | 630 V |
| Nominal transient voltage (III/2) | 6 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 5.5 mm |
| Minimum creepage line value (III/2) | 5.5 mm |
| Sizing Insulation Voltage (II/2) | 1000 V |
| Nominal transient voltage (II/2) | 6 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 5.5 mm |
| Minimum creepage line value (II/2) | 5.5 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6:1996-05 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep speed | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Durability Test | |
| Test Specification | DIN IEC 60512-5:1994-05 |
| Bearable shock voltage at sea level | 7.3 kV |
| Contact Resistance R1 | 0.4 mΩ |
| Contact Resistance R2 | 0.6 mΩ |
| Plug Cycles | 25 |
| Climate Essay | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion fatigue | KFW 0.2 S/1 cycle |
| Thermal stress | 100 °C/168 h |
| Bearable AC voltage | 3.31 kV |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 100 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Type of packaging | Boxed Packaging |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 7.62 mm |
| Modular spacing connections (EF006827) | 7.62 mm |
| Rated current In (EF008250) | 20 A |
| Rated voltage (EF000228) | 630 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
