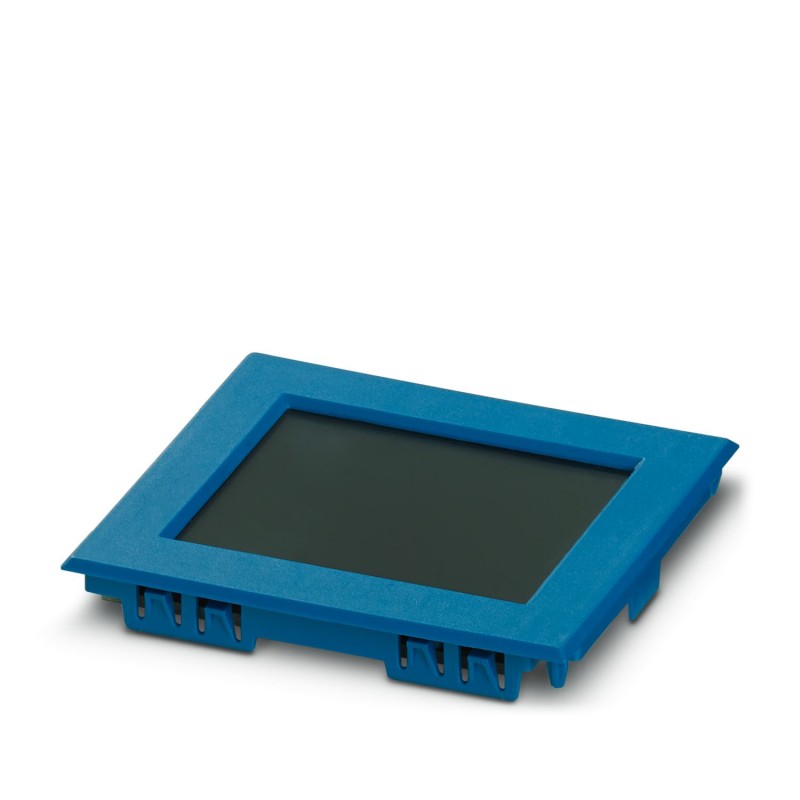

DFC T 2,4 QVGA S 5015 2203539 PHOENIX CONTACT TFT module 2.4", 320 x 240 pixels, transmissive, LED backlight..
DFC T 2,4 QVGA S 5015
2203539
PHOENIX_CONTACT
5
TFT module 2.4", 320 x 240 pixels, transmissive, LED backlight, interface: SPI, operating temperature: -20°C ... 70°C; frame color (RAL): blue (5015)
Housing (HS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Item properties
| Type | DFC T 2,4 QVGA S 5015 |
|---|---|
| Order No. | 2203539 |
| Display | Color display TFT |
| Panel technology | TFT |
| Screen resolution | 320 x 240 Pixel(s) (QVGA) |
| Display type | LCD with backlighting |
| Backlighting | LED, white |
| Controller | HX8347I |
| Contrast ratio | 500 |
| Interface | SPI |
| Viewing direction | 6:00 |
Dimensions
| Dimensions | 72 mm x 59 mm x 9 mm (Dimensions of the display frame) |
|---|---|
| 49 mm x 37 mm (Active range) | |
| Diagonals (cm) | 6.9 cm |
| Diagonals (inch) | 2.4 in. |
| Aspect ratio | 4:3 |
Ambient conditions
| Ambient temperature (storage/transport) | -30 °C ... 80 °C |
|---|---|
| Ambient temperature (operation) | -20 °C ... 70 °C |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
