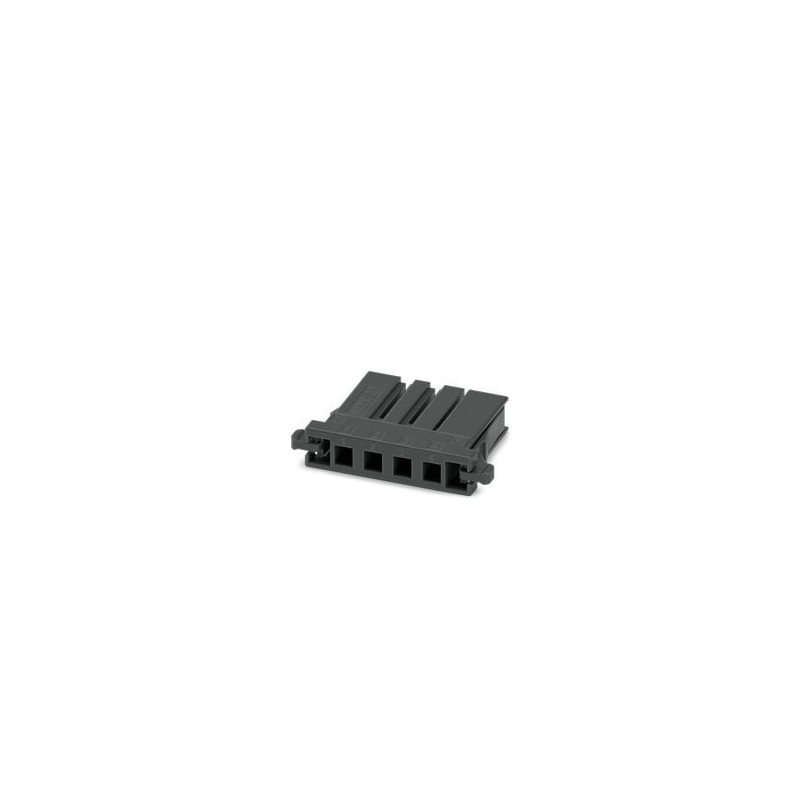

D32PC 2,2/ 4-5,08-Y 1376497 PHOENIX CONTACT Connector for printed circuit board, color: black, rated current..
D32PC 2,2/ 4-5,08-Y
1376497
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
Connector for printed circuit board, color: black, rated current: 8 A, rated voltage (III/2): 320 V, contact connection type: Female, number of rows: 1, number of poles: 4, item family: D32PC 2.2/.., pitch: 5.08 mm, connection type: Crimp connection, driver/printed circuit board connection direction: 0 °, clamping hook: - without clamping hook, plug-in system: CONNEXIS D, locking: Snap lock, fixing type: Locking trigger, packaging type: boxed
Connector for printed circuit board, color: black, rated current: 8 A, rated voltage (III/2): 320 V, contact type: Female, number of rows: 1, number of poles: 4, item family: D32PC 2.2/, pitch: 5.08 mm, connection type: crimped connection, connection direction conductor/printed circuit board: 0°, clamping hook: - without clamping hook, Plug-in System: CONNEXIS D, Locking: Locking by Lace, Fixing Type: Lace Flange, Packing Type: Boxed Packaging
PCB connector, Colour: black, Rated current: 8 A, Rated voltage (III/2): 320 V, Contact type: Socket, Number of rows: 1, Number of poles: 4, Article family: D32PC 2.2/, Pitch: 5.08 mm, Connection type: Crimp connection, Connection direction conductor/board: 0 °, Snap-in hook: - without snap-in hook, Plug-in system: CONNEXIS D, Locking: Latching lock, Fastening type: Snap-in flange, Packaging type: packed in a carton
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Line | CONNEXIS Connectors M |
| Product Type | PCB Connectors |
| Product family | D32PC 2,2/ |
| Number of poles | 4 |
| Grid dimension | 5.08 mm |
| Number of rows | 1 |
| Nominal current IN | 8 A |
| Rated voltage UN | 320 V |
| Degree of contamination | 3 |
| Contact resistance | 0.9 mΩ |
| Rated voltage (III/3) | 250 V |
| Rated Surge Voltage (III/3) | 4 kV |
| Rated voltage (III/2) | 320 V |
| Rated Surge Voltage (III/2) | 4 kV |
| Rated voltage (II/2) | 500 V |
| Rated Surge Voltage (II/2) | 4 kV |
| Locking | |
| Lock type | Latch lock |
| Mounting Flange | Snap-in flange |
| Conductor connection | |
| Connection type | Crimp Connector |
| Connection direction conductor/circuit board | 0 ° |
| Conductor cross-section AWG | 28 ... 14 |
| Stripping length | 4.5 mm |
| Material specifications - Housing | |
| Color (Housing) | black (9005) |
| Insulating material | PBT |
| Insulating material group | II |
| CTI according to IEC 60112 | 400 ≤ CTI |
| Flammability class according to UL 94 | V0 |
| Dimensional drawing |  |
| Grid dimension | 5.08 mm |
| Width [w] | 29.24 mm |
| Height [h] | 13.15 mm |
| Length [l] | 22.1 mm |
| Contact Notice | These connectors are according to DIN EN 61984, connectors without switching capacity (COC). When used as intended, they must not be plugged in or disconnected in a live or under load. |
| Tensile Strength of Crimp Joints | |
| Result | Exam passed |
| Conductor cross-section/Conductor type/Tensile force Setpoint/Actual value | AWG 28 / flexible / > 11 N |
| Mating and pulling forces | |
| Result | Exam passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 3 N |
| Pulling force per pole approx. | 4 N |
| Durability of inscriptions | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Exam passed |
| Polarization and Coding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Exam passed |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Exam passed |
| Dimensional inspection | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Exam passed |
| Vibration testing | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep Speed | 50 m/s² (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Durability test | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Standing Shock Stress at Sea Level | 4.8 kV |
| Contact resistance R1 | 0.9 mΩ |
| Contact resistance R2 | 1 mΩ |
| Mating cycles | 25 |
| Climatic testing | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion stress | 0.2 dm3SO2to 300 DM3/40 °C/1 cycle |
| Heat stress | 105 °C/168 h |
| Standing AC voltage | 2.21 kV |
| Shock | |
| Test Specification | DIN EN 60068-2-27 (VDE 0468-2-27):2010-02 |
| Shock form | Half Sine |
| Acceleration | 30g |
| Shock duration | 11 ms |
| Test Directions | X, Y and Z axes (pos. and neg.) |
| Environmental conditions | |
| Ambient temperature (operating) | -55 °C ... 105 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Thermal Testing Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Tested number of poles | 10 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Clearance and creepage distances | |
| Test Specification | DIN EN IEC 60664-1 (VDE 0110-1):2022-07 |
| Insulating material group | II |
| Tracking resistance (DIN EN 60112 (VDE 0303-11)) | CTI ≥400 to <600 |
| Rated insulation voltage (III/3) | 250 V |
| Rated Surge Voltage (III/3) | 4 kV |
| Minimum air distance value - inhomogeneous field (III/3) | 3 mm |
| Minimum value of the creepage distance (III/3) | 3.6 mm |
| Rated insulation voltage (III/2) | 320 V |
| Rated Surge Voltage (III/2) | 4 kV |
| Minimum value of the air distance - inhomogeneous field (III/2) | 3 mm |
| Minimum value of the creepage distance (III/2) | 3 mm |
| Rated insulation voltage (II/2) | 500 V |
| Rated Surge Voltage (II/2) | 4 kV |
| Minimum value of the clearance - inhomogeneous field (II/2) | 3 mm |
| Minimum value of the creepage distance (II/2) | 3.6 mm |
| Packaging type | packed in carton |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Type of electric connection (EF003961) | Crimp connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material insulation body (EF007543) | Other |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -55 °C |
