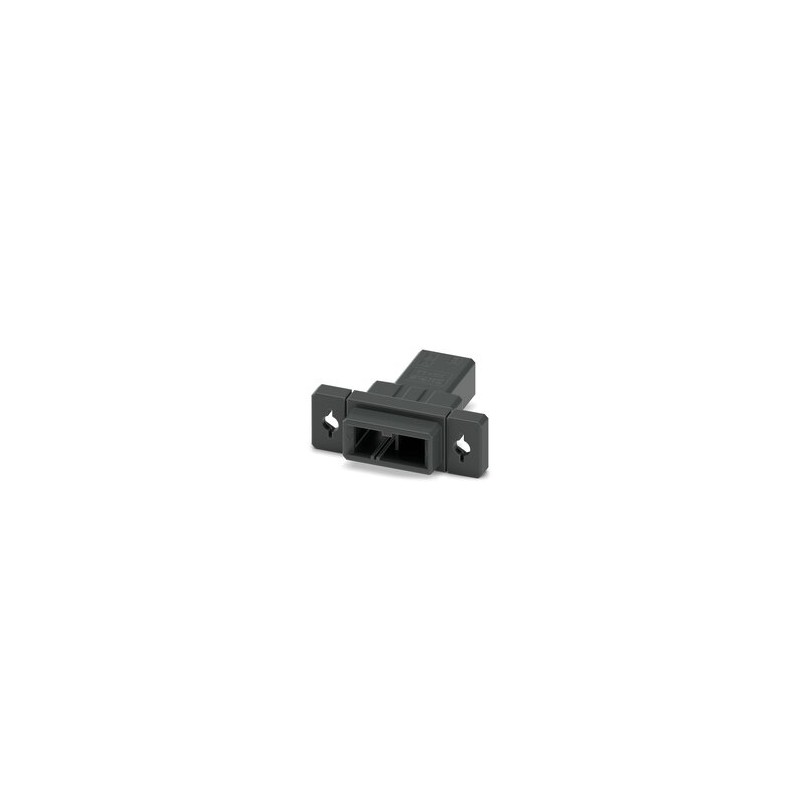

D32H 2,2/ 2-PT-5,08-Y 1378293 PHOENIX CONTACT Feed-through terminal, colour: black, nominal current: 8 A, no..
D32H 2,2/ 2-PT-5,08-Y
1378293
PHOENIX_CONTACT
100
Feed-through terminal, colour: black, nominal current: 8 A, nominal voltage (III/2): 320 V, contact connection type: Male, number of rows: 1, number of poles: 2, article family: D32H 2,2/.. -PT, pitch: 5.08mm, connection type: Crimp connection, conductor/PCB connection direction: 0°, clamping hook: - without clamping hook, plug-in system: CONNEXIS D, locking: Lace lock, fixing type: Lace protrusion, packing type: boxed packaging
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Technical data
Item Properties
| Product Line | CONNEXIS Connectors M |
| Product Type | Terminal block |
| Product Family | D32H 2,2/.. -PT |
| Number of poles | 2 |
| Step | 5.08 mm |
| Number of rows | 1 |
Electrical Properties
| Nominal Current IN | 8 A |
| Nominal voltage UN | 320 V |
| Degree of pollution | 3 |
| Contact resistance | 1 mΩ |
| Sizing voltage (III/3) | 250 V |
| Dimensioning transient voltage (III/3) | 4 kV |
| Dimensioning voltage (III/2) | 320 V |
| Dimensioning Transient Voltage (III/2) | 4 kV |
| Nominal voltage (II/2) | 600 V |
| Dimensioning transient voltage (II/2) | 4 kV |
Connection data
| Blockade | |
| Locking system | Lace lock |
| Clamping flange | Lace protrusion |
| Connecting Conductors | |
| Connection type | Crimp connection |
| AWG Conductor Section | 28 ... 14 |
| Peel Length | 4.5 mm |
Material Data
| Material data - housing | |
| Color (Housing) | Black (9005) |
| Insulating material | PBT |
| Insulating material group | Ii |
| CTI according to IEC 60112 | 400 ≤ CTI |
| Flammability class according to UL 94 | V0 |
Notes
| Note on contact | These are connectors without switching capability (COC) according to DIN EN 61984. In the event of use as prescribed, they must not be plugged in or unplugged under voltage or load. |
Dimensions
| Dimension Scheme |  |
| Step | 5.08 mm |
| Width [w] | 36.23 mm |
| Height [h] | 9.35 mm |
| Length [l] | 33.6 mm |
Mechanical testing
| Tensile strength of crimped joints | |
| Result | Approved Test |
| Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value | AWG 28 / flexible / > 11 N |
| Forces when plugging in and unplugging | |
| Result | Approved Test |
| Number of cycles | 25 |
| Plug-in force approx. | 3 N |
| Power when unplugging by pole approx. | 3 N |
| Used contact holder | |
| Test Specification | DIN EN 60512-15-1:2009-03 |
| Contact Holder Used Requirement >20 N | Approved Test |
| Resistance of the signs | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Approved Test |
| Polarization & Coding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Approved Test |
| Eye Exam | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Approved Test |
| Dimensional Examination | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Approved Test |
Electrical Testing
| Thermal Test | Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 10 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Creepage Lines & Air Isolation Distances | | |
| Test Specification | IEC 60664-1:2020-05 |
| Insulating material group | Ii |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI ≥400 to <600 |
| Sizing Insulation Voltage (III/3) | 250 V |
| Nominal transient voltage (III/3) | 4 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 3 mm |
| Minimum creepage line value (III/3) | 3.6 mm |
| Sizing Insulation Voltage (III/2) | 320 V |
| Nominal transient voltage (III/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 3 mm |
| Minimum creepage line value (III/2) | 3 mm |
| Sizing Insulation Voltage (II/2) | 600 V |
| Nominal transient voltage (II/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 3 mm |
| Minimum creepage line value (II/2) | 4.5 mm |
Environmental and life-life conditions
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep speed | 50 m/s² (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Durability Test | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Bearable shock voltage at sea level | 4.8 kV |
| Contact Resistance R1 | 1 mΩ |
| Contact Resistance R2 | 1.05 mΩ |
| Plug Cycles | 25 |
| Climate Essay | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion fatigue | 0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle |
| Thermal stress | 105 °C/168 h |
| Bearable AC voltage | 2.21 kV |
| Crash | |
| Test Specification | DIN EN 60068-2-27 (VDE 0468-2-27):2010-02 |
| Shock Type | Semi-sinusoid |
| Acceleration | 30g |
| Duration of the crash | 11 ms |
| Test Directions | X, Y, and Z axes (pos. and neg.) |
| Environmental conditions | |
| Ambient Temperature (Service) | -55 °C ... 105 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
Packaging Information
| Type of packaging | Boxed Packaging |
