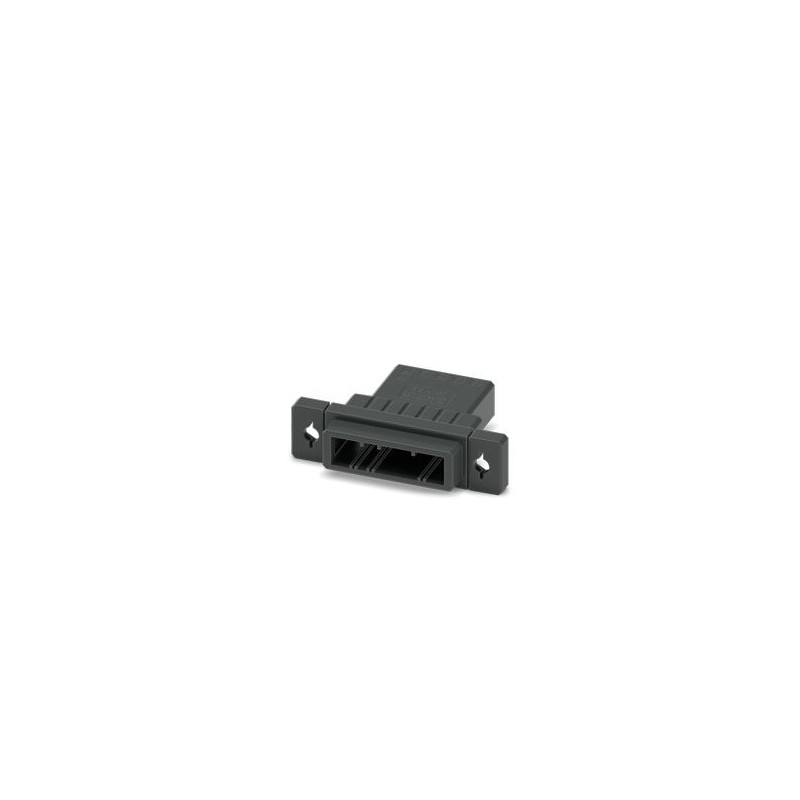

D31H 2,2/ 5-PT-3,81-Y 1341136 PHOENIX CONTACT Terminal block, color: black, rated current: 8 A, rated voltag..
D31H 2,2/ 5-PT-3,81-Y
1341136
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
Terminal block, color: black, rated current: 8 A, rated voltage (III/2): 160 V, contact connection type: Male, number of rows: 1, number of poles: 5, item family: D31H 2.2/.. -PT, pitch: 3.81 mm, connection type: Crimp connection, conductor connection direction/printed circuit board: 0 °, clamping hook: - without clamping hook, plug-in system: CONNEXIS D, Plug-in face orientation: Standard, locking: Locking by snapping, fixing type: Socket protrusion, packaging type: boxed
Feed-through terminals, colour: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact type: Male, number of rows: 1, number of poles: 5, article family: D31H 2,2/.. -PT, pitch: 3.81mm, connection type: crimped connection, conductor/printed circuit board connection direction: 0°, clamping hook: - without clamping hook, plug-in system: CONNEXIS D, locking: Lace lock, fixing type: Lace protrusion, packing type: boxed packaging
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Line | CONNEXIS Connectors S |
| Product Type | Terminal block |
| Product Family | D31H 2,2/.. -PT |
| Number of poles | 5 |
| Step | 3.81 mm |
| Number of rows | 1 |
| Nominal Current IN | 8 A |
| Nominal voltage UN | 160 V |
| Degree of pollution | 3 |
| Contact resistance | 5 mΩ |
| Sizing voltage (III/3) | 160 V |
| Dimensioning transient voltage (III/3) | 2.5 kV |
| Dimensioning voltage (III/2) | 160 V |
| Dimensioning Transient Voltage (III/2) | 2.5 kV |
| Nominal voltage (II/2) | 320 V |
| Dimensioning transient voltage (II/2) | 2.5 kV |
| Blockade | |
| Locking system | Lace lock |
| Clamping flange | Lace protrusion |
| Connecting Conductors | |
| Connection type | Crimp connection |
| AWG Conductor Section | 28 ... 14 |
| Peel Length | 4.5 mm |
| Material data - housing | |
| Color (Housing) | Black (9005) |
| Insulating material | PBT |
| Insulating material group | Ii |
| CTI according to IEC 60112 | 400 ≤ CTI |
| Flammability class according to UL 94 | V0 |
| Note on contact | These are connectors without switching capability (COC) according to DIN EN 61984. In the event of use as prescribed, they must not be plugged in or unplugged under voltage or load. |
| A note on the application | All laboratory tests have been carried out in combination with the crimp contacts indicated as accessories. |
| A note on the application | The current depends on the crimp contact and cable cross-section used. |
| A note on the application | You will find the corresponding crimped contacts in the "Accessories" tab. |
| Dimension Scheme |  |
| Step | 3.81 mm |
| Width [w] | 47 mm |
| Height [h] | 12.7 mm |
| Length [l] | 33.6 mm |
| Printed circuit board design | |
| Hole diameter | 3.6 mm |
| Tensile strength of crimped joints | |
| Result | Approved Test |
| Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value | AWG 28 / flexible / > 11 N |
| Forces when plugging in and unplugging | |
| Result | Approved Test |
| Number of cycles | 25 |
| Plug-in force approx. | 6 N |
| Power when unplugging by pole approx. | 6 N |
| Used contact holder | |
| Test Specification | DIN EN 60512-15-1:2009-03 |
| Contact Holder Used Requirement >20 N | Approved Test |
| Resistance of the signs | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Approved Test |
| Polarization & Coding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Approved Test |
| Eye Exam | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Approved Test |
| Dimensional Examination | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Approved Test |
| Thermal Test | Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 10 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Creepage Lines & Air Isolation Distances | | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | Ii |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI ≥400 to <600 |
| Sizing Insulation Voltage (III/3) | 160 V |
| Nominal transient voltage (III/3) | 2.5 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 1.5 mm |
| Minimum creepage line value (III/3) | 2.2 mm |
| Sizing Insulation Voltage (III/2) | 160 V |
| Nominal transient voltage (III/2) | 2.5 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 1.5 mm |
| Minimum creepage line value (III/2) | 1.5 mm |
| Sizing Insulation Voltage (II/2) | 320 V |
| Nominal transient voltage (II/2) | 2.5 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 1.5 mm |
| Minimum creepage line value (II/2) | 2.2 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep speed | 50 m/s² (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Durability Test | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Bearable shock voltage at sea level | 2.95 kV |
| Contact Resistance R1 | 5 mΩ |
| Contact Resistance R2 | 5 mΩ |
| Plug Cycles | 25 |
| Climate Essay | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion fatigue | 0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle |
| Thermal stress | 105 °C/168 h |
| Bearable AC voltage | 1.39 kV |
| Environmental conditions | |
| Ambient Temperature (Service) | -55 °C ... 105 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Type of packaging | Boxed Packaging |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Other |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 3.81 mm |
| Modular spacing connections (EF006827) | 3.81 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Type of electric connection (EF003961) | Crimp connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material insulation body (EF007543) | Other |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -55 °C |
