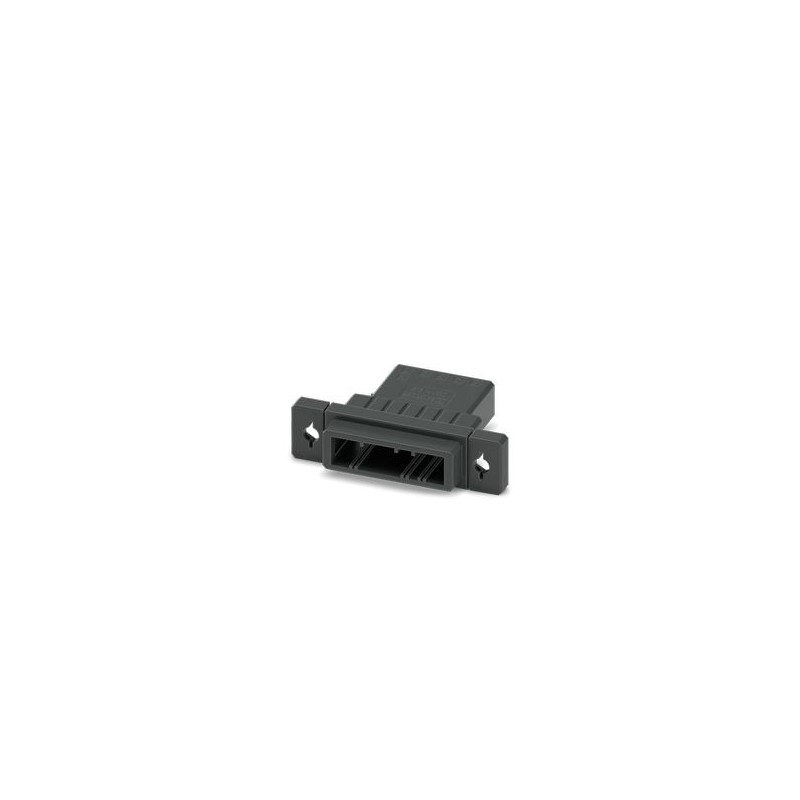

D31H 2,2/ 5-PT-3,81-X 1340378 PHOENIX CONTACT Terminal block, color: black, rated current: 8 A, rated voltag..
D31H 2,2/ 5-PT-3,81-X
1340378
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
Terminal block, color: black, rated current: 8 A, rated voltage (III/2): 160 V, contact connection type: Male, number of rows: 1, number of poles: 5, item family: D31H 2.2/.. -PT, pitch: 3.81 mm, connection type: Crimp connection, conductor connection direction/printed circuit board: 0 °, clamping hook: - without clamping hook, plug-in system: CONNEXIS D, Plug-in face orientation: Standard, locking: Locking by snapping, fixing type: Socket protrusion, packaging type: boxed
Feed-through terminals, colour: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact type: Male, number of rows: 1, number of poles: 5, article family: D31H 2,2/.. -PT, pitch: 3.81mm, connection type: crimped connection, conductor/printed circuit board connection direction: 0°, clamping hook: - without clamping hook, plug-in system: CONNEXIS D, locking: Lace lock, fixing type: Lace protrusion, packing type: boxed packaging
Feed-through connector, colour: black, rated current: 8 A, dimensioning voltage (III/2): 160 V, contact connection type: Plug, number of rows: 1, number of poles: 5, product series: D31H 2,2/.. -PT, pitch: 3.81 mm, connection type: Crimp connection, conductor/board connection direction: 0 °, locking hook: - without locking hook, plug system: CONNEXIS D, locking: Snap locking, fixing type: Plug-in tab, packaging type: packed in carton
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Line | CONNEXIS Connectors S |
| Product Type | Step-through connector |
| Product Family | D31H 2.2/.. -PT |
| No. of poles | 5 |
| Step | 3.81 mm |
| Number of rows | 1 |
| Rated Current IN | 8 A |
| Rated voltage UN | 160 V |
| Degree of pollution | 3 |
| Mass Resistivity | 5 mΩ |
| Sizing voltage (III/3) | 160 V |
| Sizing impulse voltage (III/3) | 2.5 kV |
| Sizing voltage (III/2) | 160 V |
| Sizing Impulse Voltage (III/2) | 2.5 kV |
| Sizing voltage (II/2) | 320 V |
| Sizing Impulse Voltage (II/2) | 2.5 kV |
| Blockage | |
| Clamping Type | Snap lock |
| Fixing flange | Snap-in tab |
| Conductor connection | |
| Link | Crimp Connection |
| Conductor cross-section AWG | 28 ... 14 |
| Length of the section to be stripped | 4.5 mm |
| Material information - case | |
| Color (Case) | Black (9005) |
| Insulation material | PBT |
| Insulation Material Group | II |
| CTI according to IEC 60112 | 400 ≤ CTI |
| Combustibility class according to UL 94 | V0 |
| Contact Information | According to DIN EN 61984, these connectors have no switching power (COC). For intended use, they must not be plugged in or disconnected while they are still live or under load. |
| Note for use | All laboratory tests were performed in conjunction with the crimp contacts listed as accessories. |
| Note for use | The current depends on the crimp contact and the cross-section of the conductor used. |
| Note for use | The associated crimp contacts can be found under the "Accessories" tab. |
| Dimensioned Drawing |  |
| Step | 3.81 mm |
| Width [w] | 47 mm |
| Height [h] | 12.7 mm |
| Length [l] | 33.6 mm |
| Printed circuit board design | |
| Bore diameter | 3.6 mm |
| Tensile strength of crimp connections | |
| Result | Test passed |
| Conductor cross-section/conductor type/tensile force nominal value/actual value | AWG 28 / flexible / > 11 N |
| Insertion/tensile force | |
| Result | Test passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 6 N |
| Tensile force per pole approx. | 6 N |
| Contact holder in use | |
| Test Specification | DIN EN 60512-15-1:2009-03 |
| Areas of application for contact holders Application >20 N | Test passed |
| Resistance of lettering | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Test passed |
| Polarization and encoding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Test passed |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Test passed |
| Dimensional control | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Test passed |
| Thermal Test Control Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 10 |
| Insulation Resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | II |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI ≥400 up to <600 |
| Rated insulation voltage (III/3) | 160 V |
| Rated impulse voltage (III/3) | 2.5 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 1.5 mm |
| Minimum creepage value (III/3) | 2.2 mm |
| Rated Isolation Voltage (III/2) | 160 V |
| Rated impulse voltage (III/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 1.5 mm |
| Minimum creepage value (III/2) | 1.5 mm |
| Rated Isolation Voltage (II/2) | 320 V |
| Rated Impulse Voltage (II/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 1.5 mm |
| Minimum creepage value (II/2) | 2.2 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep Speed | 50 m/s² (60.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Electrical life control | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Vertical impulse tension above sea level | 2.95 kV |
| Mass Resistivity R1 | 5 mΩ |
| Mass Resistivity R2 | 5 mΩ |
| Manoeuvring cycles | 25 |
| Climate control | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Stress due to corrosion | 0.2 dm3KNOW2on 300 dm3/40 °C/1 cycle |
| Stress due to the effect of heat | 105 °C/168 h |
| Fixed AC voltage | 1.39 kV |
| Environmental conditions | |
| Ambient temperature (operating) | -55 °C ... 105 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Packaging | Packed in carton |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Other |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 3.81 mm |
| Modular spacing connections (EF006827) | 3.81 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Type of electric connection (EF003961) | Crimp connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material insulation body (EF007543) | Other |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -55 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
