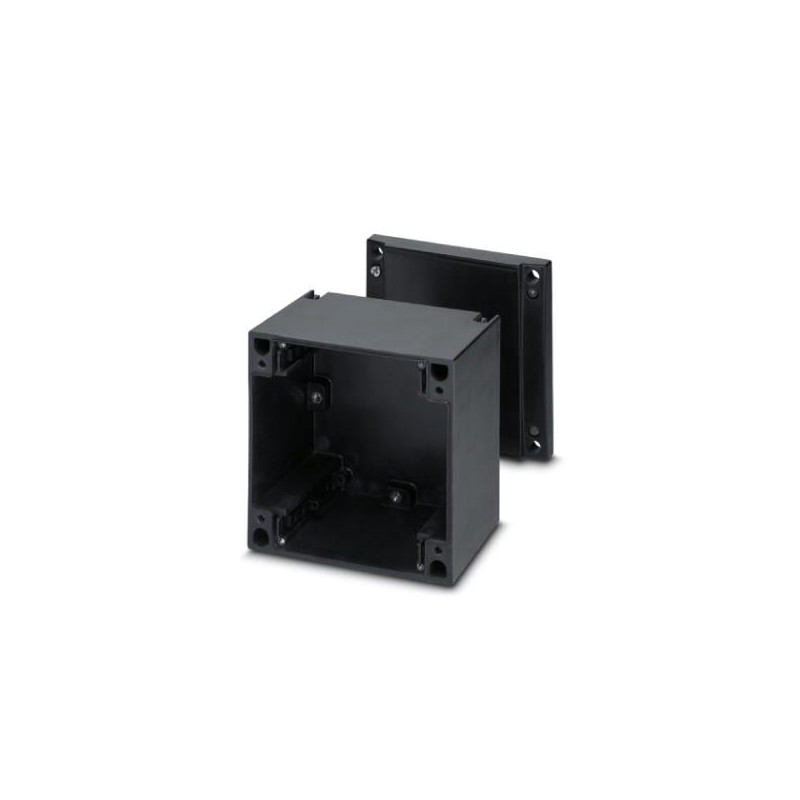

D PX A 177X177X145 0899324 PHOENIX CONTACT Junction box
D PX A 177X177X145
0899324
PHOENIX_CONTACT
Junction box
Empty housing, with two levels of wiring, material: Fiberglass reinforced polyester, with graphite supplement, black, 177 mm x 177 mm x 145 mm, type of closure: Screw-on cover
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
Enclosures connectivity
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 0899324 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 538 (C-3-2017) |
| GTIN | 4055626275932 |
| Weight per Piece (excluding packing) | 99.990 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Type | Ex empty enclosure with two wiring levels |
|---|---|
| Note | Prepared for direct installation of a DIN rail |
| Color | black |
| Flammability rating according to UL 94 | V0 |
| Direct DIN rail mounting | yes |
| Useable DIN rail type | NS 35 |
Dimensions
| Width | 177 mm |
|---|---|
| Height | 177 mm |
| Depth | 145 mm |
| Clearance width, maximum DIN rail length | 152 mm |
| Assembly length, max. | 115 mm |
General
| Housing material | Glass-fiber-reinforced polyester with added graphite |
|---|---|
| Cover fastening | Screw-on cover |
| Note | Plus/minus screw |
| Fixing device | Integrated blind hole |
| Seal material | Silicon |
| Components | halogen-free |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| Protection class | II |
| Degree of protection (IK) | 7.00 J EN 60079-0 |
| Temperature in operating conditions | -55 °C ... 127 °C |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 10.0.127180190eCl@ss 4.024190219eCl@ss 4.124190219eCl@ss 5.027141137eCl@ss 5.127180100eCl@ss 6.027180100eCl@ss 7.027180190eCl@ss 8.027180190eCl@ss 9.027180190
