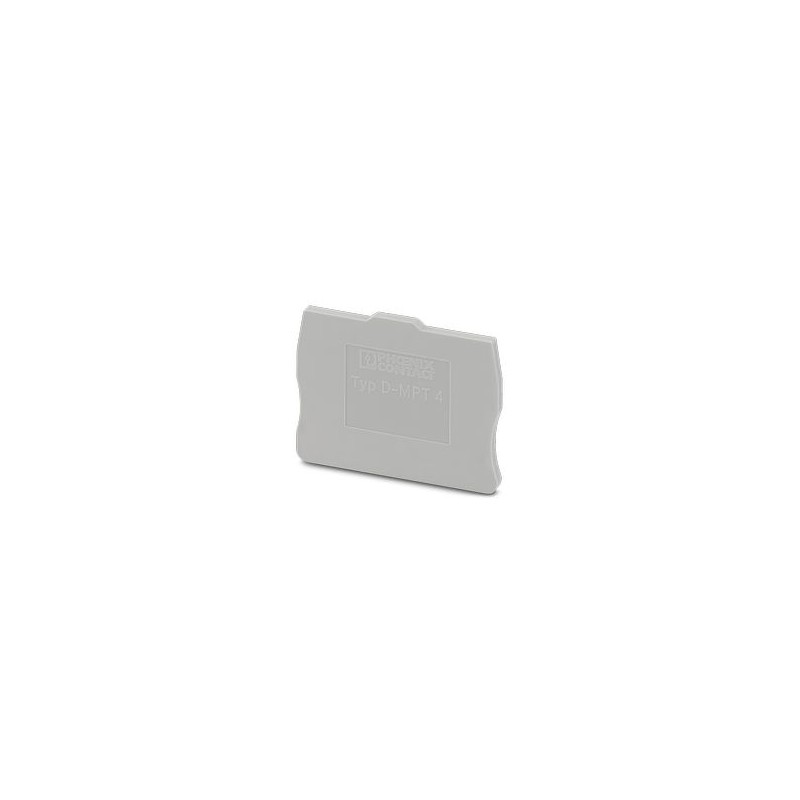

D-MPT 4 3249003 PHOENIX CONTACT End cap, depth: 27.1 mm, width: 2.2 mm, height: 38 mm, colour: grey
D-MPT 4
3249003
PHOENIX_CONTACT
50
End cap, depth: 27.1 mm, width: 2.2 mm, height: 38 mm, colour: grey
End cap, length: 38 mm, width: 2.2 mm, height: 27.1 mm, color: grey
Terminal blocks > Endplate and partition plate for terminal block
Modular TBs
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | End cover |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Color | gray |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Static insulating material application in cold | -60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Width | 2.2 mm |
| End cover width | 2.2 mm |
| Height | 38 mm |
| Depth | 27.1 mm |
| Depth on NS 15 | 32.3 mm |
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Grey |
| Thickness (EF000125) | 2.2 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX TERMINAL BLOCKS EN.pdf | 69 Mbytes |
|
