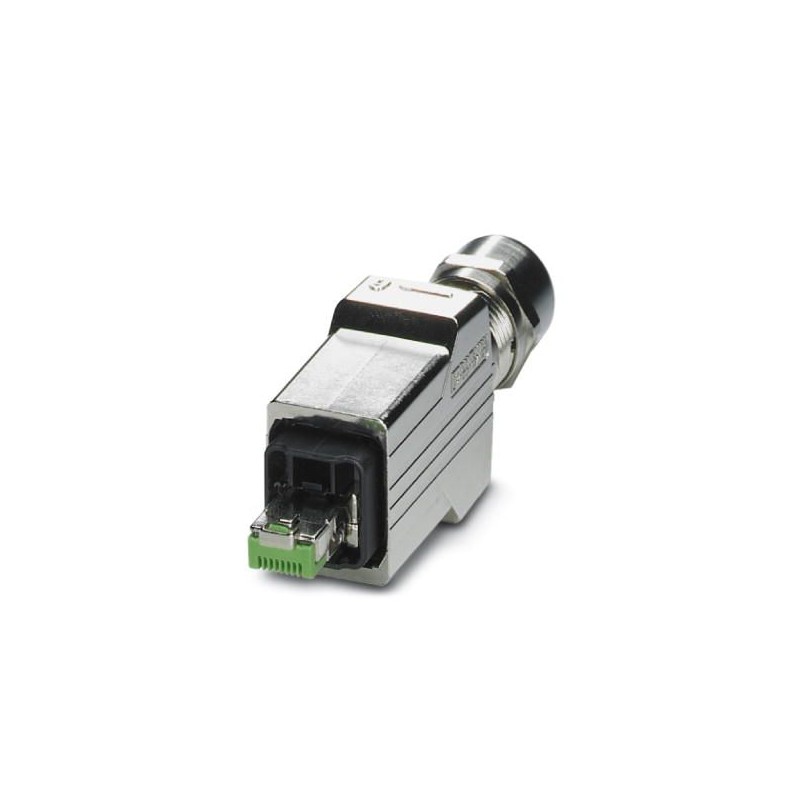

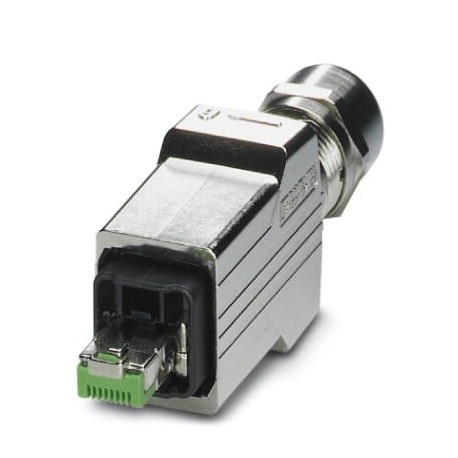

CUC-V14-C1S-S/R4IP8 1407908 PHOENIX CONTACT RJ45 connector
CUC-V14-C1S-S/R4IP8
1407908
PHOENIX_CONTACT
RJ45 connector
RJ45 plug-in connector, protection rating: IP65/IP67, number of poles: 8, 1 GBit/s, CAT5 (IEC11801:2002), material: Stainless steel, connection type: IDC quick connect, connection cross-section: AWG 23-22, cable outlet: straight
Data and telecommunication > Modular connector
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1407908 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356782104 |
| Weight per Piece (excluding packing) | 107.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Standards/specifications | IEC 61076 |
|---|---|
| Number of positions | 8 |
| Connection profile | RJ45 |
| Locking type | Push Pull |
| Connection method | IDC fast connection |
| Conductor cross section | 0.23 mm² ... 0.32 mm² (solid) |
| 0.23 mm² ... 0.36 mm² (flexible) | |
| Connection cross section AWG | 23 ... 22 (solid) |
| 23 ... 22 (flexible) | |
| Max. cable diameter | 5.5 mm ... 10 mm |
| External cable diameter | 5.5 mm ... 10 mm |
| Cable outlet | straight |
| Degree of protection | IP65/IP67 |
| Type | Version 14 |
| No. of cable outlets | 1 |
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 3.01, Order No. 2252 |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 80 °C |
|---|---|
| Ambient temperature (assembly) | -10 °C ... 40 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Stainless steel 1.4404 |
| Contact carrier material | PC |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
| Seal material | NBR |
| Height | 34 mm |
Electrical characteristics
| Number of positions | 8 |
|---|---|
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| GRP transmission properties | CAT5 (IEC 11801:2002) |
| Transmission speed | 1 Gbps |
| Frequency range | to 100 MHz |
| Rated current | 1.75 A |
| Overvoltage category | I |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 72 V (DC) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027189239eCl@ss 5.127189239eCl@ss 6.027144001eCl@ss 7.027144001eCl@ss 8.027440101eCl@ss 9.027440101
