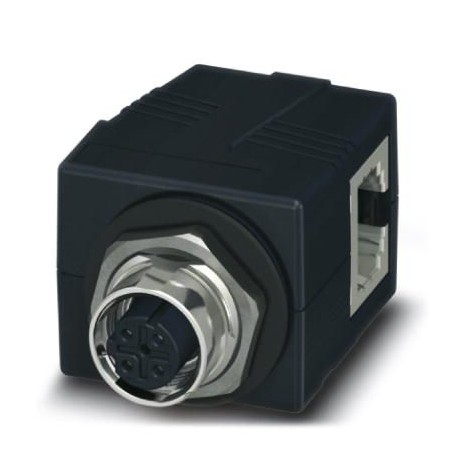

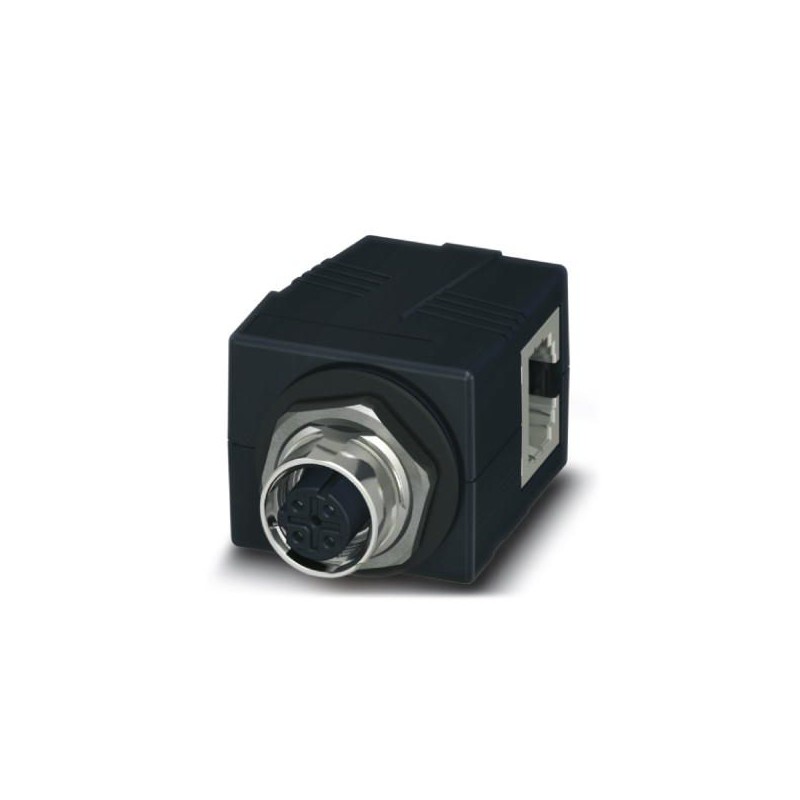

CUC-BH-M12D1PBK-A/R4BE 1414397 PHOENIX CONTACT Control cabinet feed-through
CUC-BH-M12D1PBK-A/R4BE
1414397
PHOENIX_CONTACT
Control cabinet feed-through
Control cabinet feedthrough, M12, 4 poles, D-coded in RJ45 female connector, female input: 90°, IP65/67
Data and telecommunication > Fibre optic attenuator
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1414397 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 347 (C-2-2017) |
| GTIN | 4055626166742 |
| Weight per Piece (excluding packing) | 34.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 4 |
|---|---|
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 100 |
| Cable outlet | angled |
| Color | black |
| Mounting type | Rear mounting |
| Degree of protection | IP65/IP67 |
| Type | Angled |
Electrical characteristics
| Number of positions | 4 |
|---|---|
| Nominal voltage UN | 60 V |
| Nominal current IN | 0.5 A |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| GRP transmission properties | Ethernet CAT5 (IEC 11801:2002) CAT5 (IEC 11801:2002) |
| Transmission speed | 100 Mbps |
| Rated current | 1.75 A |
| Rated voltage (III/3) | 72 V (DC) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Operating temperature (EF002393) | -25 °C |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Colour (EF000007) | Black |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
