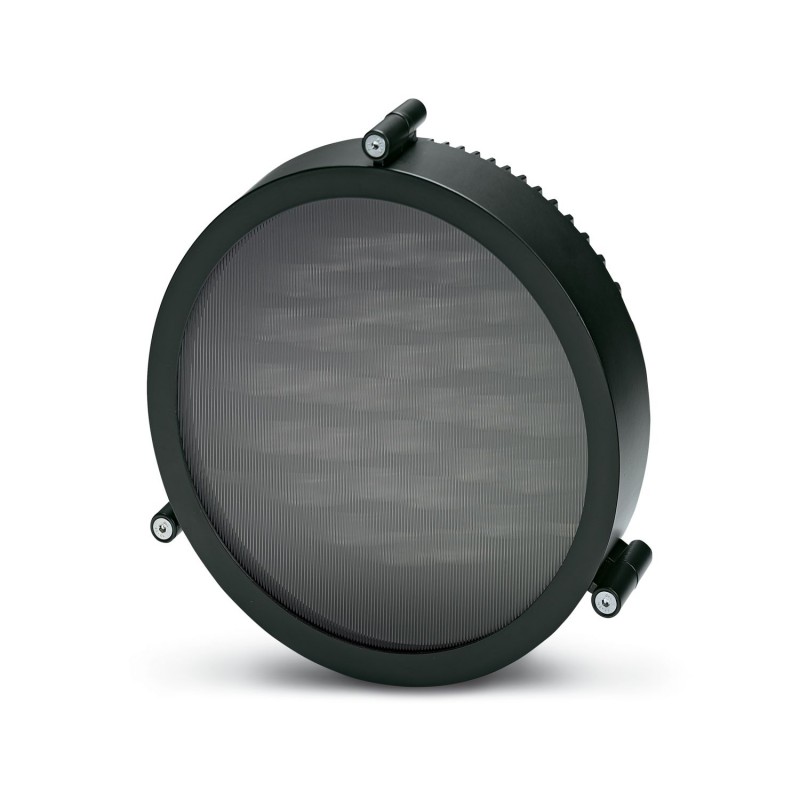

CSD-SL 300 WH 8X8 1002733 PHOENIX CONTACT Signal lamp
CSD-SL 300 WH 8X8
1002733
PHOENIX_CONTACT
Signal lamp
Signal light, 24 VDC, IALA white Optimum, emission angle: 8 °, diameter: 272 mm, protection index: IP65/IP67, Communication interface
Signal light, 24 V DC, IALA white, optimum, emission angle (vertical/Horizontal): 8 °/8 °, diameter: 272 mm, degree of protection: IP65/IP67, Communication interface
Optical and acoustic signalling equipment > Monitored LED indicator luminaire
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Note on application | |
| Note on application | Only for industrial use |
| Product type | Signaling light |
| Application | Maritime navigation |
| Transportation infrastructure | |
| Design | Operating hours counter |
| Special properties | Communication interface |
| Diagnostics messages | LEDs; temperature, current, voltage, etc. yes |
| Mains failure, communication failure Failsafe | |
| Light color | IALA white, optimum |
| General | |
| Inrush current | max. 36 A (µ-sec-pulse) |
| Supply: Module electronics | |
| Connection method | M17 hybrid connectors with SPEEDCON locking system |
| Number of positions | 8 |
| Supply voltage | 24 V DC (DC) |
| Current consumption | max. 2.51 A (white LEDs) |
| Power consumption | max. 70 W (white LEDs) |
| Connection method | M17 hybrid connectors with SPEEDCON locking system |
| Light properties | |
| Source of light type | LED |
| Number of LEDs | 30 (in accordance with IALA recommendation E200-1 and CIE 1931) |
| Light color | IALA white, optimum |
| Color temperature | 5000 K ±1000 K |
| Color class | C2 (EN 12966) |
| Luminance | L3 (EN 12966) |
| Luminance ratio | R3 (EN 12966) |
| Phantom light class | 5 (EN 12368) |
| Luminous intensity | 175429 Cd |
| Can be dimmed | Yes, in 256 steps |
| Emission angle | 8 ° |
| 8 ° | |
| Diagnostic messages | |
| Diagnostics | LEDs; temperature, current, voltage, etc. |
| Message | yes |
| Diagnostic messages | |
| Diagnostics | Mains failure, communication failure |
| Message | Failsafe |
| Depth | 68 mm |
| Diameter | 272 mm |
| Color | black (RAL 9005) |
| Material | Aluminum die-cast in accordance with DIN EN 1706 |
| Glass |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP65/IP67 (When installed) |
| Air pressure (operation) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Mounting type | Screw mounting |
| Assembly note | Use of stainless steel fittings (corrosion-resistant) |
