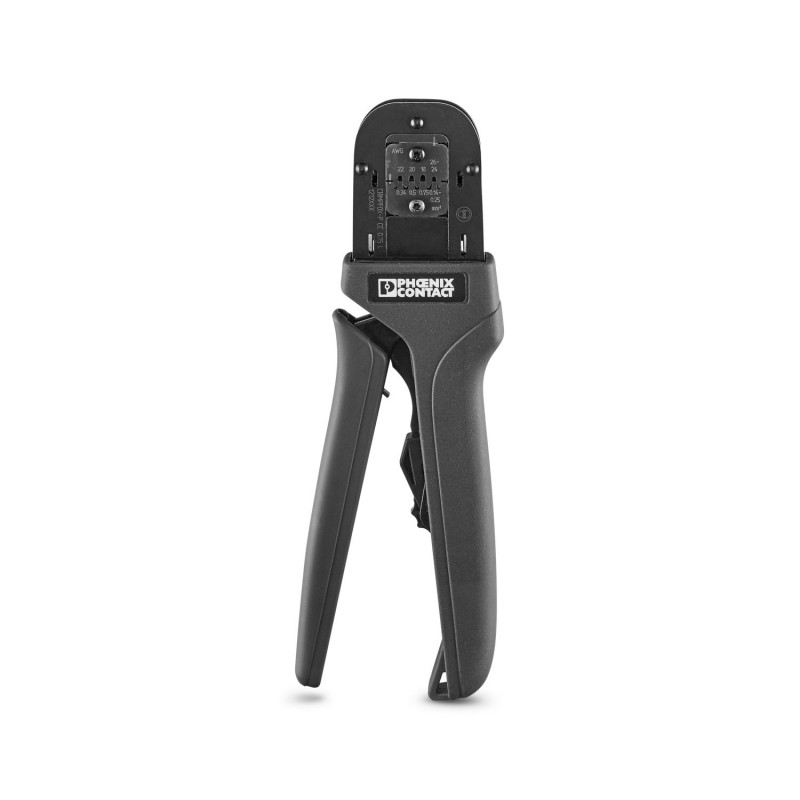

CRIMPFOX-P CK 1.6 ER 2.5 OIC-L 1069228 PHOENIX CONTACT Crimping pliers
CRIMPFOX-P CK 1.6 ER 2.5 OIC-L
1069228
PHOENIX_CONTACT
Crimping pliers
Crimp clamp, for stamped contacts CK 1,6-ER... OIC, cross-section: 0.14 ... 2.5 mm². Unlockable forced lock, precise parallel crimping, front insertion, B crimp, incl. positioning aid
Tools (Press, cut and isolate) > Crimp tool cable lugs, cable end sleeves, screen connection
TOOL fox
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1069228 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626743936 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 82032000 |
| Country of origin | SE (Sweden) |
General
| Compression | B crimp |
|---|---|
| Designation | Crimping position 1 |
| Min. cross section | 0.75 mm² |
| Max. cross section | 1 mm² |
| AWG max | 18 |
| Designation | Crimping position 2 |
| Max. cross section | 2.5 mm² |
| AWG max | 14 |
| Designation | Crimping position 3 |
| Max. cross section | 1.5 mm² |
| AWG max | 16 |
| Die station | Crimping position 4 |
| Min. cross section | 0.34 mm² |
| Max. cross section | 0.5 mm² |
| AWG min | 22 |
| AWG max | 20 |
| Weight | 450 g |
| Min. cross section | 0.14 mm² |
| Max. cross section | 2.5 mm² |
Classifications
| Feature Name | Feature Value |
|---|---|
| Cross section (EF003929) | 0.34 mm² |
| Length (EF001438) | 233 mm |
| With locking device (for mechanical tools) (EF001817) | Yes |
| Construction/operation (EF001462) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 47 Mbytes |
|
