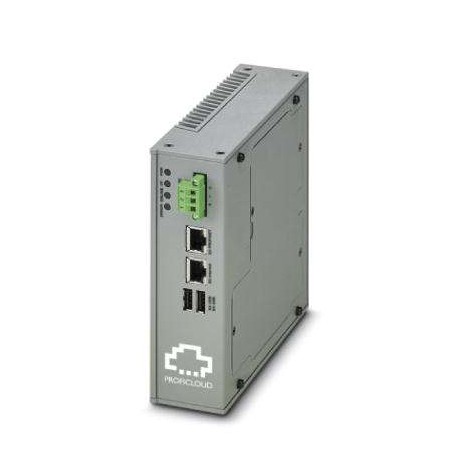

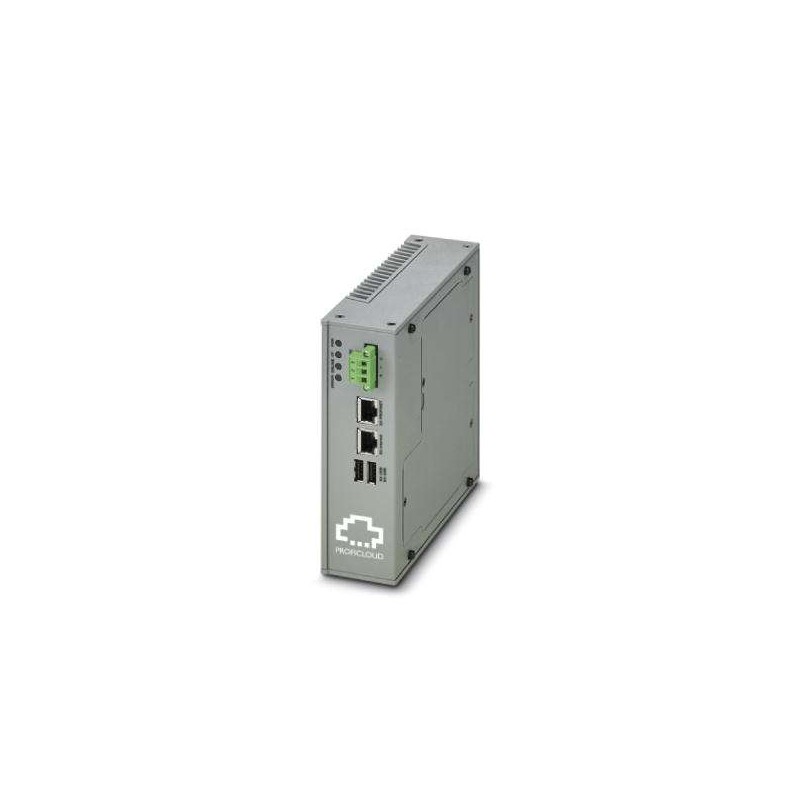

CLOUD COUPLER-PRO 2402990 PHOENIX CONTACT Cloud coupler
CLOUD COUPLER-PRO
2402990
PHOENIX_CONTACT
Cloud coupler
Cloud coupler for connecting the local PROFINET network to PROFICLOUD. This allows the use of PROFICLOUD services.
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2402990 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 8 (C-6-2017) |
| GTIN | 4055626196824 |
| Weight per Piece (excluding packing) | 1,819.400 g |
| Custom tariff number | 85176200 |
| Country of origin | TW (Taiwan) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Computer data
| Processor | Intel®Atom™ N455 1.66 GHz |
|---|---|
| Cooling | passive |
| Operating system | Linux |
| RAM | 2 GB DDR3 SODIMM |
| Mass storage | CompactFlash®, 2 GB |
| Network | 2x Ethernet (10/100/1000 Mbps), RJ45 |
| Interfaces | 2x USB 2.0 |
| Bus system | PROFINET |
| Realtime clock | Yes (battery-backed) |
| Service life of battery | 5 years (typical) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 5 % ... 95 % |
| Vibration (operation) | DIN EN 60068-2-6 |
| Shock | 15g, 11 ms in accordance with IEC 60068-2-27 |
Dimensions
| External dimension, width | 155 mm |
|---|---|
| External dimension, height | 145 mm |
| External dimension, depth | 49 mm |
Standards and Regulations
| Shock | 15g, 11 ms in accordance with IEC 60068-2-27 |
|---|---|
| Vibration (operation) | DIN EN 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
