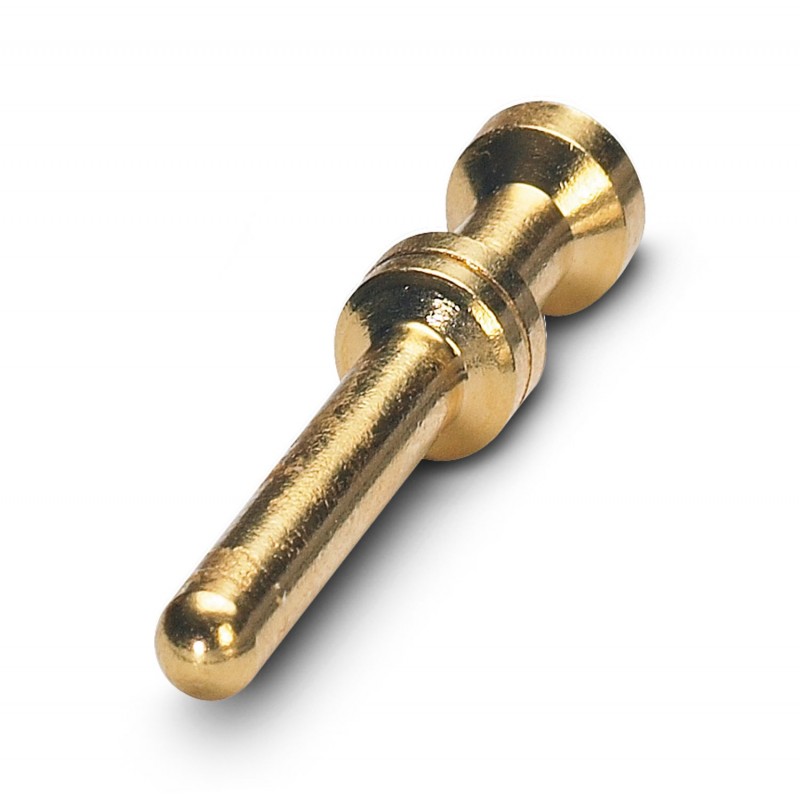

CK2,5-ED-0,37ST AU 1585663 PHOENIX CONTACT Contact set, type of connection: Connection is set, connection se..
CK2,5-ED-0,37ST AU
1585663
PHOENIX_CONTACT
100
Contact set, type of connection: Connection is set, connection section: AWG 22 - 26
Crimp contact, contact diameter: 2.5 mm, machined, Male, contact material: Copper alloy, contact surface: gold, connection cross-section: 0.14 mm² ... 0.37 mm², AWG 22 ... 26
Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.14 mm2 ... 0.37 mm2, AWG 22 ... 26
Connectors > Contact for industrial connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | for HC-M-06..., HC-M-HV-, HC-M-08-, HC-M-20-, HC-A..., HC-B..., HC-BB..., HC-BBB..., and HC-HV contact carriers |
| Assembly note | At voltages of < 5 V and currents < 5 mA, gold-plated contacts are recommended. |
| The quality of a crimp connection is determined by DIN EN 60352-2. |
| Product type | Crimp contact |
| Series | HC-M-06 |
| HC-M-HV | |
| HC-M-08 | |
| HC-A | |
| HC-BB | |
| HC-B | |
| HC-HV | |
| HC-M-20 | |
| HC-K | |
| HC-BBB | |
| Type | Individual male contact |
| Contact material type | turned |
| Data management status | |
| Article revision | 04 |
| Connection method | Crimp connection |
| Contact connection type | Pin |
| Connection technology | Crimp connection |
| Conductor cross section | 0.14 mm² ... 0.37 mm² |
| Connection cross section AWG | 22 ... 26 |
| Stripping length of the individual wire | 7.5 mm (9.5 mm at HC-M-HV...) |
| Contact material | Copper alloy |
| Contact surface material | gold-plated |
| Mechanical characteristics | |
| Contact diameter | 2.5 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Ambient temperature (EF002386) | 125 °C |
| Type of electric connection (EF003961) | Crimp connection |
| Diameter plug-in contact (EF007320) | 2.5 mm |
| Material contact (EF007544) | Copper |
| Material of contact surface (EF004020) | Gold |
| Min. number of insertion cycles (EF012212) | 500 |
