View larger

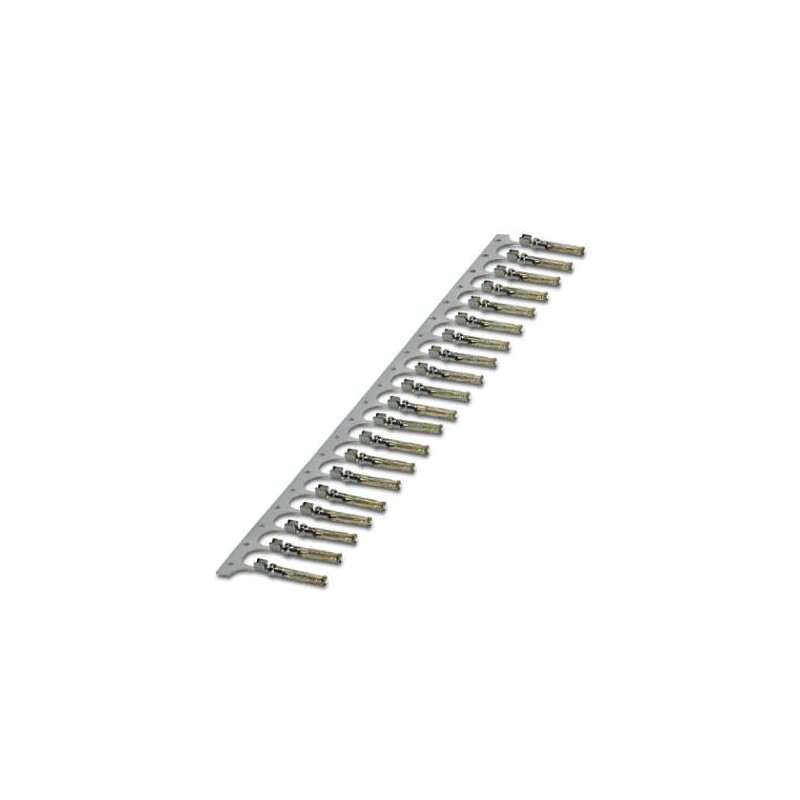

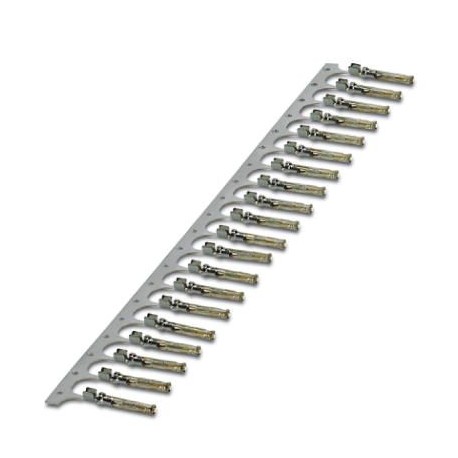

CK1,6-BR-1,00BU OIC AG 1004381 PHOENIX CONTACT Crimp contact
CK1,6-BR-1,00BU OIC AG
1004381
PHOENIX_CONTACT
7000
Crimp contact
Connectors > Contact for industrial connectors
Industrial plug-in connectors/interfaces
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1004381 |
|---|---|
| Packing unit | 7000 pc |
| Minimum order quantity | 7000 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626472577 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85369010 |
| Country of origin | TR (Turkey) |
Mechanical characteristics
| Conductor cross section | 0.34 mm² ... 1 mm² |
|---|---|
| Connection cross section AWG | 22 ... 17 |
| Stripping length of the individual wire | 4 mm |
| Contact diameter | 1.6 mm |
| Insertion/withdrawal cycles | ≥ 50 |
General
| Note | For use only in Phoenix Contact contact insert designs: HC-DD…-I-CT, HC-M-12-CT, HC-M-17-CT, HC-D7-I-CT, HC-D8-I-CT, HC-Q07-I-CT, HC-Q12-I-CT |
|---|---|
| Type | Female contact for taped products |
| Connection method | Crimp connection |
| Contact type | rolled |
| Assembly instructions | max. crimping speed for 1 mm² corresponds to a cycle time of 1 second |
| Connection | A tool for automatically processing these contacts on crimping devices can be obtained from U.Kolb GmbH, Neuer Weg 32, 71111 Waldenbuch, Germany, [email protected], Tel. +49-(0)7151-7371-0. Order No.: 20.2001-1004380/4381, lubricant for crimp contacts: KNT200 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
