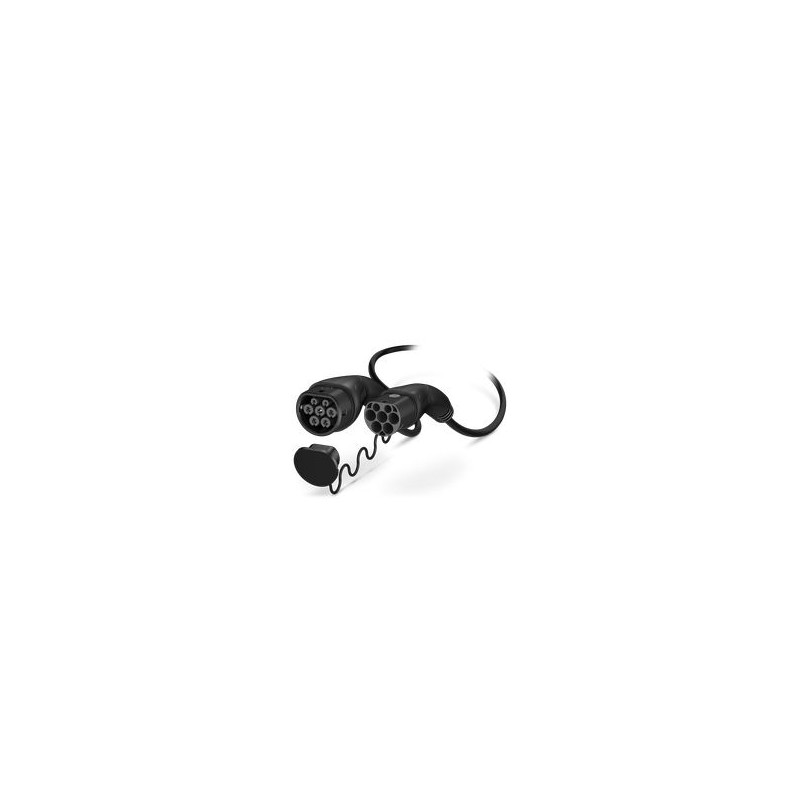

CHARX ET2CP-3AC32-7,5MES00P 1536267 PHOENIX CONTACT CHARX connect eco, Type 2, Mobile AC charging cable, 32 ..
CHARX ET2CP-3AC32-7,5MES00P
1536267
PHOENIX_CONTACT
80
CHARX connect eco, Type 2, Mobile AC charging cable, 32 A permanent, 480 V AC, with charging connectors for vehicles and infrastructures, cable: 7.5 m, black, straight, with cap, PHOENIX CONTACT logo, IEC 62196-2, for charging electric vehicles (EV) with alternating current (AC), The cap included in the delivery volume is placed on the vehicle charging connector, for which protection according to the rules is required.
CHARX connect, AC Charging Cables
CHARX connect eco, Mobile AC charging cable, with vehicle charging connector and infrastructure charging plug, for charging electric vehicles (EV) with alternating current (AC), with protective cap, Type 2, IEC 62196-2, 32 A / 480 V (AC), PHOENIX CONTACT logo, cable: 7.5 m, black, straight, The protective cap included in the scope of delivery is plugged onto the vehicle charging connector for which protection is required by standard.
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | The protective cap included in the scope of delivery is plugged onto the vehicle charging connector for which protection is required by standard. |
| Product type | AC charging cable |
| Product family | CHARX connect eco |
| Application | for charging electric vehicles (EV) with alternating current (AC) |
| compatible with type 2 infrastructure charging sockets at charging stations for electromobility (EVSE) | |
| Type | Mobile AC charging cable |
| with vehicle charging connector and infrastructure charging plug | |
| Design | with protective cap |
| Affixed logo | PHOENIX CONTACT logo |
| Charging mode | Mode 3, Case B |
| Charging standard | Type 2 |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Coding | 220 Ω (between PE and PP) |
| Type of charging current | AC 3-phase |
| Charging power | 26.6 kW |
| Charging current | 32 A |
| Power contact | |
| Number | 5 (L1, L2, L3, N, PE) |
| Rated voltage | 480 V AC |
| Rated current | 32 A |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Cross section AWG | (converted acc. to IEC) |
| Width | 57 mm |
| Height | 77.5 mm |
| Depth | 193.3 mm |
| Vehicle charging connector | |
| Dimensional drawing |  |
| Width | 70.4 mm |
| Height | 82.3 mm |
| Depth | 201.8 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | black (9005) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | TPE-U |
| Material (Contact surface) | Silver |
| Cable length | 7.5 m |
| Cable weight | max. 374 kg/km |
| Cable type | straight |
| Cable structure | 5 x 4.0 mm² + 1 x 0.5 mm² |
| External cable diameter | 14.2 mm ±0.3 mm |
| Outer sheath, material | TPE-U |
| Cable resistance | ≤ 0.00425 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 113.6 mm (8x diameter) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
| Ambient conditions | |
| Degree of protection (Vehicle charging connector) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Degree of protection (Infrastructure charging plug) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Degree of protection (Protective cap) | IP54 |
| Ambient temperature (operation) | -40 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | max. 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-2 |
| Feature Name | Feature Value |
|---|---|
| Type of current (EF000143) | AC 3-phase |
| Number of communication conductors (EF009317) | 2 |
| Type vehicle side (EF009318) | Type 2 |
| Type infrastructure side (EF009319) | Type 2 |
| With Incable Control Box (ICCB) (EF009320) | No |
| Charging mode (EF009321) | Mode 3 |
| Nominal current (EF000001) | 32 A |
| Nominal voltage (EF000002) | 480 V |
| With temperature sensor (EF006034) | No |
| Cable length (EF000536) | 7.5 m |
| Cable type (EF000081) | Straight |
| Contact material (EF004019) | Other |
| Surface treatment contacts (EF002558) | Other |
