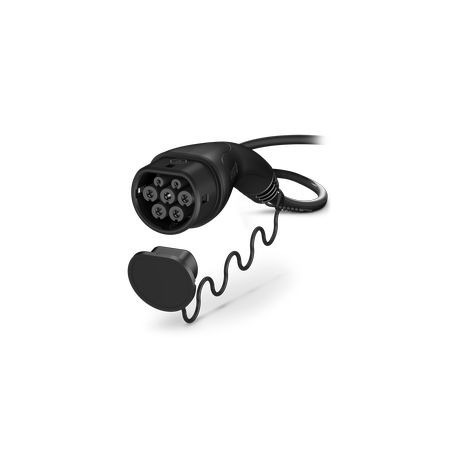

CHARX ET2C-1AC32-5,0MES-C1L1 1513797 PHOENIX CONTACT CHARX connect, AC Charging Cables
CHARX ET2C-1AC32-5,0MES-C1L1
1513797
PHOENIX_CONTACT
192
CHARX connect, AC Charging Cables
CHARX connect eco, AC Charging Cable, with Vehicle Charging Connector and Open Cable End, for Charging Electric Vehicles (EVs) with Alternating Current (AC), With Cap, Type 2, IEC 62196-2, 32 A / 250 V (AC), PHOENIX CONTACT Logo, Cable: 5 m, Black, Straight
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| Product Type | AC Charging Cables |
| Product Family | CHARX connect eco |
| application | for charging electric vehicles (EVs) with alternating current (AC) |
| compatible with Type 2 infrastructure charging sockets at charging stations for electromobility (EVSE) | |
| Execution | AC Charging Cable |
| with vehicle charging connector and open cable end | |
| Components | With cap |
| Logo Placed | PHOENIX CONTACT logo |
| Charging Mode | Mode 3, Case C |
| Charging Standard | Type 2 |
| Type of Signal Transmission | Pulse Duration Modulation |
| Note about the connection type | Crimped, non-detachable connection |
| Codification | 220 Ω (between PE and PP) |
| Charging Current Type | Single-phase AC |
| Charging power | 8 kW |
| Charging current | 32 A |
| Power Contact | |
| Number | 3 (L1, N, PE) |
| Nominal voltage | 250 V AC |
| Rated Current | 32 A |
| Notification Contact | |
| Number | 2 (CP, PP) |
| Nominal voltage | 30 V AC |
| Rated Current | 2 A |
| Vehicle Charging Connector | |
| Dimension Scheme |  |
| Width | 70.4 mm |
| Height | 82.3 mm |
| Depth | 201.8 mm |
| Color (Housing) | Black (9005) |
| Color (Grip Zone) | Black (9005) |
| Color (Plug-in Face) | Black (9005) |
| Color (Cap) | Black (9005) |
| Color (Wires) | Black (9005) |
| Material (Vehicle Charging Connector) | Plastic |
| Material (Cable Outer Sheath) | TPE-U |
| Material (Surface contacts) | Silver |
| Cable length | 5 m |
| Cable Standards/Specifications | prEN 50620/DIN EN 50620 |
| Cable Certifications | VDE |
| Cable Weight | max. 242 kg/km |
| Cable type | Class 5 |
| Cable type | straight |
| Cable Structure | 3 x 4.0 mm² + 1 x 0.5 mm² |
| Cable Outer Diameter | 11.5 mm ±0.3 mm |
| Outer Wrap, Material | TPE-U |
| Line Resistance | ≤ 0.00425 Ω/m (compared to a power cable, at an ambient temperature of 20 °C) |
| Bending radius | min. 92 mm (8x diameter) |
| Mechanical data | |
| Plug Cycles | > 10000 |
| Insertion Force | < 100 N |
| Separation Force | < 100 N |
| Environmental conditions | |
| Protection Rating (Vehicle Charging Connector) | IP44 (plugged in, the protection rating in operating and plugged in can only be guaranteed if both connection elements are original Phoenix Contact products or equivalent standard products) |
| Protection Index (Cap) | IP54 |
| Ambient Temperature (Service) | -40 °C ... 50 °C |
| Ambient Temperature (Storage/Transport) | -40 °C ... 80 °C |
| Altitude | max. 5000 m (above sea level) |
| Standards | |
| Standards/Specifications | IEC 62196-2 |
