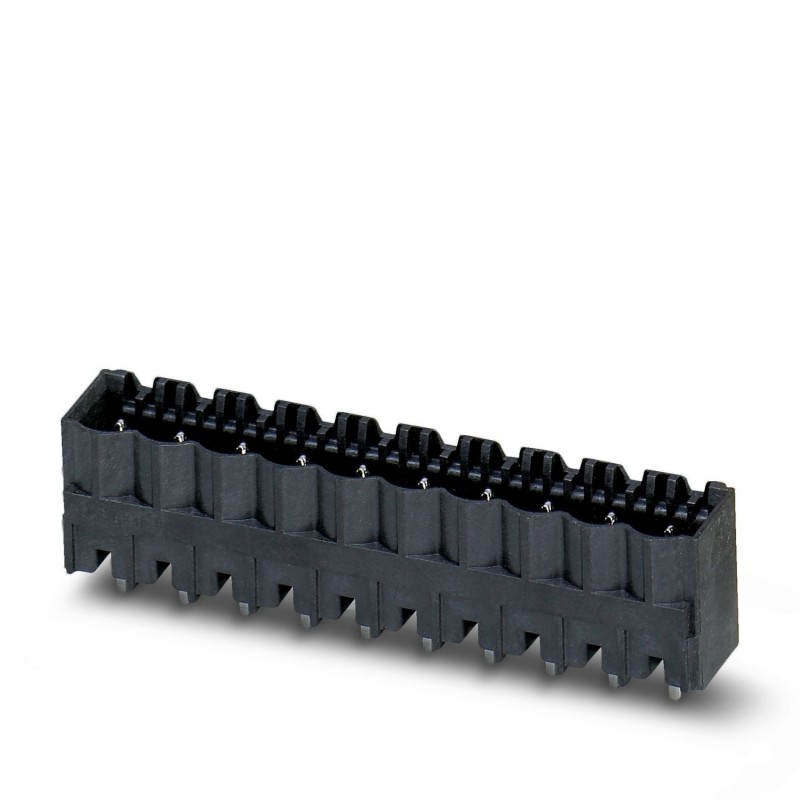

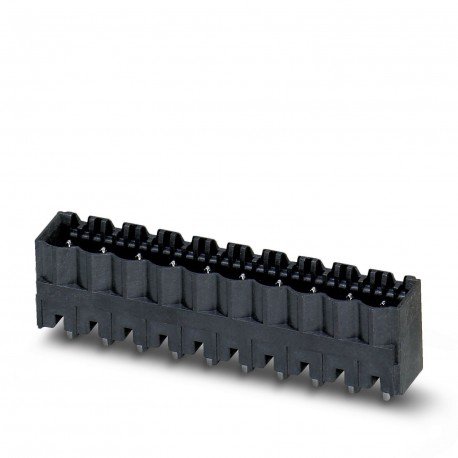

CCVA 2,5/ 8-G-5,08P14THRR56 1070716 PHOENIX CONTACT Feed-through header CCVA 2,5/ 8-G-5,08P14THRR56 1070716
CCVA 2,5/ 8-G-5,08P14THRR56
1070716
PHOENIX_CONTACT
140
Feed-through header - CCVA 2,5/ 8-G-5,08P14THRR56 - 1070716
Connectors > Printed circuit board connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲PCB headers, number of positions: 8, pitch: 5.08 mm, color: black
Key Commercial Data
| Orderkey | 1070716 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626750828 |
| Custom tariff number | 85366930 |
Dimensions
| Length [ l ] | 8.6 mm |
|---|---|
| Width | 43.44 mm |
| Pitch | 5.08 mm |
| Dimension a | 35.56 mm |
| Width [ w ] | 43.44 mm |
| Height [ h ] | 13.4 mm |
| Height | 12 mm |
| Length of the solder pin | 1.4 mm |
| Length | 8.6 mm |
General
| Range of articles | CCVA 2,5/..-G |
|---|---|
| Color | black |
| Number of positions | 8 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27260700 |
|---|---|
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440402 |
| eCl@ss 8.0 | 27440402 |
| eCl@ss 9.0 | 27440402 |
ETIM
| ETIM 5.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
