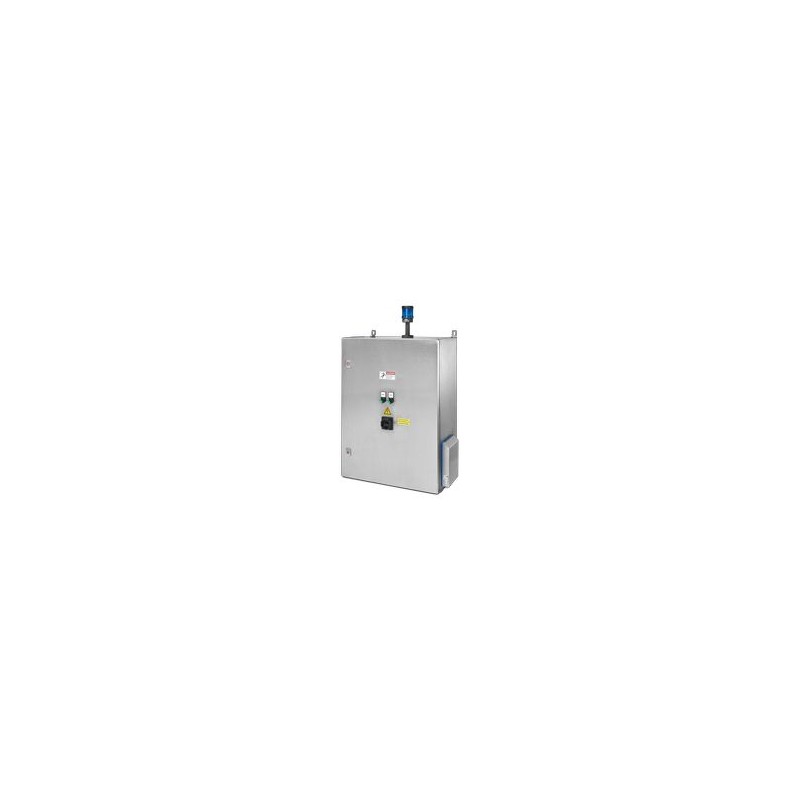

CBL-SEB-14P-V-CE/UL-SL 1495004 PHOENIX CONTACT Modular switchgear set for production networks, with firewall..
CBL-SEB-14P-V-CE/UL-SL
1495004
PHOENIX_CONTACT
Modular switchgear set for production networks, with firewall function for secure network segmentation, local data storage, web visualization and cloud connection, with sheet steel housing. Possibility to integrate Machine Learning through the PLCnext App.
Modular switchgear and controlgear assembly for production networks, with firewall function for secure network segmentation, local data storage, web visualization, and cloud connection, with sheet-steel housing. Machine learning integration per PLCnext App possible.
Distribution boards > Cable entry cabinet
Industry Solutions (IS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Switchgear and controlgear assembly |
| Insulation characteristics | |
| Protection class | I |
| Nominal current IN | 1.66 A (100 V AC) |
| 0.94 A (240 V AC) | |
| Nominal power | 208 VA |
| Fuse | |
| Recommended backup fuse: | 16 A |
| AC supply voltage | |
| Type of cable entry | Cable gland |
| Cable cross section | 0.14 mm² ... 4 mm² (rigid/flexible) |
| External cable diameter | 6 mm ... 12 mm |
| Communication | |
| Type of cable entry | CES cable feed-through |
| External cable diameter | 2x 6 mm ... 7 mm |
| Ethernet | |
| Bus system | RJ45 |
| Number of interfaces | 14 (can be extended to max. 50) |
| Connection method | RJ45 jack |
| Transmission speed | 10/100 Mbps |
| Transmission length | max. 100 m (per segment) |
| External dimensions | |
| Width / Height / Depth | 600 mm / 800 mm / 300 mm (Housing dimensions without attachment parts) |
| Material | Sheet steel |
| Ambient conditions | |
| Degree of protection | IP54 |
| NEMA 1 | |
| Ambient temperature (operation) | 0 °C ... 40 °C |
| Permissible humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Air pressure (operation) | 70 kPa ... 106 kPa |
| CE | |
| Certificate | CE-compliant |
| UL, USA/Canada | |
| Identification | UL 508A |
| CSA C22.2 No. 14-2005 | |
| UL data | |
| Nominal supply voltage range | 85 V AC ... 264 V AC (50/60 Hz) |
| Feature Name | Feature Value |
|---|---|
| Frequency (EF005455) | Other |
| Degree of protection (IP) (EF005474) | IP54 |
| Ambient temperature (EF002386) | 0 °C |
