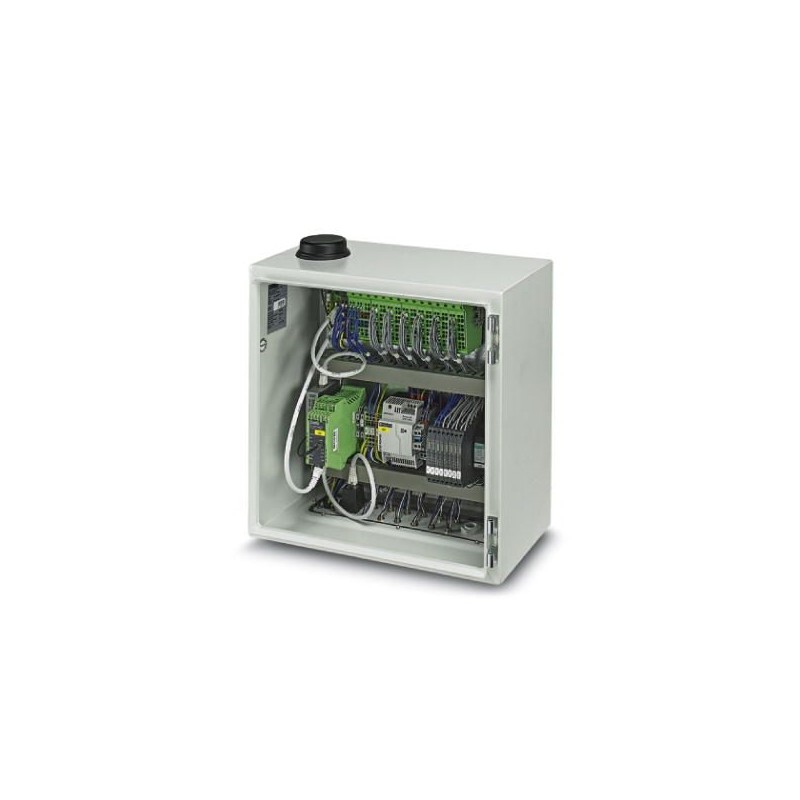

CBL-RBTM-TT 2701462 PHOENIX CONTACT Switching device combination
CBL-RBTM-TT
2701462
PHOENIX_CONTACT
Switching device combination
Industry Solutions (IS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2701462 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356755405 |
| Weight per Piece (excluding packing) | 12,200.000 g |
| Custom tariff number | 85371099 |
| Country of origin | DE (Germany) |
General data
| Material cover/door | Sheet steel (with all round PU foam seal, dip-primed, powder-coated on the outside, textured finish) |
|---|---|
| Weight | 12.6 kg |
| Installation location | Interior (wind turbine generator) |
| Degree of protection | IP65 |
| Protection class | I, IEC 61140, EN 61140, VDE 0140-1 |
Housing
| Housing material | Sheet steel (dip-primed, powder-coated on the outside, textured finish) |
|---|---|
| Material cover/door | Sheet steel (with all round PU foam seal, dip-primed, powder-coated on the outside, textured finish) |
| RAL color | 7035 light grey |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 45 °C |
|---|---|
| Ambient temperature (storage/transport) | -35 °C ... 45 °C |
| Shock (operation) | 30g |
| Shock (storage/transport) GRP | 30g |
| Vibration (operation) | 2.3g |
Dimensions
| Outer dimensions: width, height, depth | 380 mm x 380 mm x 210 mm (without housing feed-throughs) |
|---|---|
| 334 mm x 355 mm x 2 mm (Mounting plate dimensions) |
Technical characteristics
| Nominal power | approx. 69 W (for 230 V AC) |
|---|---|
| approx. 14.4 W (at 24 V DC) | |
| Nominal current IN | approx. 0.3 A (for 230 V AC) |
| approx. 6 A (at 120 V AC) | |
| approx. 0.6 A (at 24 V DC) | |
| Nominal voltage UN | 230 V AC (1/N/PE) |
| Output voltage | 24 V DC |
| Control voltage | 24 V DC |
| Protection | 500 mA (normal blow) |
| Recommended backup fuse | 16 A (Characteristic B, 1-pos.) |
Classifications
eCl@ss 4.027248002eCl@ss 4.127248002eCl@ss 5.027242501eCl@ss 5.127242500eCl@ss 6.027242500eCl@ss 7.027142422eCl@ss 8.027142422eCl@ss 9.027142422
