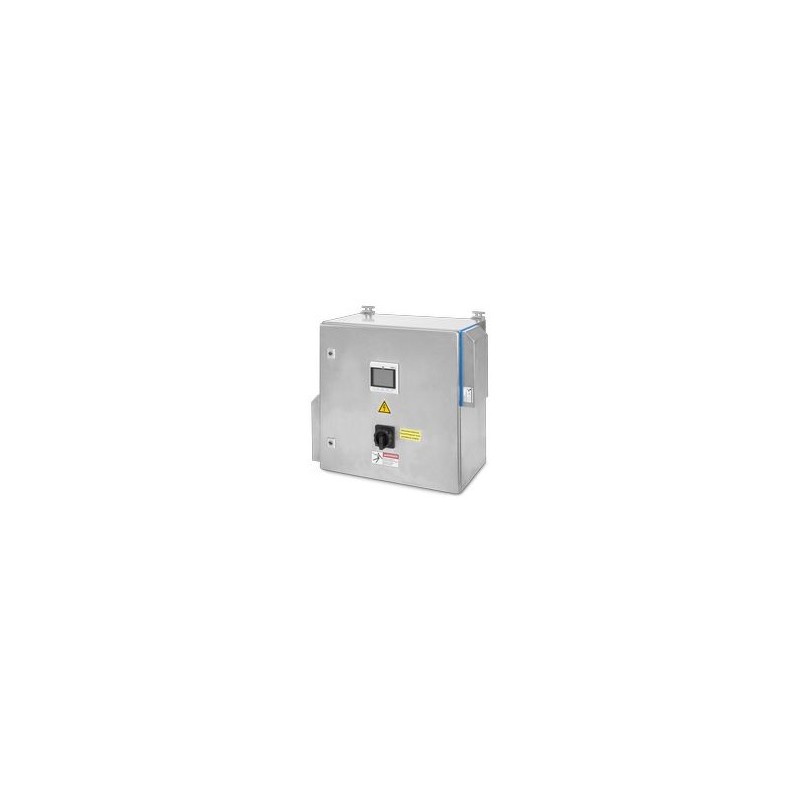

CBL-DCB-PLC-3R-EEM-CE/UL-SS 1473597 PHOENIX CONTACT Modular switchgear set for recording and processing sign..
CBL-DCB-PLC-3R-EEM-CE/UL-SS
1473597
PHOENIX_CONTACT
Modular switchgear set for recording and processing signal and measurement values, with stainless steel sheet housing, integrated energy meter and current measurement using Rogowski coils (included). Suitable for use in Greenfield and Brownfield installations.
Modular switchgear and controlgear assembly for acquiring and processing signal and measured values, with stainless steel housing, integrated energy measuring device, and current measurement via Rogowski coils (included in delivery). Suitable for use in greenfield and brownfield systems.
Low-voltage control systems > AC transfer system
Industry Solutions (IS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Switchgear and controlgear assembly |
| Insulation characteristics | |
| Protection class | I |
| Control voltage | 24 V DC |
| Nominal current IN | 1.3 A (100 V AC) |
| 0.6 A (240 V AC) | |
| Nominal power | 153 VA |
| Fuse | |
| Recommended backup fuse: | 16 A |
| Type of cable entry | CES cable feed-through |
| External cable diameter | 2x 6 mm ... 7 mm (small sleeve) |
| AC supply voltage | |
| Type of cable entry | CES cable feed-through |
| Cable cross section | 0.14 mm² ... 4 mm² (solid) |
| Signals | |
| Type of cable entry | CES cable feed-through |
| Cable cross section | 0.25 mm² ... 1.5 mm² |
| Measurement connection | |
| Type of cable entry | CES cable feed-through |
| Cable cross section | 0.2 mm² ... 6 mm² (solid) |
| Other connections | |
| Type of cable entry | CES cable feed-through |
| Cable cross section | 0.14 mm² ... 4 mm² (rigid/flexible) |
| External dimensions | |
| Width / Height / Depth | 500 mm / 500 mm / 300 mm (Housing dimensions without attachment parts) |
| Material | Stainless steel |
| Ambient conditions | |
| Degree of protection | IP54 |
| NEMA 12 | |
| Ambient temperature (operation) | 0 °C ... 40 °C |
| Permissible humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Air pressure (operation) | 70 kPa ... 106 kPa |
| CE | |
| Certificate | CE-compliant |
| UL, USA/Canada | |
| Identification | UL 508A |
| CSA C22.2 No. 14-2005 | |
