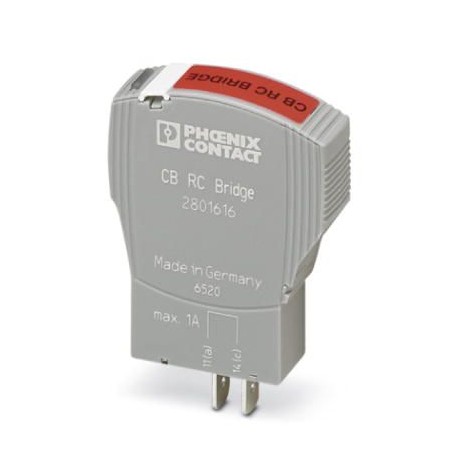

CB RC BRIDGE 2801616 PHOENIX CONTACT Jumper
CB RC BRIDGE
2801616
PHOENIX_CONTACT
Jumper
Bridge tab for bridging contacts 11 to 14 for CB base elements
Terminal blocks > Cross-connector for terminal block
Over Current Protection
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | Bridge |
| Type | Male |
| Data management status | |
| Article revision | 00 |
| Auxiliary contact | |
| Maximum operating voltage UmaxDC | 80 V DC |
| Maximum operating voltage Umax.AC | 277 V AC |
| Max. operating current Imax | 1 A |
| Connection method | Spade connection |
| Width | 12.3 mm |
| Height | 45 mm |
| Depth | 52 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Plastic |
| Mechanical data | |
| Open side panel | No |
| Ambient conditions | |
| Degree of protection | IP30 (Actuation area) |
| IP00 (Connection area) | |
| Ambient temperature (operation) | -30 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Standards/specifications | IEC 60068-2 |
| Standards/specifications | IEC 60664-1 |
| Mounting type | on base element |
| Feature Name | Feature Value |
|---|---|
| Explosion-tested version 'Ex e' (EF008498) | No |
| Colour (EF000007) | Grey |
