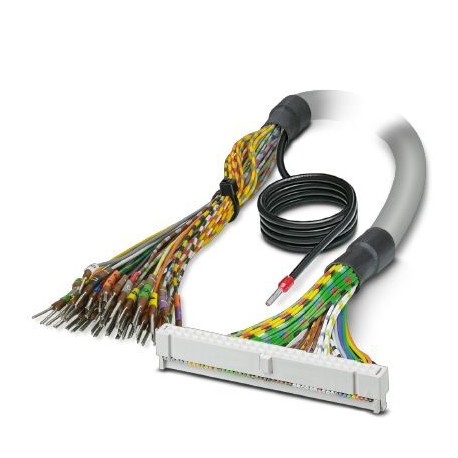

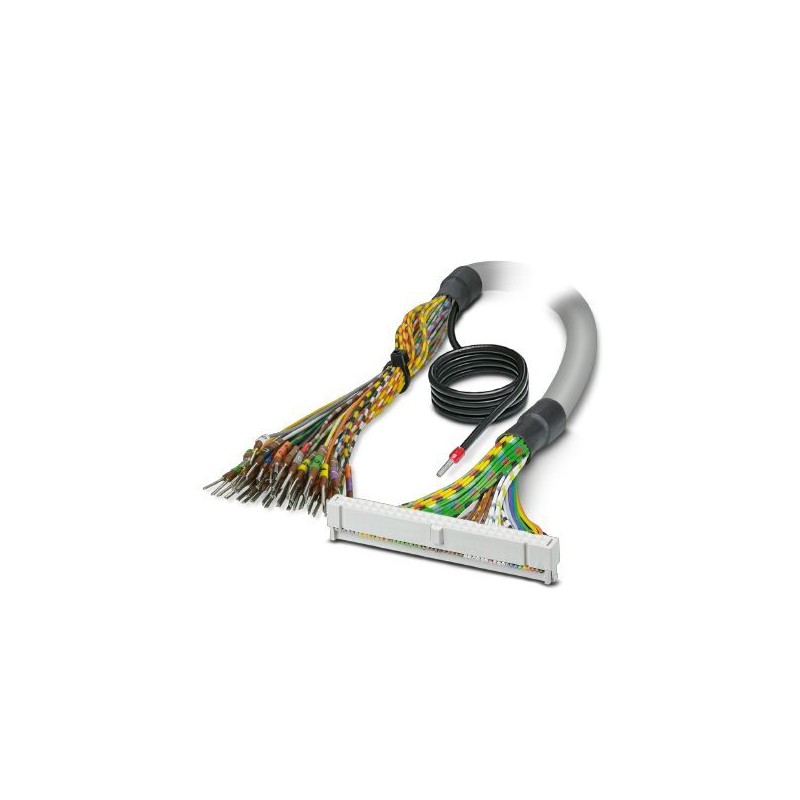

CABLE-FLK50/OE/0,14/4000/S 2909786 PHOENIX CONTACT Assembled shielded round cable connection 1: IDC/FLK sock..
CABLE-FLK50/OE/0,14/4000/S
2909786
PHOENIX_CONTACT
10
Assembled shielded round cable; connection 1: IDC/FLK socket strip (1x 50-position); connection 2: Single wires (50-position) (The wires are marked and fitted with ferrules.); cable length: 40 m
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Assembled shielded round cable; connection 1: IDC/FLK socket strip (1x 50-position); connection 2: Single wires (50-position) (The wires are marked and fitted with ferrules.); cable length: 40 m
Key Commercial Data
| Orderkey | 2909786 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626380735 |
| Custom tariff number | 85444290 |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Degree of protection | IP00 |
| Degree of protection at installation location | ≥ IP54 |
General
| Max. permissible operating voltage | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 1 A |
| Length of cable | 40 m |
| External cable diameter | 11 mm |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Single wire, material | Cu tin-plated |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | yes |
| Tinned copper-braided shield, approx. 85% covering | |
| Outer sheath, material | PVC |
| External sheath, color | gray RAL 7035 |
| Degree of protection | IP00 |
| Degree of protection at installation location | ≥ IP54 |
Connection data
| Connection name | Field level |
|---|---|
| Connection method | Single wires |
| Number of positions | 50 |
| Note | The wires are marked and fitted with ferrules. |
Connection data 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 50 |
Standards and Regulations
| Flame resistance | IEC 60332-1-2 |
|---|---|
| IEC 60332-3-22 | |
| UL VW-1 | |
| CSA FT-1 | |
| Resistance to oil | against occasional splashes |
| Gasoline resistance | against occasional splashes |
| Designation | Air clearances and creepage distances |
| Standards/regulations | DIN EN 50178 |
| Insulation | Functional insulation |
Supported controller
| Controller | universal |
|---|
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27242200 |
|---|---|
| eCl@ss 6.0 | 27249200 |
| eCl@ss 7.0 | 27249205 |
| eCl@ss 8.0 | 27249205 |
| eCl@ss 9.0 | 27242220 |
ETIM
| ETIM 2.0 | EC000237 |
|---|---|
| ETIM 3.0 | EC000237 |
| ETIM 4.0 | EC000237 |
| ETIM 5.0 | EC000237 |
| ETIM 6.0 | EC000237 |
| ETIM 7.0 | EC000237 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
