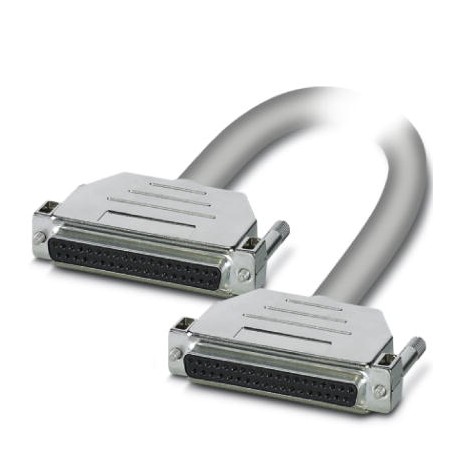

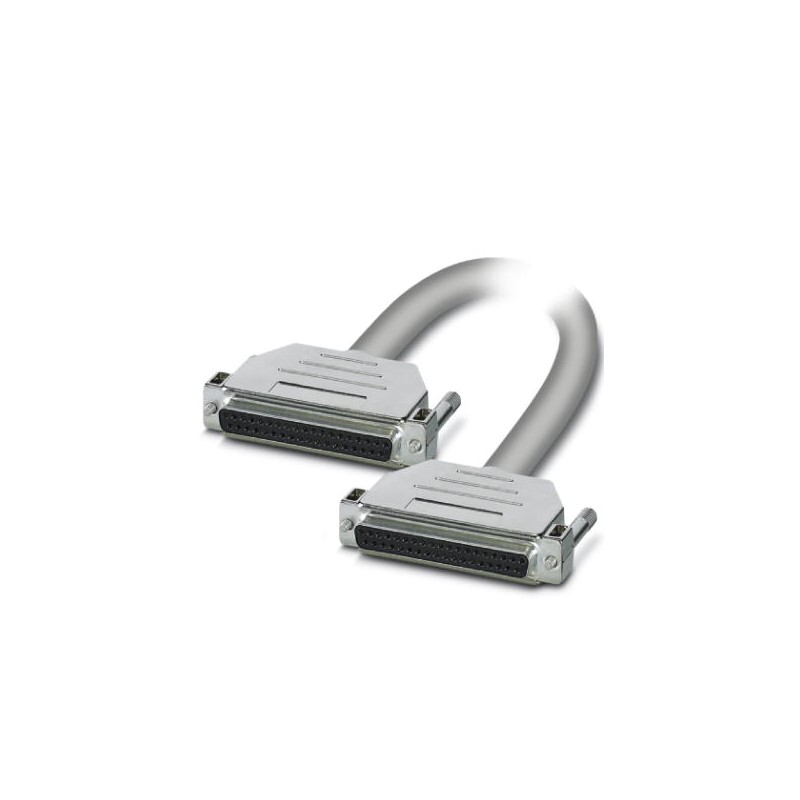

CABLE-D37SUB/B/B/HF/S/ 6,0M
2908520
PHOENIX_CONTACT
1
Cable
Made-up round cable, shielded and halogen-free; Connection 1: D-SUB connection female (1x 37-poles); Connection 2: D-SUB connection female (1x 37-poles); Cable length: 6 m
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2908520 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
Catalog page | Page 593 (C-5-2017) |
GTIN | 4055626305998 |
Weight per Piece (excluding packing) | 0.000 g |
Custom tariff number | 85444290 |
Country of origin | DE (Germany) |
Nominal voltage UN | 25 V AC |
---|---|
60 V DC | |
Max. current carrying capacity per path | 2 A |
Max. conductor resistance | ≤ 0.09 Ω/m |
Length of cable | 6 m |
Single wire, cross section | 0.25 mm² |
Single wire, cross section [AWG] | 24 |
External diameter | 11.2 mm |
Shielding | yes |
Tinned copper braided shield | |
Insertion/withdrawal cycles | > 200 |
Ambient temperature (operation) | -20 °C ... 50 °C |
---|---|
Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Connection name | Field level |
---|---|
Connection method | D-SUB socket strip |
Screw thread | UNC 4-40 |
Torque | 0.2 Nm |
Number of connections | 1 |
Number of positions | 37 |
Connection name | Controller level |
---|---|
Connection method | D-SUB socket strip |
Screw thread | UNC 4-40 |
Torque | 0.2 Nm |
Number of connections | 1 |
Number of positions | 37 |
Standard designation | Flame retardancy |
---|---|
Standards/regulations | IEC 60332-3-22 |
DIN VDE 0482-266-2-2 | |
Standard designation | Halogen-free |
Standards/regulations | IEC 60754-1 |
DIN VDE 0482-267-1 | |
Standard designation | Concentration of fumes |
Standards/regulations | IEC 61034-2 |
Standard designation | Corrosiveness of fumes according |
Standards/regulations | IEC 60754-2 |
DIN VDE 0472-813 |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
