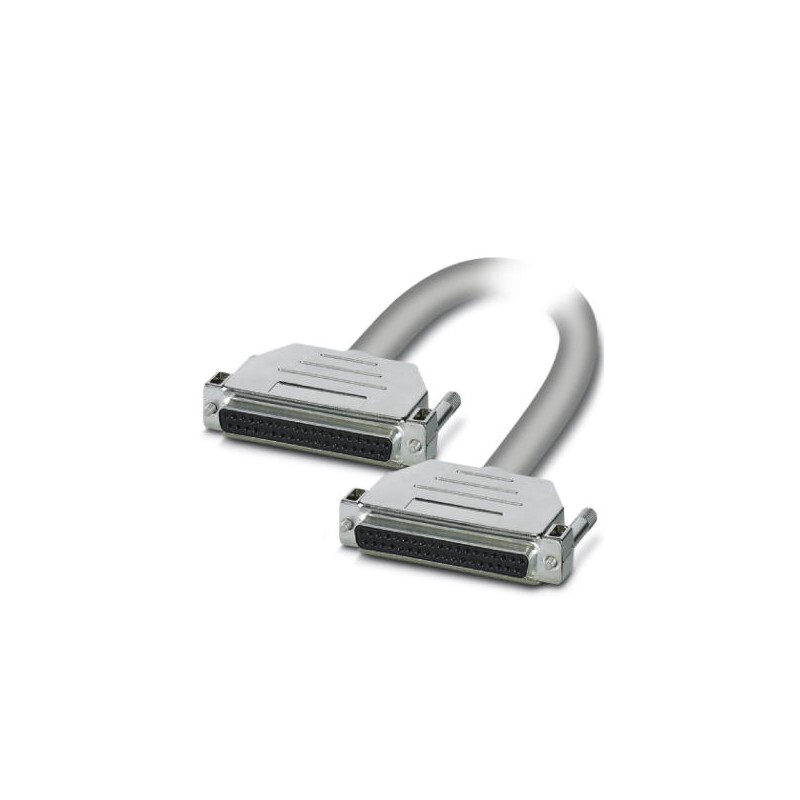

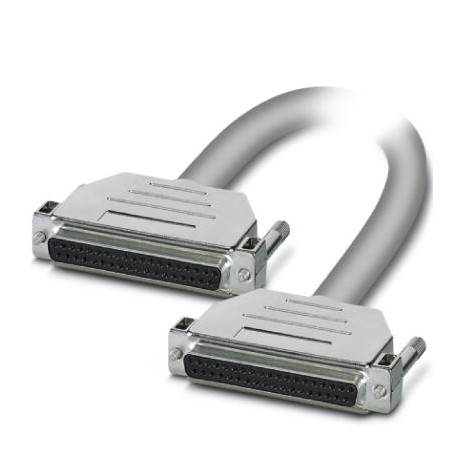

CABLE-D37SUB/B/B/HF/S/10,0M 2908522 PHOENIX CONTACT Cable
CABLE-D37SUB/B/B/HF/S/10,0M
2908522
PHOENIX_CONTACT
Cable
Made-up round cable, shielded and halogen-free; Connection 1: D-SUB connection female (1x 37-poles); Connection 2: D-SUB connection female (1x 37-poles); Cable length: 10 m
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2908522 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 593 (C-5-2017) |
| GTIN | 4055626306667 |
| Weight per Piece (excluding packing) | 2,071.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Nominal voltage UN | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 2 A |
| Max. conductor resistance | ≤ 0.09 Ω/m |
| Length of cable | 10 m |
| Single wire, cross section | 0.25 mm² |
| Single wire, cross section [AWG] | 24 |
| External diameter | 11.2 mm |
| Shielding | yes |
| Tinned copper braided shield | |
| Insertion/withdrawal cycles | > 200 |
Environmental conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | D-SUB socket strip |
| Screw thread | UNC 4-40 |
| Torque | 0.2 Nm |
| Number of connections | 1 |
| Number of positions | 37 |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB socket strip |
| Screw thread | UNC 4-40 |
| Torque | 0.2 Nm |
| Number of connections | 1 |
| Number of positions | 37 |
Standards and Regulations
| Standard designation | Flame retardancy |
|---|---|
| Standards/regulations | IEC 60332-3-22 |
| DIN VDE 0482-266-2-2 | |
| Standard designation | Halogen-free |
| Standards/regulations | IEC 60754-1 |
| DIN VDE 0482-267-1 | |
| Standard designation | Concentration of fumes |
| Standards/regulations | IEC 61034-2 |
| Standard designation | Corrosiveness of fumes according |
| Standards/regulations | IEC 60754-2 |
| DIN VDE 0472-813 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
