CAB-DSUB37F/RA/OE/22/S/ 1M 2905913 PHOENIX CONTACT Cable
CAB-DSUB37F/RA/OE/22/S/ 1M
2905913
PHOENIX_CONTACT
Cable

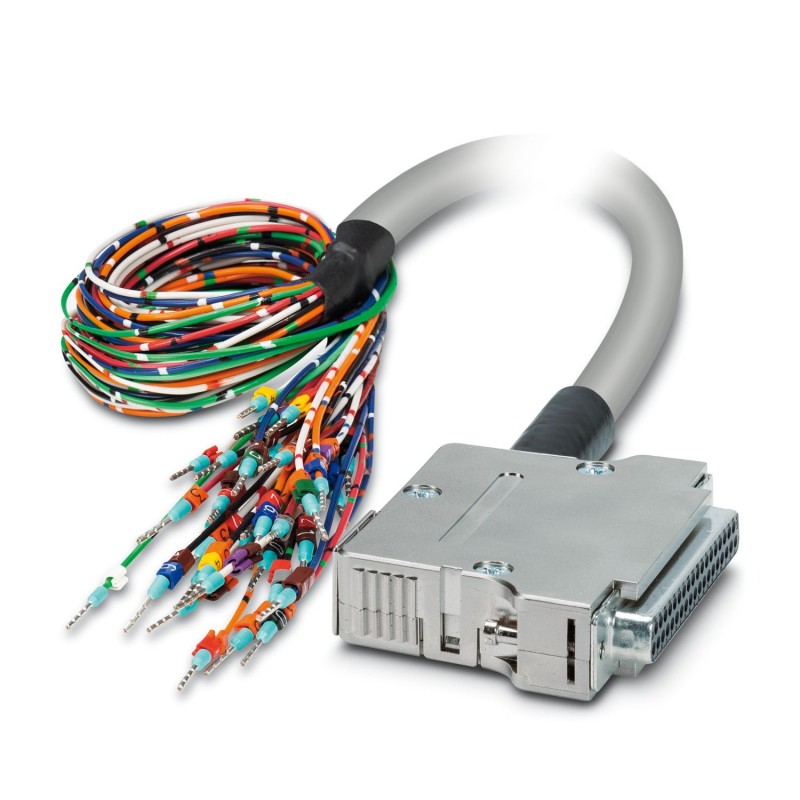

Shielded ready-made round cable; connection 1: Single conductors (37-poles) (Conductors are labeled and equipped with ferrules); Connection 2: Female connection D-SUB (1x 37-poles); Cable length: 1 m
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2905913 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626337425 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85444290 |
| Country of origin | US (United States) |
General
| Nominal voltage UN | 125 V AC |
|---|---|
| 125 V DC | |
| Max. current carrying capacity per path | 2 A |
| Max. conductor resistance | ≤ 0.05 Ω/m |
| Length of cable | 1 m |
| Single wire, cross section | 0.36 mm² |
| Single wire, cross section [AWG] | 22 |
| External diameter | 11.7 mm |
| Shielding | yes |
| Overall foil and braid shield |
Environmental conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | D-SUB socket strip |
| Number of connections | 1 |
| Number of positions | 37 |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | Single wires |
| Number of positions | 37 |
| Note | The wires are marked and fitted with ferrules. |
Color code
| Connector 1 = connector 2 (optional) = wire color | D-SUB37 (1) = black |
|---|---|
| D-SUB37 (2) = white | |
| D-SUB37 (3) = red | |
| D-SUB37 (4) = green | |
| D-SUB37 (5) = orange | |
| D-SUB37 (6) = blue | |
| D-SUB37 (7) = white-black | |
| D-SUB37 (8) = red-black | |
| D-SUB37 (9) = green-black | |
| D-SUB37 (10) = orange-black | |
| D-SUB37 (11) = blue-black | |
| D-SUB37 (12) = black-white | |
| D-SUB37 (13) = red-white | |
| D-SUB37 (14) = green-white | |
| D-SUB37 (15) = blue-white | |
| D-SUB37 (16) = black-red | |
| D-SUB37 (17) = white-red | |
| D-SUB37 (18) = orange-red | |
| D-SUB37 (19) = blue-red | |
| D-SUB37 (20) = red-green | |
| D-SUB37 (21) = orange-green | |
| D-SUB37 (22) = black-white-red | |
| D-SUB37 (23) = white-black-red | |
| D-SUB37 (24) = red-black-white | |
| D-SUB37 (25) = green-black-white | |
| D-SUB37 (26) = orange-black-white | |
| D-SUB37 (27) = blue-black-white | |
| D-SUB37 (28) = black-red-green | |
| D-SUB37 (29) = white-red-green | |
| D-SUB37 (30) = red-black-green | |
| D-SUB37 (31) = green-black-orange | |
| D-SUB37 (32) = orange-black-green | |
| D-SUB37 (33) = blue-white-orange | |
| D-SUB37 (34) = black-white-orange | |
| D-SUB37 (35) = white-red-orange | |
| D-SUB37 (36) = orange-white-blue | |
| D-SUB37 (37) = white-red-blue |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127242200eCl@ss 6.027249200eCl@ss 7.027249205eCl@ss 8.027249205eCl@ss 9.027242220
| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | PLC - other devices |
| Length (EF001438) | 1 m |
| Suitable for input board PLC (EF008271) | No |
| Suitable for output card PLC (EF008272) | No |
| Suitable for digital signals (EF008273) | No |
| Suitable for analogue signals (EF008274) | No |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of electrical connection, box-sided (EF005524) | Other |
| Number of poles (EF001391) | 37 |
