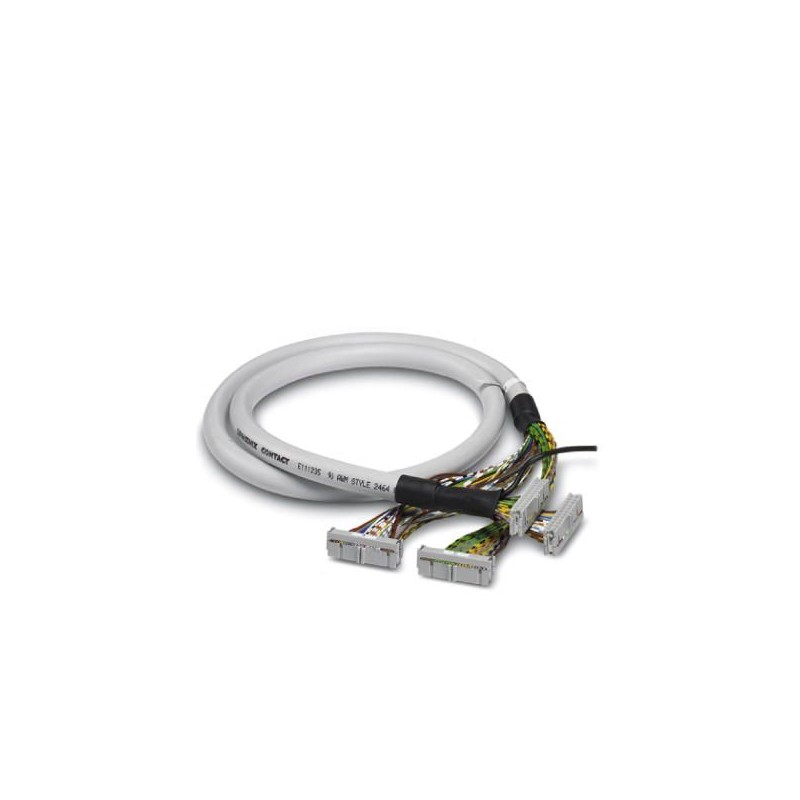

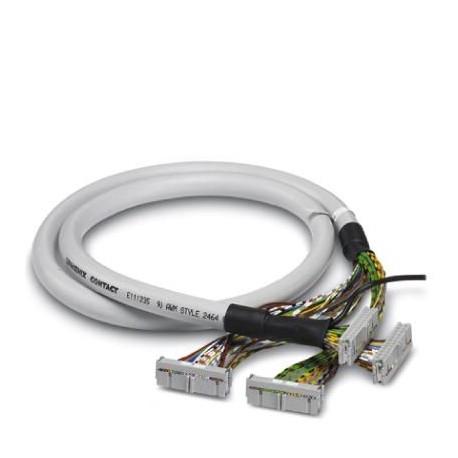

CABLE-2FLK24/2FLK24/DV/ 2,0M/S 2906954 PHOENIX CONTACT Cable
CABLE-2FLK24/2FLK24/DV/ 2,0M/S
2906954
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Cable
Shielded ready-made round cable; control: Emerson Delta V S-Series; Connection 1: Female IDC/FLK connection (2x 24-poles); Connection 2: Female IDC/FLK connection (2x 24-poles); Cable length: 2 m
PLC's > PLC connection cable
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2906954 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626144863 |
| Weight per Piece (excluding packing) | 385.600 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Nominal voltage UN | < 50 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 1 A |
| Max. conductor resistance | 0.16 Ω/m |
| Length of cable | 2 m |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Conductor construction: Number of litz wires: | 7 |
| Single wire, material | Cu tin-plated |
| External diameter | 10.3 mm |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | yes |
Environmental conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Flame resistance | IEC 60332-3-22 |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 2 |
| Number of positions | 24 |
| Pitch | 2.54 mm |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Conductor cross section AWG | 26 |
| Number of connections | 2 |
| Number of positions | 24 |
| Pitch | 2.54 mm |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | PLC - other devices |
| Length (EF001438) | 2 m |
| Suitable for input board PLC (EF008271) | Yes |
| Suitable for output card PLC (EF008272) | Yes |
| Suitable for digital signals (EF008273) | Yes |
| Suitable for analogue signals (EF008274) | Yes |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of electrical connection, box-sided (EF005524) | Other |
| Number of poles (EF001391) | 24 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
