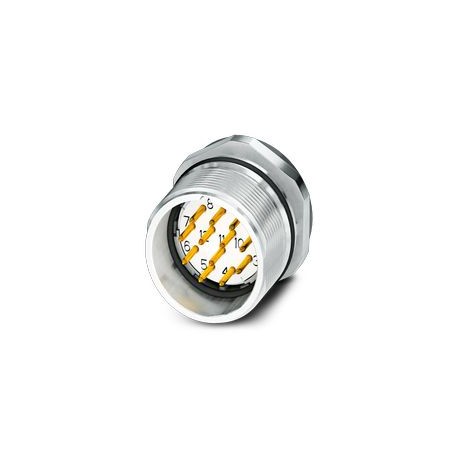

CA-19P1N126Y00X 1243855 PHOENIX CONTACT M23, Conect. plug. to be apar. front wall, series: AC, straight, shi..
CA-19P1N126Y00X
1243855
PHOENIX_CONTACT
M23, Conect. plug. to be apar. front wall, series: AC, straight, shielded: yes, for standard lock and SPEEDCON, No. of poles: 16+3, Direction of rotation: Standard, contact connection type: Male, Solder connection, Axial joint, Central fixing M20 x 1.5, coding: N, The item does not contain lead according to the RoHS II directive without exception 6c (Pb<.; 0.1 %)
M23, Conect. plug. for apar. front wall, AC, straight, shielded: yes, for standard and SPEEDCON locking, No. of poles: 16+3, Direction of rotation: Standard, contact type: Male, Weld connection, Axial joint, Central fixation M20 x 1.5, coding:N, Item is lead-free according to RoHS II without exception 6c (Pb< 0.1%)
M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 16+3, Direction of rotation: Standard, contact connection type: Pin, Solder connection, Axial seal, Central fastening M20 x 1.5, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Connectors > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | Circular connectors (device side) |
| Shielded | yes |
| Insulating body | |
| Coding | N |
| Insulation body material | PA 6.6 |
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Insertion/withdrawal cycles | 100 |
| Connection method | Solder connection |
| Contact switching type | Pin |
| Application | Signal |
| Number of positions | 19 |
| Direction of rotation | Standard |
| Connection profile | 16+3 |
| Contact diameterPower contacts | 1.5 mm |
| Litz wire cross-sectionPower contactsmax. | 1 mm² |
| Rated currentPower contacts | 10 A |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Contact diameterSignal contacts | 1 mm |
| Litz wire cross-sectionSignal contactsmax. | 1 mm² |
| Nominal current per signal contact | 8 A |
| Installation height | 2000 m |
| Housing | |
| Order information: | If necessary, order locking nut separately |
| Housing material | GD-Zn |
| Type of locking | for standard and SPEEDCON interlock |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Feature Name | Feature Value |
|---|---|
| With shield connection (EF002535) | No |
| With PE-connection (EF005600) | No |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| With thread (EF003723) | Yes |
