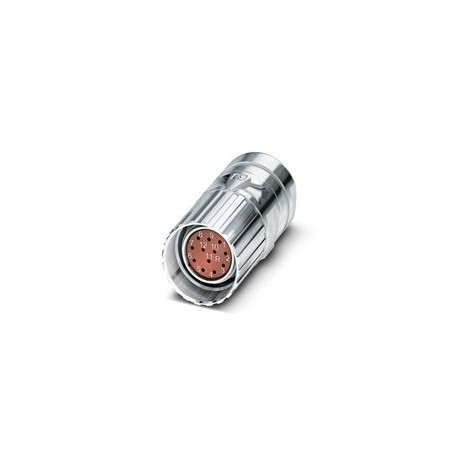

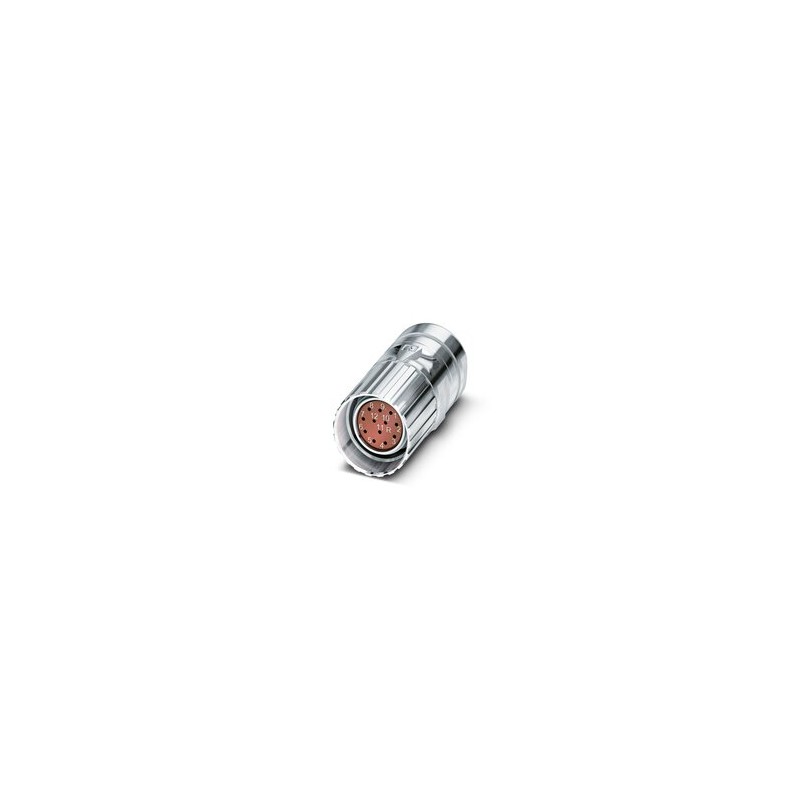

CA-16F1N8A85DU 1627413 PHOENIX CONTACT Plug-in connector for cable, straight, shielded: yes, Lock screw, M23..
CA-16F1N8A85DU
1627413
PHOENIX_CONTACT
Plug-in connector for cable, straight, shielded: yes, Lock screw, M23, range cable diameter: 3 mm ... 14,5 mm
M23, Cable connector, series: CA, straight, shielded: yes, Screw locking mechanism, cable diameter range: 3 mm ... 14.5 mm
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Order 6 x Ø 1 mm crimp contacts separately |
| Product type | Circular connector (cable-side) |
| Housing | |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Type of locking | Screw locking mechanism |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
| Seal | |
| External cable diameter | 3 mm ... 14.5 mm |
| Seal material | FPM |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
