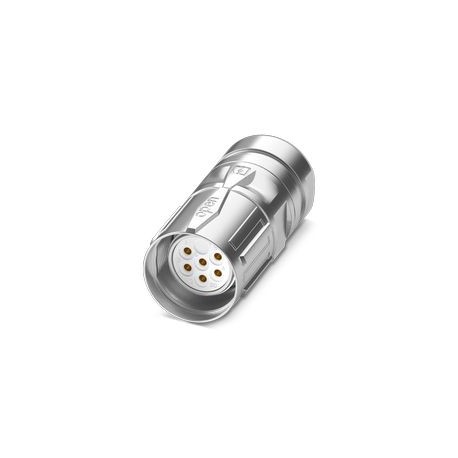

CA-07S1N128007SX 1243640 PHOENIX CONTACT M23, Plug connector. for cables, AC, straight, shielded: yes, SPEED..
CA-07S1N128007SX
1243640
PHOENIX_CONTACT
M23, Plug connector. for cables, AC, straight, shielded: yes, SPEEDCON locking, No. of poles: 7, Direction of rotation: Standard, contact type: Female, Solder connection, cable diameter range: 6 mm ... 10 mm, encoding:N
M23, Cable connector, series: CA, straight, shielded: yes, SPEEDCON, No. of pos.: 7, Direction of rotation: Standard, contact connection type: Socket, Solder connection, cable diameter range: 6 mm ... 10 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| Product type | Circular connector (cable-side) |
| Connection 1 | |
| Head design | Socket |
| Insulating body | |
| Coding | N |
| Insulation body material | PBT |
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Insertion/withdrawal cycles | 100 |
| Connection method | Solder connection |
| Contact switching type | Socket |
| Application | Signal |
| Number of positions | 7 |
| Direction of rotation | Standard |
| Connection profile | 7 |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Contact diameterSignal contacts | 2 mm |
| Litz wire cross-sectionSignal contactsmax. | 2.5 mm² |
| Nominal current per signal contact | 20 A |
| Housing | |
| Housing material | CuZN, GD-Zn |
| Type of locking | SPEEDCON |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
| Seal | |
| External cable diameter | 6 mm ... 10 mm |
| Seal material | NBR |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
