CA-00000008007S 1005502 PHOENIX CONTACT Plug-in connector for cable, straight, shielded: yes, SPEEDCON Locki..
CA-00000008007S
1005502
PHOENIX_CONTACT

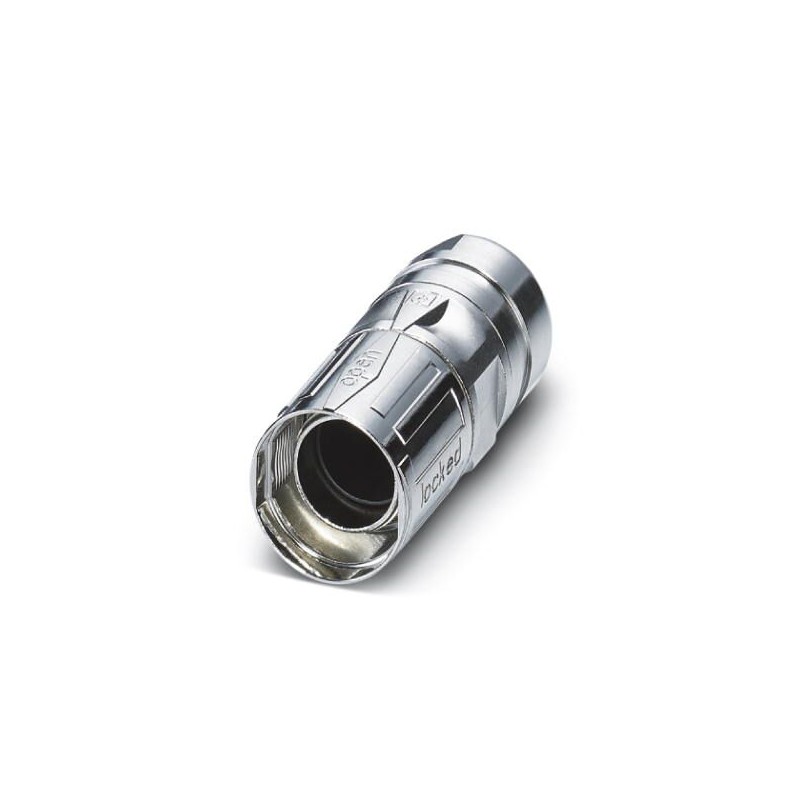

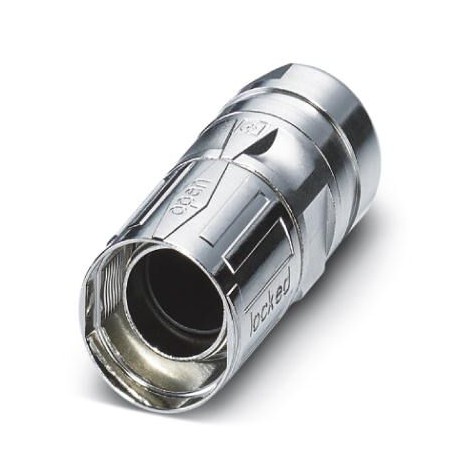

Plug-in connector for cable, straight, shielded: yes, SPEEDCON Locking, M23, range cable diameter: 6 mm ... 10 mm
Connectors > Housing for circular connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Cable connector, straight, shielded: yes, SPEEDCON locking, M23, cable diameter range: 6 mm ... 10 mm
Commercial data
| Order key | 1005502 |
|---|---|
| Packaging unit | 1 PC |
| Sales key | D1 - Connectors |
| Note | Made-to-order production (no returns) |
| GTIN | 4055626476506 |
| Weight per piece (excluding packaging) | 87,380 g |
| Weight per piece (including packaging) | 87,600 g |
| Customs tariff number | 85366990 |
| Country of origin | DE (Germany) |
Specifications of the housing
| Housing material | CuZN, GD-Zn |
|---|---|
| Lock type | SPEEDCON locking system |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
Cable Seal Data
| Cable Diameter | 6 mm ... 10 mm |
|---|---|
| Material Gasket | NBR |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Period for Intended Use (EFUP): 50 years |
| Information about hazardous substances can be found in the manufacturer's declaration under the "Downloads" tab |
Classifications
eCl@ss
| eCl@ss 6.0 | 27180800 |
|---|---|
| eCl@ss 7.0 | 27182702 |
| eCl@ss 8.0 | 27182702 |
| eCl@ss 9.0 | 27182702 |
ETIM
| ETIM 5.0 | EC001031 |
|---|---|
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
