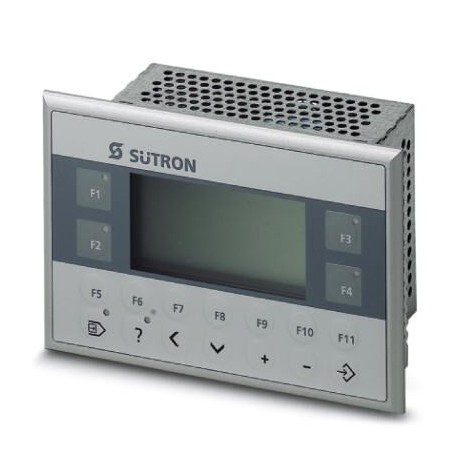

BT03AM/792070 S00001 2400601 PHOENIX CONTACT Key panel with 7.6 cm/3" FSTN-display (Without touch technology..
BT03AM/792070 S00001
2400601
PHOENIX_CONTACT

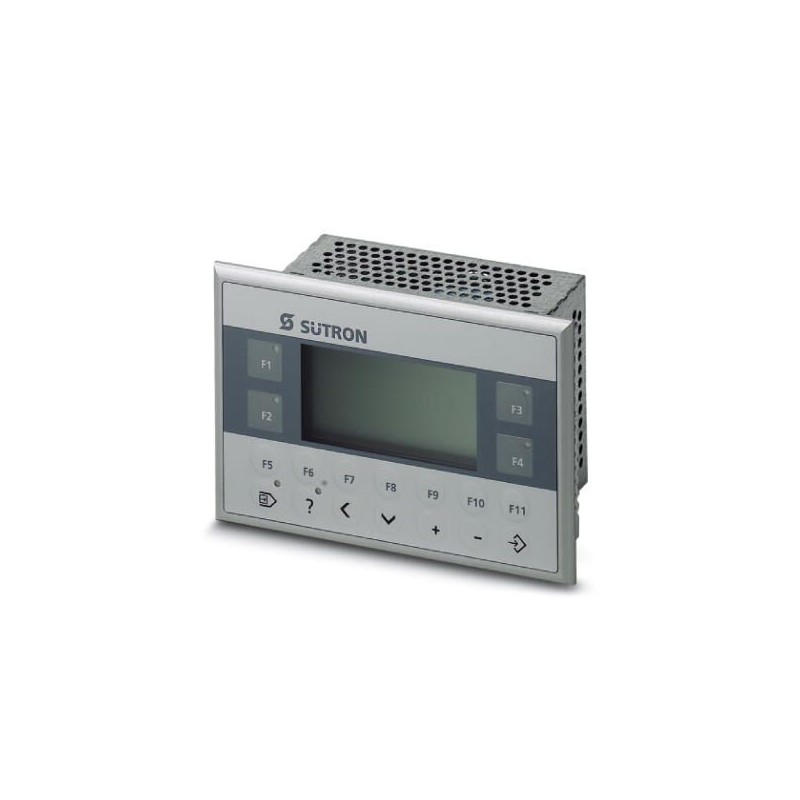

Key panel with 7.6 cm/3" FSTN-display (Without touch technology), 5 grayscales, Arm9™, 200 MHz, 2x USB host 2.0, 1x COM (RS-232), 1x COM (RS-232/RS-485/TTY), 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: TSvisRT. (bus system: without)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key panel with 7.6 cm/3" FSTN-display (Without touch technology), 5 grayscales, Arm9™, 200 MHz, 2x USB host 2.0, 1x COM (RS-232), 1x COM (RS-232/RS-485/TTY), 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: TSvisRT. (bus system: without)
Key Commercial Data
| Orderkey | 2400601 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626098562 |
| Custom tariff number | 84714100 |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 144 mm x 96 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 136 mm x 82 mm x 58 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 7.6 cm/3" FSTN |
|---|---|
| Screen resolution | 160 x 80 Pixel(s) |
| Touch technology | Without touch technology |
| Brightness | 45 cd/m² |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Colors | 5 grayscales |
| Reading angle left | 40 ° |
| Reading angle right | 40 ° |
| Reading angle top | 40 ° |
| Reading angle bottom | 40 ° |
Computer data
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| User software | TSvisRT |
| RAM | 64 MB SDRAM |
| 512 KB SRAM | |
| Mass storage | NOR-Flash, 32 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| 1x COM (RS-232) | |
| 1x COM (RS-232/RS-485/TTY) | |
| Bus system | without |
| Optional interfaces | none |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 500 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Device supply
| Typical current consumption | 0.25 A |
|---|---|
| Power supply unit | 24 V DC ±20 % |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 15; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27330200 |
|---|---|
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242302 |
| eCl@ss 8.0 | 27242302 |
| eCl@ss 9.0 | 27330201 |
ETIM
| ETIM 5.0 | EC001412 |
|---|---|
| ETIM 6.0 | EC001412 |
| ETIM 7.0 | EC001412 |
UNSPSC
| UNSPSC 13.2 | 43211904 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
