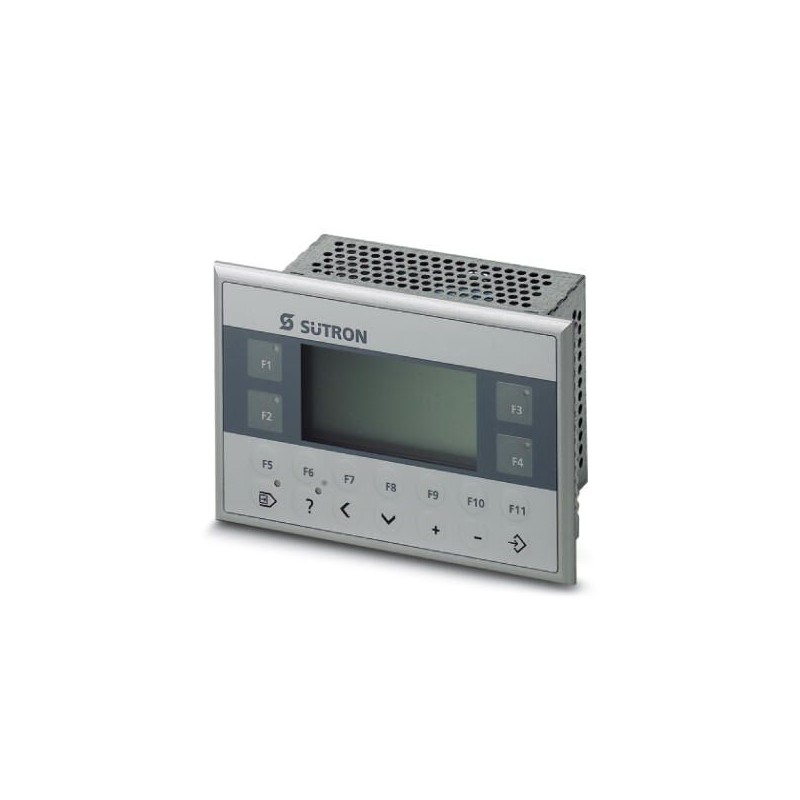

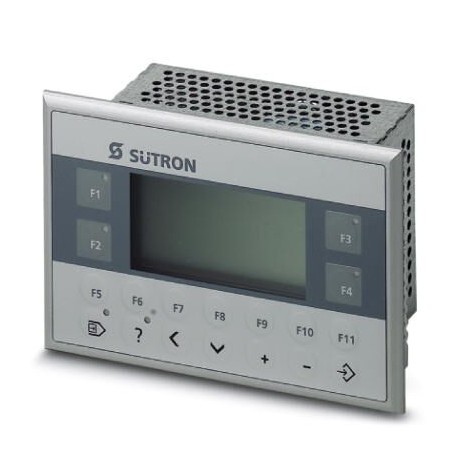

BT03AM/722070 S00001 2400592 PHOENIX CONTACT Key panel with 7.6 cm/3" FSTN-display (Without touch technology..
BT03AM/722070 S00001
2400592
PHOENIX_CONTACT
Key panel with 7.6 cm/3" FSTN-display (Without touch technology), 5 grayscales, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: TSvisRT. (bus system: PROFIBUS DP)
Key-Panel with 7.6 cm/3"-FSTN-screen (without), 5 gray levels, ARM9™, 200 MHz, 2x USB Host 2.0, 1x Ethernet (10/100 MBits/s), RJ45, Windows CE 5.0 and user software: TSvisRT. (bus system: PROFIBUS DP)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | Two million four hundred thousand five hundred ninety two |
|---|---|
| Packing unit | 1 pcs |
| Key selling | DRCAAB - |
| EAN | Four trillion fifty five billion six hundred twenty six million ninety eight thousand six hundred fifty four |
| Unit weight (excluding packaging) | 500,000 g |
| Tariff number tariff | Eighty four million seven hundred fourteen thousand one hundred |
| Country of origin | DE (Germany) |
Observation
| Restriction of use | EMC: class A product, see manufacturer's declaration in the download center |
|---|
Dimensions
| External dimension Width, Height, Depth | 144 mm x 96 mm x 5 mm (Dimensions of front plate) |
|---|---|
| Installation dimension, Width, Height, Depth | 136 mm x 82 mm x 58 mm (Section of mounting depth with the bus in case there is a bus system in the device) |
Screen
| Display | 7.6 cm/3"-FSTN |
|---|---|
| Resolution of the screen | 160 x 80 Pixel(s) |
| Touch Technology | without touch technology |
| Brightness | 45 cd/m2 |
| Background lighting | LED |
| Backlight MTBF | 50000 h |
| Colors | 5 levels of gray |
| Untoangle of reading left | 40 ° |
| Untoangle reading right | 40 ° |
| Untoangle to read up | 40 ° |
| Untoangle reading below | 40 ° |
Data computer
| Processor | Arm9™, 200 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| Software user | TSvisRT |
| Main memory | 64 MB SDRAM |
| 512 KB SRAM | |
| Data memory | NOR-Flash, 32 MB |
| Network | 1x Ethernet (10/100 Mbit/s), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| System bus | PROFIBUS DP |
| Optional Interfaces | none |
| Real-time clock | Yes |
| Battery life | 5 years (typ.) |
Overview
| Material of the front plate | Aluminium (natural anodized) |
|---|---|
| Material housing | Galvanised steel plate |
| Mounting type | Front mounting |
| Weight | 500 g |
Environmental conditions
| Index of protection | IP65 (front side), IP20 (rear side) |
|---|---|
| NEMA 4X | |
| Room temperature (service) | 0 °C ... 50 °C |
| Ambient temperature (storage / transport) | -25 °C ... 70 °C |
| Humidity of air permissible (service) | 20 % ... 85 % |
| Vibration (service) | 1g according to en 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and specifications
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (service) | 1g according to en 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 15 years; |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million three hundred thirty thousand two hundred |
|---|---|
| eCl@ss 4.1 | Twenty seven million three hundred thirty thousand two hundred |
| eCl@ss 5.0 | Twenty seven million three hundred thirty thousand two hundred |
| eCl@ss 5.1 | Twenty seven million three hundred thirty thousand two hundred |
| eCl@ss 6.0 | Twenty seven million two hundred forty two thousand three hundred |
| eCl@ss 7.0 | Twenty seven million two hundred forty two thousand three hundred two |
| eCl@ss 8.0 | Twenty seven million two hundred forty two thousand three hundred two |
| eCl@ss 9.0 | Twenty seven million three hundred thirty thousand two hundred one |
UNSPSC
| UNSPSC 13.2 | Forty three million two hundred eleven thousand nine hundred four |
|---|---|
| UNSPSC 18.0 | Forty three million two hundred eleven thousand nine hundred four |
| UNSPSC 19.0 | Forty three million two hundred eleven thousand nine hundred four |
| UNSPSC 20.0 | Forty three million two hundred eleven thousand nine hundred four |
| UNSPSC 21.0 | Forty three million two hundred eleven thousand nine hundred four |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
