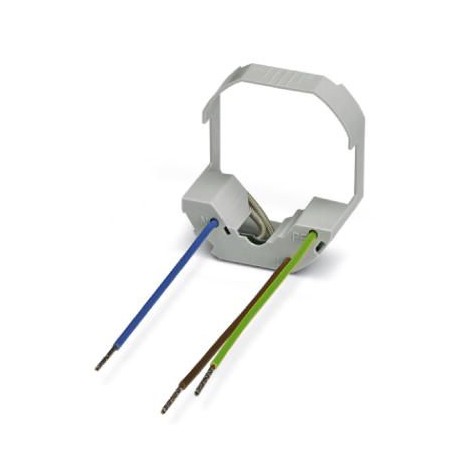

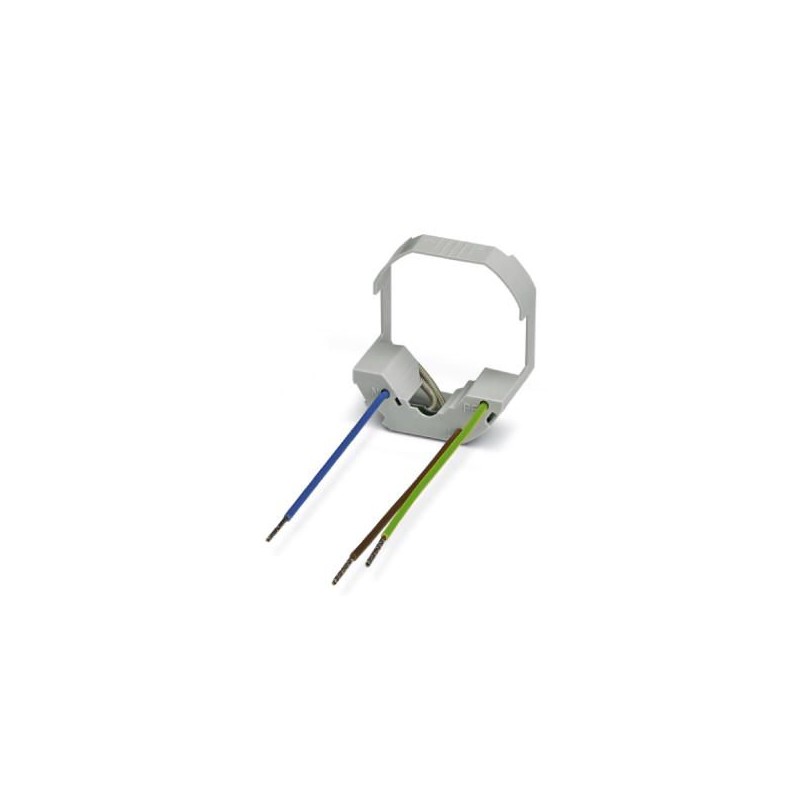

BLT-SKT-230-A 1038842 PHOENIX CONTACT Type 3 surge protection device
BLT-SKT-230-A
1038842
PHOENIX_CONTACT
Type 3 surge protection device
Type 3 surge protection for fixed installation mounting on sockets with protective contact. Temperature-controlled circuit, acoustic defect indication.
Earthing, lightning and surge protection > Surge protection device for terminal equipment
Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1038842 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626592442 |
| Weight per Piece (excluding packing) | 41.000 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 (Installed) |
|---|---|
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Permissible humidity (operation) | 5 % ... 95 % |
General
| EN type | T3 |
|---|---|
| IEC power supply system | TN-S |
| TT | |
| Number of ports | One |
| Mode of protection | L-N |
| L-PE | |
| N-PE | |
| Mounting type | in device sockets of insulating material with standard ground contact sockets |
| Color | light grey RAL 7035 |
| Housing material | PA 6.6-FR |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V-0 |
| Type | Socket mounting module |
| Number of positions | 2 |
| Surge protection fault message | Acoustic |
Protective circuit
| Nominal voltage UN | 230 V AC (TN-S) |
|---|---|
| 230 V AC (TT - only in use with RCD) | |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 255 V AC |
| Residual current IPE | ≤ 5 µA |
| Reference test voltage UREF | 255 V AC |
| Max. discharge current Imax(8/20) µs | 4 kA |
| Combination wave UOC | 6 kV |
| Voltage protection level Up | ≤ 1.5 kV |
| TOV behavior at UT(L-N) | 440 V AC (5 s / withstand mode) |
| 440 V AC (120 min / withstand mode) | |
| TOV behavior at UT(L-PE) | 440 V AC (5 s / withstand mode) |
| 440 V AC (120 min / withstand mode) | |
| 1455 V AC (200 ms / safe failure mode) | |
| TOV behavior at UT(N-PE) | 1200 V AC (200 ms / safe failure mode) |
| Response time tA(L-N) | ≤ 25 ns |
| Response time tA(L-PE) | ≤ 100 ns |
| Response time tA(N-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (MCB B) |
| Short-circuit current rating ISCCR | 1 kA AC |
Classifications
| Feature Name | Feature Value |
|---|---|
| Max. continuous voltage AC (EF004198) | 255 V |
| Voltage protection level L-N (EF004236) | 1.5 kV |
| With remote signalling contact (EF000422) | No |
| Signalling at the device (EF004241) | Acoustic |
| Category type 3 (EF004231) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
