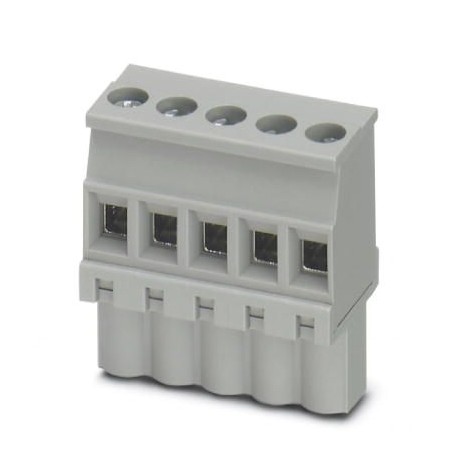

BCVP-508W-24 GY 5439992 PHOENIX CONTACT Printed-circuit board connector View larger

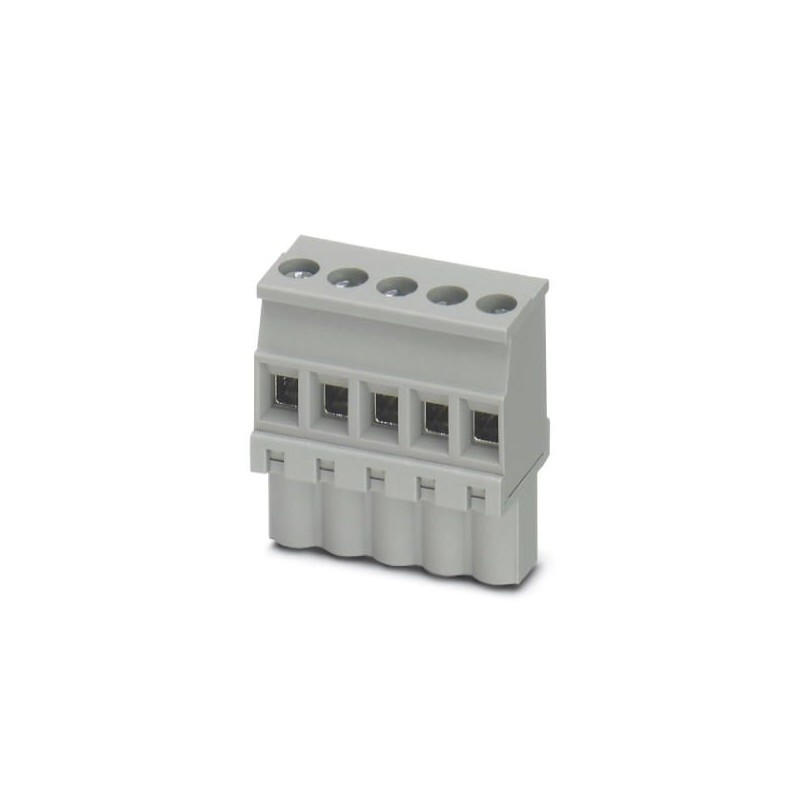

Images are for illustrative purposes only. Please refer to data sheet for details.

BCVP-508W-24 GY 5439992 PHOENIX CONTACT Printed-circuit board connector

BCVP-508W-24 GY

5439992

PHOENIX_CONTACT

50

Available Ship on today

New orders for this item will be processed from April 13

Printed-circuit board connector

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article is obsolete. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Go to successor article: MVSTBW 2,5/24-ST-5,08 1792977

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey 5439992
Packing unit 50 pc
NoteMade to Order (non-returnable)
GTIN4046356471992
Weight per Piece (excluding packing)48.340 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Length [ l ]26 mm
Width [ w ]121.92 mm
Height [ h ]12.6 mm
Pitch5.08 mm
Dimension a116.84 mm

General

Range of articlesBCVP-W
Number of positions24
Connection methodScrew connection with tension sleeve
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Nominal current IN12 A
Nominal cross section2.5 mm²
Maximum load current12 A (with a 2.5 mm² conductor cross section)
Insulating materialPA
Flammability rating according to UL 94V0
Stripping length7 mm
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.1 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
