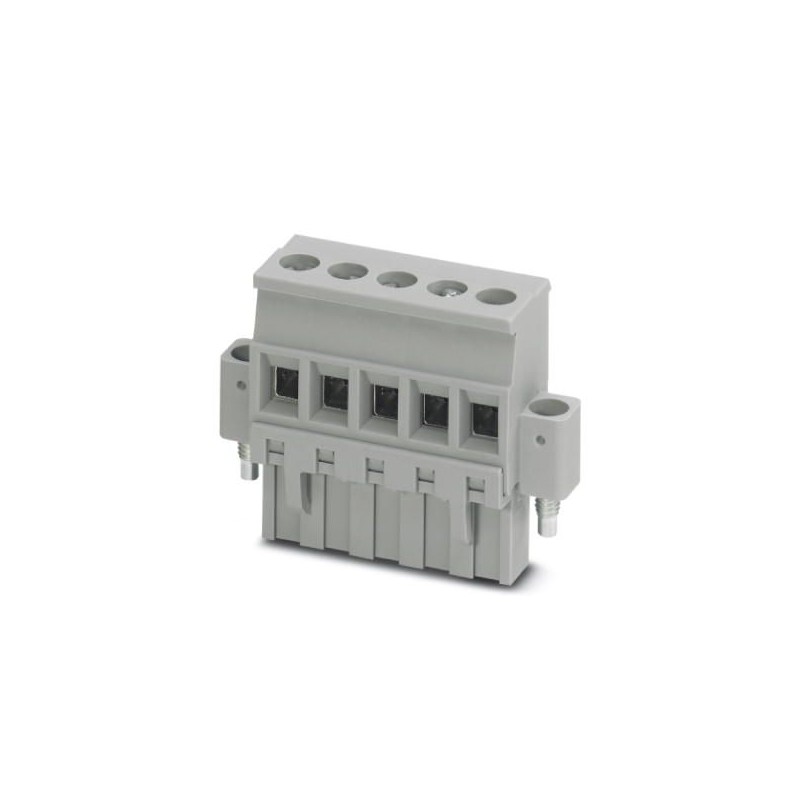

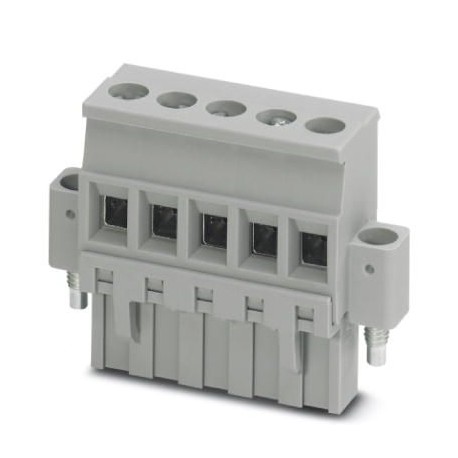

BCVP-508RF-16 GN 5451336 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º p..
BCVP-508RF-16 GN
5451336
PHOENIX_CONTACT
50
Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 16,Pitch: 5,08 mm,the Technique of connection: Connection by screw with capsule-traction,Color: whitish green,contact Surface: Tin
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Commercial data
| Order code | Five million four hundred fifty one thousand three hundred thirty six |
|---|---|
| Packaging unit | 50 stk |
| Minimum order quantity | 100 stk |
| Note | Order-related production (return impossible) |
| GTIN | Four trillion forty six billion three hundred fifty six million eight hundred forty three thousand two hundred fifty six |
| Weight/PCs (without packing) | 33,780 GRM |
General information
| Series products | BCVP-RF |
|---|---|
| Poles | Sixteen |
| Connection type | Screw clamp with tensioning sleeve |
| Insulating material group | I |
| Rated impulse withstand voltage (III/3) | 4 kV |
| Rated impulse withstand voltage (III/2) | 4 kV |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated voltage (III/2) | Three hundred twenty |
| Rated voltage (II/2) | 630 In |
| Nominal current IN | 12 A |
| Nominal cross-section | 2.5 mm2 |
| Maximum load current | 12 A (at the cross-section of conductor 2.5 mm2) |
| The insulating material | PA |
| Class of Flammability according to UL 94 | V0 |
| The Stripping length | 7 mm |
| Thread screws | M3 |
| Min. tightening torque | 0.5 Nm |
| Tightening torque, max. | 0.6 Nm |
Standards and regulations
| Connection according to standard | CUL |
|---|---|
| Class of Flammability according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | The time period for use (EFUP) of 50 years |
| Information on hazardous substances is given in the manufacturer's Declaration in tab "Download" |
Classification
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 8.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 9.0Twenty seven million four hundred forty thousand three hundred nine
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred oneUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
