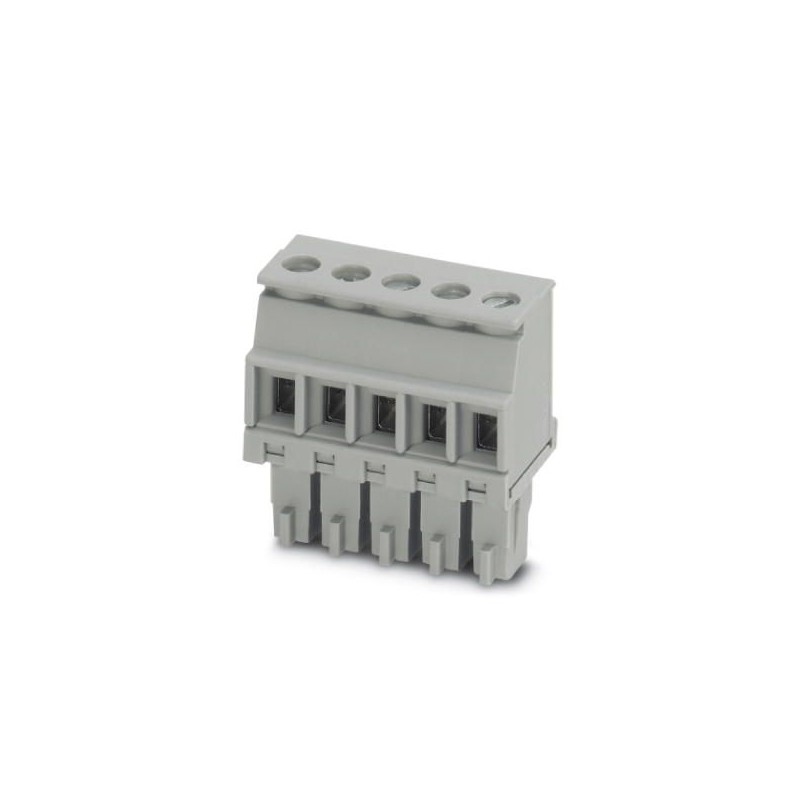

BCVP-381R- 5 GN 5449555 PHOENIX CONTACT Part plug,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º pol..
BCVP-381R- 5 GN
5449555
PHOENIX_CONTACT
250
Product on demand only, returns will not be accepted.
Part plug,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º poles: 5,Pitch: 3,81 mm,the Technique of connection: Connection by screw with capsule-traction,Color: whitish green,contact Surface: Tin
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Commercial data
| Order key | 5449555 |
|---|---|
| Packaging unit | 50 pcs |
| Sell key | AAYCBA - |
| Minimum Order Quantity | 100 pcs |
| Ean | 4046356839990 |
| Weight per unit (excluding packaging) | 4,246 g |
| Tariff rate number | 85366990 |
| Country of origin | DE (Germany) |
General
| Article Family | BCVP-R |
|---|---|
| Number of poles | 5 |
| Connection type | Screw connection with traction capsule |
| Insulating material group | I |
| Dimensioning transient voltage (III/3) | 2.5 kV |
| Dimensioning Transient Voltage (III/2) | 2.5 kV |
| Dimensioning transient voltage (II/2) | 2.5 kV |
| Sizing voltage (III/3) | 160 V |
| Dimensioning voltage (III/2) | 160 V |
| Sizing voltage (II/2) | 320 V |
| Standard-compliant connection | EN-VDE |
| Nominal Current IN | 8 A |
| Nominal Section | 1.5 mm² |
| Maximum Charging Current | 8 A (with a conductor cross-section of 1.5 mm²) |
| Isolation | PA |
| Combustibility class according to UL 94 | V0 |
| Length to be de-insulated | 7 mm |
| Screw thread | M2 |
| Min. tightening torque. | 0.22 Nm |
| Max. tightening torque. | 0.25 Nm |
Connection data
| Rigid conductor section min. | 0.2 mm² |
|---|---|
| Max. rigid conductor section | 1.5 mm² |
| Flexible conductor section min. | 0.2 mm² |
| Max. flexible conductor section | 1.5 mm² |
| Flexible conductor section with toe cap, without min plastic sleeve. | 0.25 mm² |
| Flexible conductor section with toe cap, without plastic sleeve max. | 1.5 mm² |
| Flexible conductor section with tip, with min plastic sleeve. | 0.25 mm² |
| Flexible conductor section with ferrule, with plastic sleeve max. | 0.5 mm² |
| Conductor section AWG min. | 24 |
| Conductor section AWG max. | 16 |
| 2 conductors with the same cross-section, rigid min. | 0.2 mm² |
| 2 conductors with the same cross-section, rigid max. | 0.5 mm² |
| 2 conductors with the same cross-section, flexible min. | 0.2 mm² |
| 2 conductors with the same cross-section, flexible max. | 0.75 mm² |
| 2 conductors with the same cross-section, flexible with HAE, without min plastic sleeve. | 0.25 mm² |
| 2 conductors with the same cross-section, flexible with HAE without plastic sleeve max. | 0.34 mm² |
| 2 conductors with the same cross-section, flexible with TWIN-AEH, with min plastic sleeve. | 0.5 mm² |
| 2 conductors with the same cross-section, flexible with TWIN-HAE with plastic sleeve max. | 0.5 mm² |
Standards & Specifications
| Standard-compliant connection | EN-VDE |
|---|---|
| CUL | |
| Combustibility class according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Time Span for Intended Use (EFUP): 50 years |
| You can find information about hazardous substances in the manufacturer's declaration under the "Downloads" tab |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440309eCl@ss 8.027440309eCl@ss 9.027440309
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
