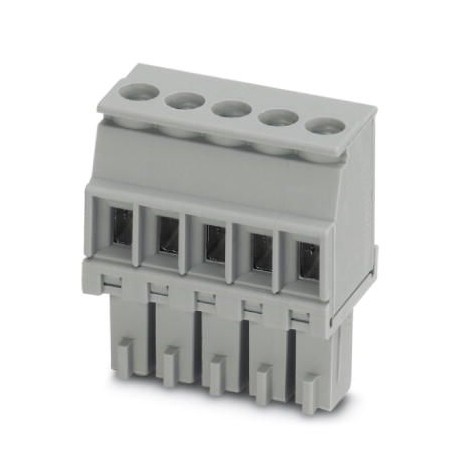

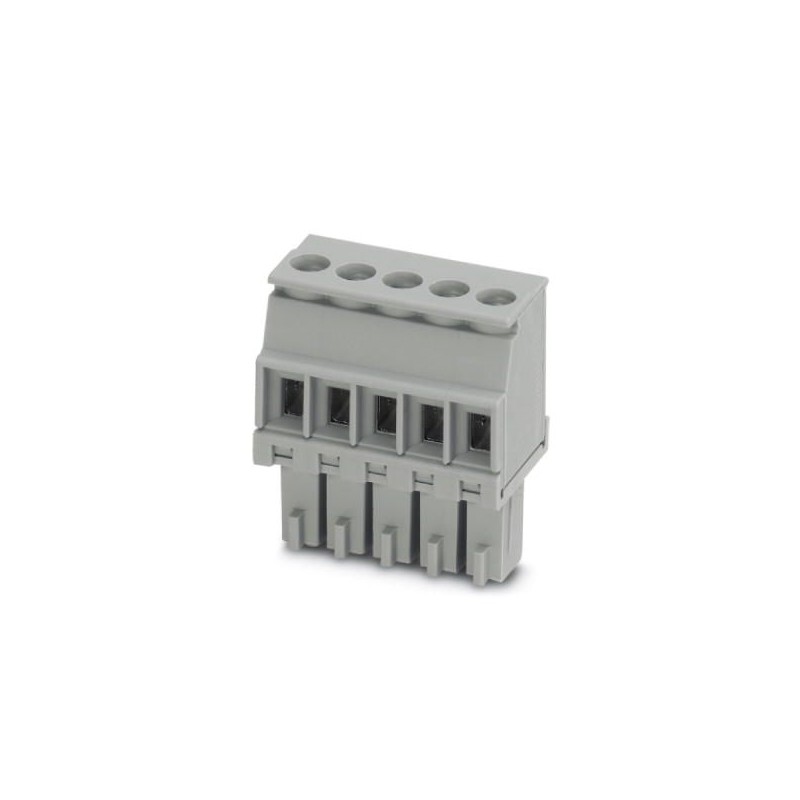

BCVP-350R- 8 BK 5452704 PHOENIX CONTACT Part plug,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º pol..
BCVP-350R- 8 BK
5452704
PHOENIX_CONTACT
50
Part plug,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º poles: 8,Pitch: 3.5 mm,Technique of connection: Connection by screw with capsule-traction,Color: black,contact Surface: Tin
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Commercial data
| The code for the order | Five million four hundred fifty two thousand seven hundred four |
|---|---|
| Pieces/pack. | 50 PCS |
| Sales key | AAYCBA - |
| The amount of minimum order | 50 PCS |
| GTIN | Four trillion forty six billion three hundred fifty six million eight hundred forty eight thousand seven hundred seventy |
| Weight per piece (package included) | 5,930 g |
| Number customs tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
General
| Family article | BCVP-R |
|---|---|
| N. of poles | Eight |
| Link | Screw connection with cage |
| Group insulating material | The |
| Surge voltage strength (III/3) | 2.5 kV |
| Surge voltage strength (III/2) | 2.5 kV |
| Surge voltage strength (II/2) | 2.5 kV |
| Rating voltage (III/3) | 160 V |
| Rating voltage (III/2) | 160 V |
| Rating voltage (II/2) | 320 V |
| Attack in accordance with | EN-VDE |
| Rated current IN | Eight |
| Nominal section | 1.5 mm2 |
| Maximum load current | 8 A (with a conductor cross section of 1.5 mmTwo) |
| Insulating material | PA |
| Class behaviour according to UL 94 | V0 |
| Stripping length | 7 mm |
| Thread | M2 |
| Torque min. | 0,22 Nm |
| Torque, max. | 0,25 Nm |
Data link
| Conductor cross section, rigid min. | 0.2 mm2 |
|---|---|
| Conductor cross section, rigid max. | 1.5 mm2 |
| Conductor cross section flexible min. | 0.2 mm2 |
| Conductor cross section flexible max. | 1.5 mm2 |
| Conductor cross section flexible with crimp connector without collar plastic min. | 0.25 mm2 |
| Conductor cross section flexible with crimp connector without collar plastic max. | 1.5 mm2 |
| Conductor cross section flexible with aeh with collar plastic min. | 0.25 mm2 |
| Conductor cross section flexible with aeh with collar plastic max. | 0.5 mm2 |
| Cross section conductor AWG min. | Twenty four |
| Cross section conductor AWG max. | Sixteen |
| 2 conductors with the same diameter, rigid min. | 0.2 mm2 |
| 2 conductors with the same diameter, rigid max. | 0.5 mm2 |
| 2 conductors with the same diameter, flexible, min. | 0.2 mm2 |
| 2 conductors with the same diameter, flexible, max. | 0.75 mm2 |
| 2 conductors with the same diameter, flexible with AEH without collar plastic min. | 0.25 mm2 |
| 2 conductors with the same diameter, flexible with AEH without collar plastic max. | 0.34 mm2 |
| 2 conductors with the same diameter, flexible with TWIN-AEH with collar plastic min. | 0.5 mm2 |
| 2 conductors with the same diameter, flexible with TWIN-AEH with collar plastic max. | 0.5 mm2 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Period of use conforms to the target without damage to the environment (EFUP): 50 years |
| The information on hazardous substances found in the declaration of the manufacturer under "Downlaods" |
Rankings
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 8.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 9.0Twenty seven million four hundred forty thousand three hundred nine
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred oneUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
