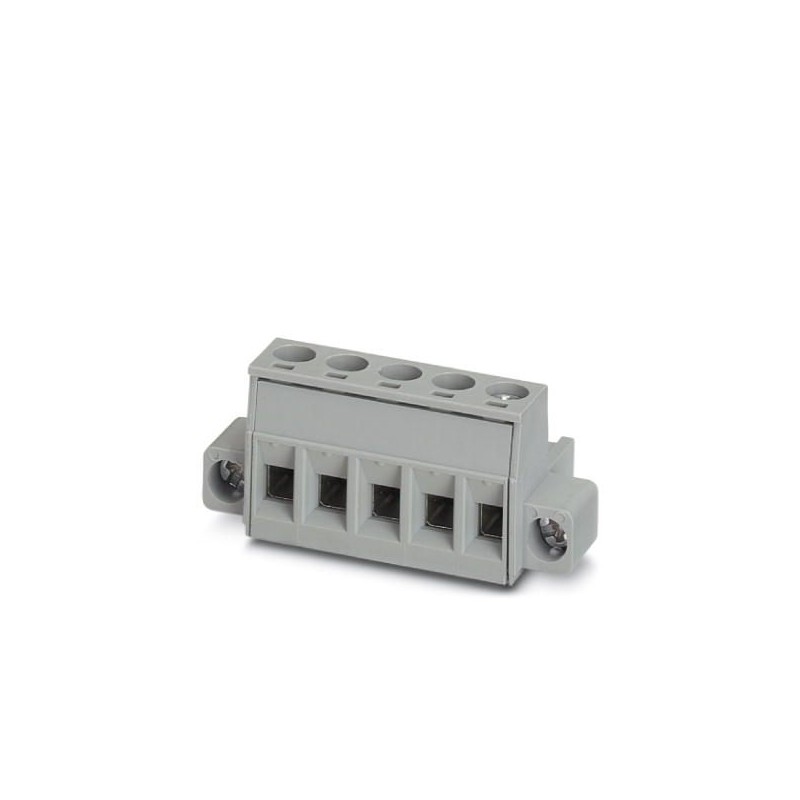

BCP-508F- 6 GN 5448857 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º pol.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

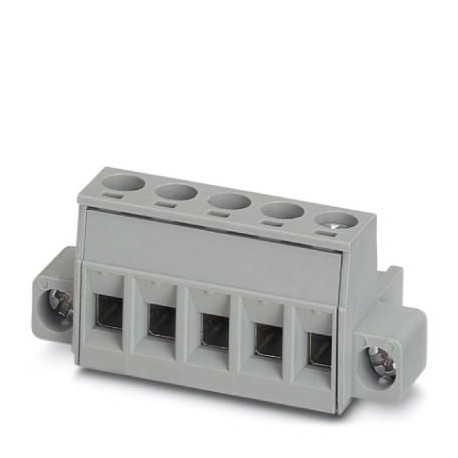

BCP-508F- 6 GN 5448857 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º pol..

BCP-508F- 6 GN

5448857

PHOENIX_CONTACT

100

Available Ship on today

New orders for this item will be processed from April 13

Printed-circuit board connector

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Quantity Price
100+$3.34
200+$3.13
300+$3.05
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey5448857
Packing unit100 pc
Minimum order quantity100 pc
NoteMade to Order (non-returnable)
GTIN4046356838115
Weight per Piece (excluding packing)11.000 g
Custom tariff number85366990
Country of originCN (China)

Dimensions

Length [ l ]18.2 mm
Width [ w ]40.5 mm
Height [ h ]15 mm
Pitch5.08 mm
Dimension a25.4 mm

General

Range of articlesBCP-F
Number of positions6
Connection methodScrew connection with tension sleeve
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Nominal current IN12 A
Nominal cross section2.5 mm²
Maximum load current12 A (with a 2.5 mm² conductor cross section)
Insulating materialPA
Flammability rating according to UL 94V0
Stripping length7 mm
Screw threadM3
Tightening torque, min0.4 Nm
Tightening torque max0.5 Nm

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
