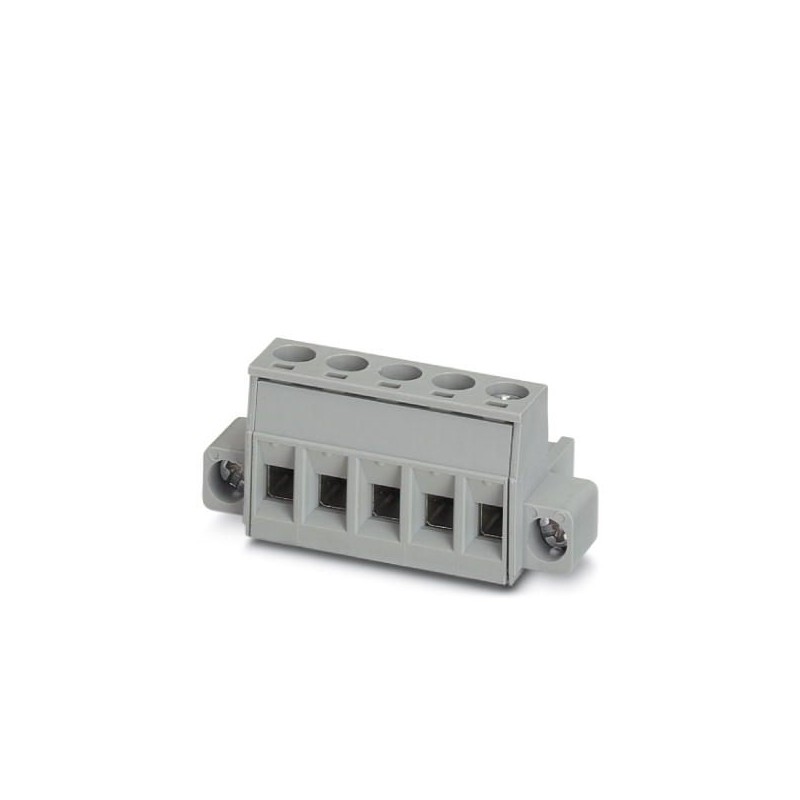

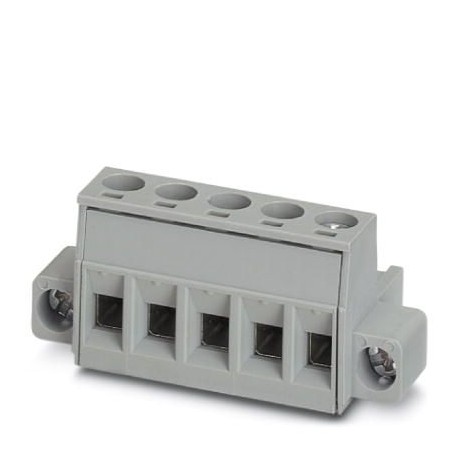

BCP-508F- 2 BK 5452568 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º pol..
BCP-508F-2 BK
5452568
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 2,Pitch: 5,08 mm,the Technique of connection: Connection by screw with capsule-traction,Color: black,contact Surface: Tin
Connector for printed circuit board, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, article family: BCP-F, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: H1L Philipps-Recess with longitudinal groove, conductor connection direction/printed circuit board: 0 °, clamping hook: - without clamping hook, plug-in system: BASICLINE 2.5, locking: Screw locking, fixing type: Air clamping (screw), packaging type: boxed
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Commercial data
| Order key | 5452568 |
|---|---|
| Packaging unit | 100 pcs |
| Sell key | AAYBAA - |
| Minimum Order Quantity | 100 pcs |
| Ean | 4046356850131 |
| Weight per unit (excluding packaging) | 4,272 g |
| Tariff rate number | 85366990 |
| Country of origin | CN (China) |
General
| Article Family | BCP-F |
|---|---|
| Number of poles | 2 |
| Connection type | Screw connection with traction capsule |
| Insulating material group | I |
| Dimensioning transient voltage (III/3) | 4 kV |
| Dimensioning Transient Voltage (III/2) | 4 kV |
| Dimensioning transient voltage (II/2) | 4 kV |
| Dimensioning voltage (III/2) | 320 V |
| Sizing voltage (II/2) | 630 V |
| Nominal Current IN | 12 A |
| Nominal Section | 2.5 mm² |
| Maximum Charging Current | 12 A (with a conductor cross-section of 2.5 mm²) |
| Isolation | PA |
| Combustibility class according to UL 94 | V0 |
| Length to be de-insulated | 7 mm |
| Screw thread | M3 |
| Min. tightening torque. | 0.4 Nm |
| Max. tightening torque. | 0.5 Nm |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Time Span for Intended Use (EFUP): 50 years |
| You can find information about hazardous substances in the manufacturer's declaration under the "Downloads" tab |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440309eCl@ss 8.027440309eCl@ss 9.027440309
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 2 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
