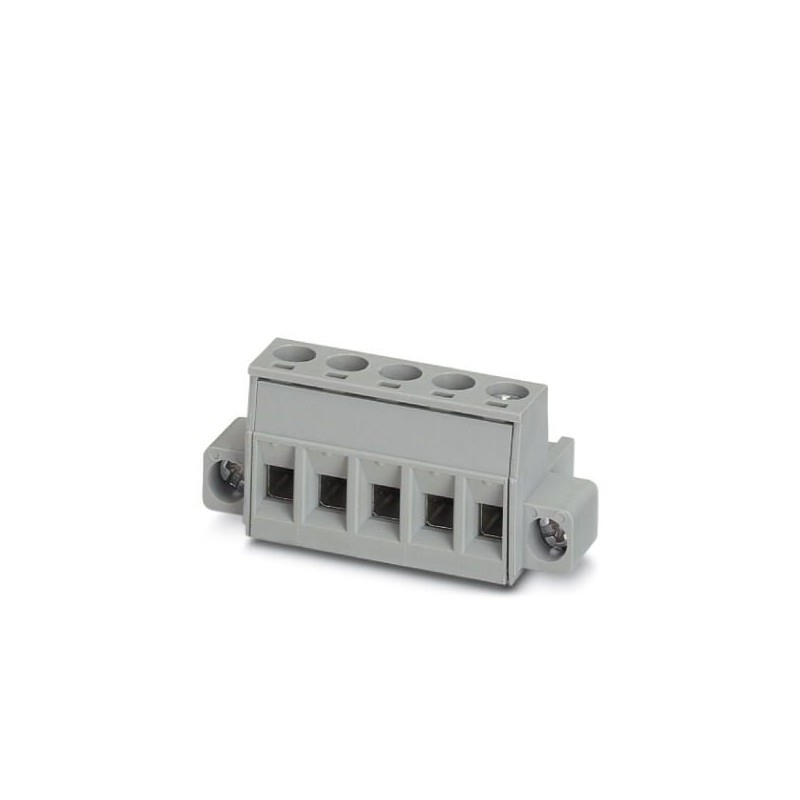

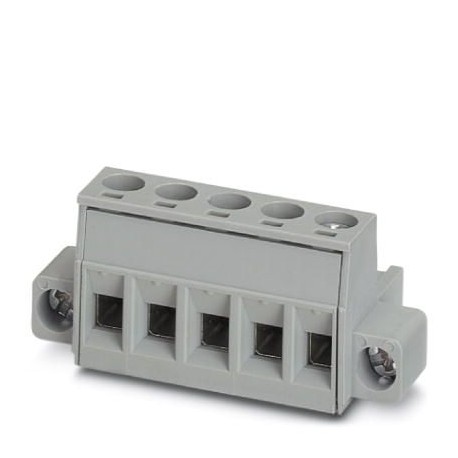

BCP-508F-18 BK 5452584 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º pol..
BCP-508F-18 BK
5452584
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 18,Pitch: 5,08 mm,the Technique of connection: Connection by screw with capsule-traction,Color: black,contact Surface: Tin
Connector for printed circuit board, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 18, number of rows: 1, number of poles: 18, number of connections: 18, article family: BCP-F, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: H1L Philipps-Recess with longitudinal groove, conductor connection direction/printed circuit board: 0 °, clamping hook: - without clamping hook, plug-in system: BASICLINE 2.5, locking: Screw locking, fixing type: Air clamping (screw), packaging type: boxed
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Data commercial
| Key order | Five million four hundred fifty two thousand five hundred eighty four |
|---|---|
| Packing unit | 100 pcs |
| Key selling | AAYBAA - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million eight hundred forty nine thousand nine hundred seventy five |
| Unit weight (excluding packaging) | 30,656 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | CN (China) |
Overview
| Family of articles | BCP-F |
|---|---|
| Number of poles | Eighteen |
| Type of connection | Connection by screw with capsule-traction |
| Group insulating material | I |
| Transient voltage design (III/3) | 4 kV |
| Transient voltage design (III/2) | 4 kV |
| Transient voltage design (II/2) | 4 kV |
| Tension and sizing (III/2) | 320 V |
| Tension and sizing (II/2) | 630 V |
| Nominal current IN | 12 To |
| Nominal cross section | 2.5 mm2 |
| Maximum load current | 12 (with a section of conductor 2.5 mm2) |
| Isolation | PA |
| Class of flammability according to UL 94 | V0 |
| Length desaislar | 7 mm |
| Screw thread | M3 |
| Tightening torque min. | 0.4 Nm |
| Tightening torque max. | 0.5 Nm |
Standards and specifications
| Connection according to standard | CUL |
|---|---|
| Class of flammability according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 8.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 9.0Twenty seven million four hundred forty thousand three hundred nine
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred oneUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 18 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
