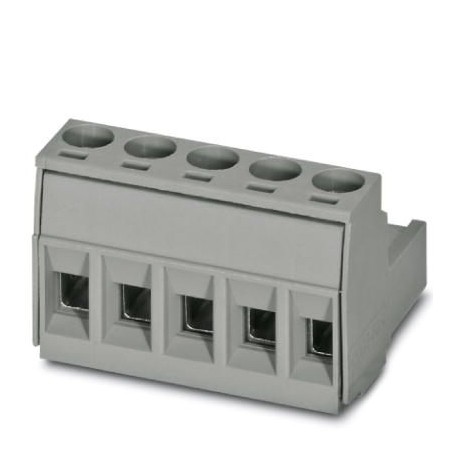

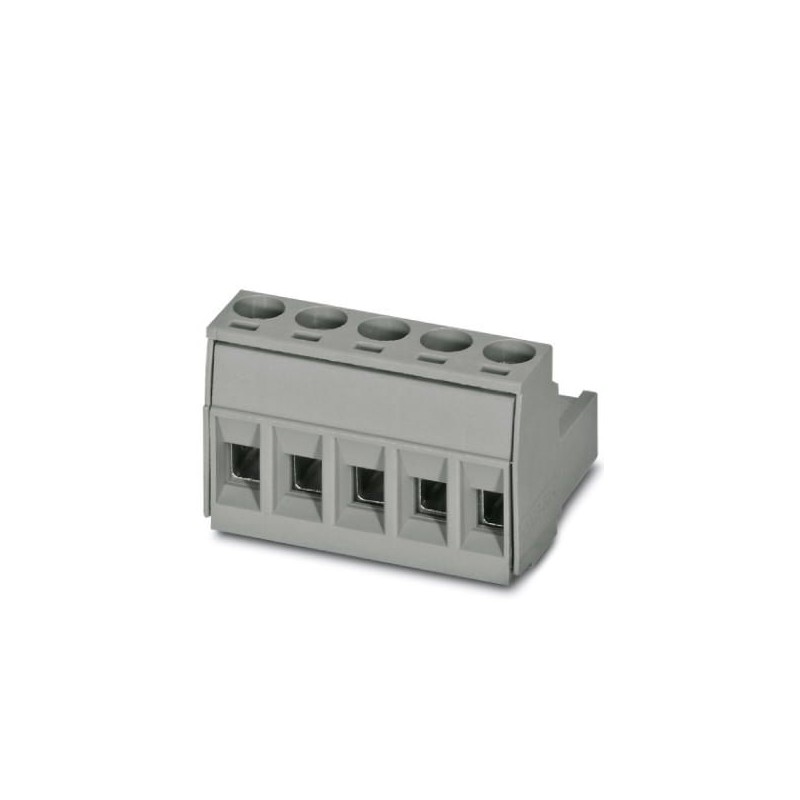

BCP-508- 3 GY 2PA 5452982 PHOENIX CONTACT Part plug, nominal Current: 12 A, Technique of connection: Connect..
BCP-508- 3 GY 2PA
5452982
PHOENIX_CONTACT
100
Part plug, nominal Current: 12 A, Technique of connection: Connection by screw with capsule-traction, Color: gray signs, contact Surface: Tin
Connectors > Cable connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Data commercial
| Key order | Five million four hundred fifty two thousand nine hundred eighty two |
|---|---|
| Packing unit | 100 pcs |
| Key selling | AAYBAA - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million nine hundred eighty two thousand seventy eight |
| Unit weight (excluding packaging) | 4,460 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | CN (China) |
Overview
| Family of articles | BCP |
|---|---|
| Number of poles | Three |
| Type of connection | Connection by screw with capsule-traction |
| Connection according to standard | EN-VDE |
| Nominal current IN | 12 To |
| Nominal cross section | 2.5 mm2 |
Data connection
| Core cross-section rigid min. | 0,2 mm2 |
|---|---|
| Section of conductor rigid max. | 2.5 mm2 |
| Section of flexible conductor, min. | 0,2 mm2 |
| Section of flexible conductor max. | 2.5 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve max. | 2.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe, with plastic sleeve max. | 2.5 mm2 |
| Section of conductor AWG min. | Twenty four |
| Section of conductor AWG max. | Twelve |
| 2 conductors with same cross section, rigid min. | 0,2 mm2 |
| 2 conductors with same cross section, rigid max. | 1 mm2 |
| 2 conductors with same cross section, flexible, min. | 0,2 mm2 |
| 2 conductors with same cross section, flexible max. | 1.5 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve min. | 0.25 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve max. | 1 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve min. | 0.5 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve max. | 1.5 mm2 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 6.0Twenty seven million two hundred sixty one thousand one hundred oneeCl@ss 8.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 9.0Twenty seven million four hundred forty thousand three hundred nine
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
