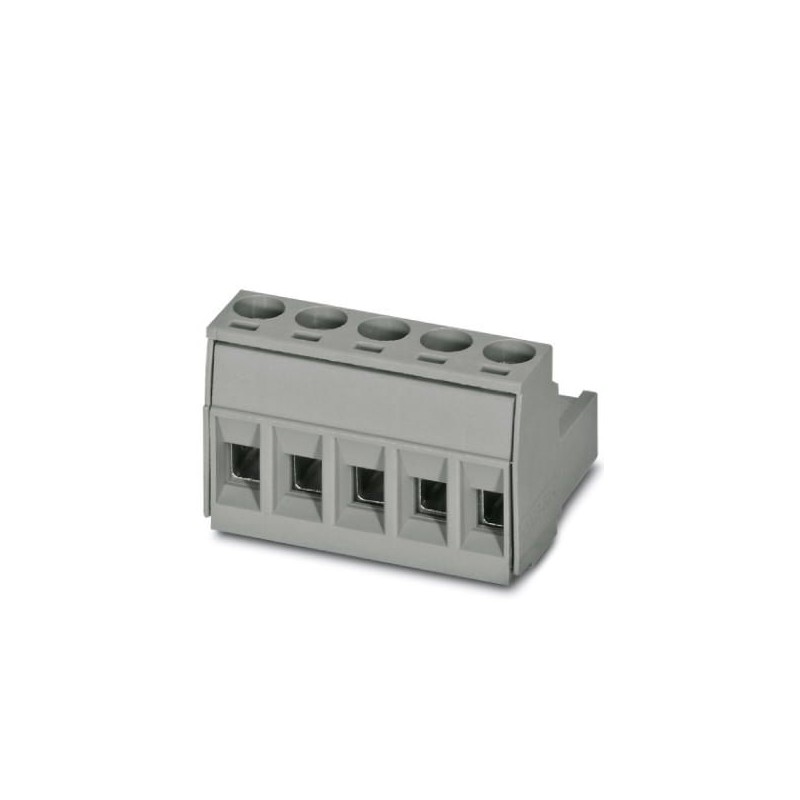

BCP-508-11 BK 5452242 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º pole..
BCP-508-11 BK
5452242
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 11,Pitch: 5,08 mm,the Technique of connection: Connection by screw with capsule-traction,Color: black,contact Surface: Tin
Connector for printed circuit board, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 11, number of rows: 1, number of poles: 11, number of connections: 11, article family: BCP, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: H1L Philipps-Recess with longitudinal groove, connection direction conductor/printed circuit board: 0 °, clamping hook: - Clamping hook, plug-in system: BASICLINE 2.5, locking: without, fixing type: without, packaging type: boxed
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Trade data
| Order Code | Five million four hundred fifty two thousand two hundred forty two |
|---|---|
| Packaging unit | 100 pcs |
| Minimum order quantity | 100 pcs |
| Note | Manufacturing to the order (no recovery) |
| GTIN | Four trillion forty six billion three hundred fifty six million eight hundred fifty three thousand three hundred ninety two |
| Weight per piece (excluding packing) | 0,018 KGM |
| Number of the customs tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | CN (China) |
General
| Family articles | BCP |
|---|---|
| Number of poles | Eleven |
| Type of connection | Screw with ring |
| Group of insulation | I |
| Impulse voltage assigned (III/3) | 4 kV |
| Impulse voltage assigned (III/2) | 4 kV |
| Impulse voltage assigned to (II/2) | 4 kV |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 630 V |
| Connection according to standard | EN-VDE |
| Rated current IN | Twelve |
| Nominal Section | 2.5 mm2 |
| Maximum charge current | 12 A (for wire cross-section 2.5 mm2) |
| Insulating material | PA |
| Flammability class according to UL 94 | V0 |
| Length stripping tool | 7 mm |
| Tightening torque min. | 0.4 Nm |
| Tightening torque max. | 0.5 Nm |
Characteristics of connection
| Wire cross-Section, rigid min. | 0,2 mm2 |
|---|---|
| Wire cross-Section rigid max. | 2.5 mm2 |
| Wire cross-Section flexible min. | 0,2 mm2 |
| Wire cross-Section flexible max. | 2.5 mm2 |
| Wire cross-Section flexible with wire-end sleeve without inlet cone insulation max. | 0.25 mm2 |
| 2.5 mm2 | |
| Wire cross-Section flexible with ferrule and inlet cone insulation min. | 0.25 mm2 |
| Wire cross-Section flexible with ferrule and inlet cone insulation max. | 2.5 mm2 |
| Cross Section of the conductor AWG min. | Twenty four |
| Cross Section of wire AWG max. | Twelve |
| 2 solid conductors of the same cross-section min. | 0,2 mm2 |
| 2 solid conductors of the same cross-section max. | 1 mm2 |
| 2 conductors flexible same cross-section min. | 0,2 mm2 |
| 2 conductors flexible same cross-section max. | 1.5 mm2 |
| 2-conductor, flexible, in the same section with AEH without inlet cone insulation min. | 0.25 mm2 |
| 2-conductor, flexible, in the same section with AEH without inlet cone insulation max. | 1 mm2 |
| 2-conductor, flexible, in the same section with TWIN-AEH and inlet cone insulation min. | 0.5 mm2 |
| 2-conductor, flexible, in the same section with TWIN-AEH and inlet cone insulation max. | 1.5 mm2 |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| ASS | |
| Flammability class according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Period of intended use (EFUP) : 50 years |
| The manufacturer's declaration in the tab "Downloads" contains detailed information on hazardous substances. |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 8.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 9.0Twenty seven million four hundred forty thousand three hundred nine
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred oneUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 11 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
