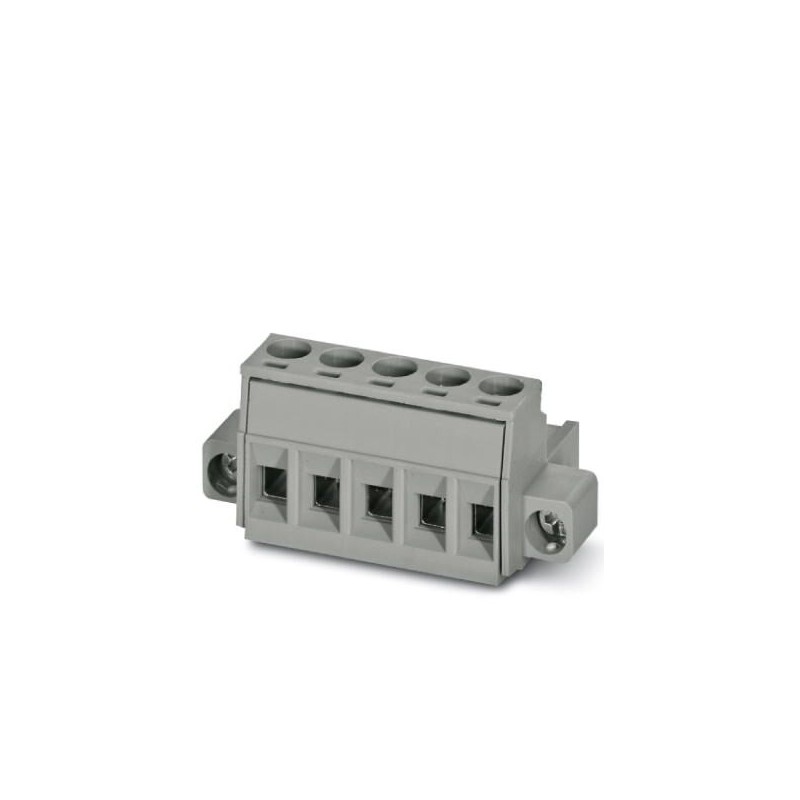

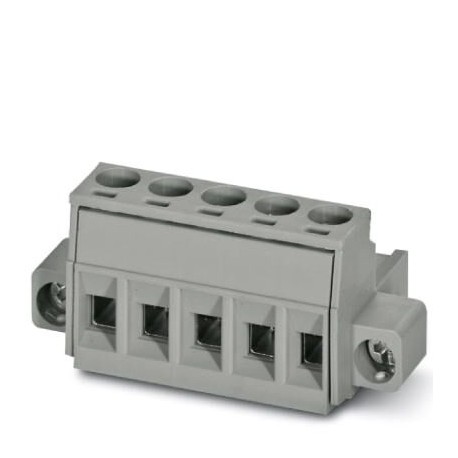

BCP-500- 8 GN BDWH10 VPE250 5453305 PHOENIX CONTACT Printed-circuit board connector
BCP-500- 8 GN BDWH10 VPE250
5453305
PHOENIX_CONTACT
250
Printed-circuit board connector
Connectors > Cable connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Data commercial
| Key order | Five million four hundred fifty three thousand three hundred five |
|---|---|
| Packing unit | 250 pcs |
| Key selling | AAYBAA - |
| Minimum order quantity | 250 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million eight hundred ninety six thousand one hundred thirty nine |
| Unit weight (excluding packaging) | 13,212 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | CN (China) |
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Overview
| Family of articles | BCP |
|---|---|
| Number of poles | Eight |
| Type of connection | Connection by screw with capsule-traction |
| Group insulating material | I |
| Transient voltage design (III/3) | 4 kV |
| Transient voltage design (III/2) | 4 kV |
| Transient voltage design (II/2) | 4 kV |
| Tension and sizing (III/3) | 250 V |
| Tension and sizing (III/2) | 320 V |
| Tension and sizing (II/2) | 630 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 12 To |
| Nominal cross section | 2.5 mm2 |
| Isolation | PA |
| Class of flammability according to UL 94 | V0 |
| Length desaislar | 7 mm |
| Screw thread | M3 |
| Tightening torque min. | 0.4 Nm |
| Tightening torque max. | 0.5 Nm |
Data connection
| Core cross-section rigid min. | 0,2 mm2 |
|---|---|
| Section of conductor rigid max. | 2.5 mm2 |
| Section of flexible conductor, min. | 0,2 mm2 |
| Section of flexible conductor max. | 2.5 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve max. | 2.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe, with plastic sleeve max. | 2.5 mm2 |
| Section of conductor AWG min. | Twenty four |
| Section of conductor AWG max. | Twelve |
| 2 conductors with same cross section, rigid min. | 0,2 mm2 |
| 2 conductors with same cross section, rigid max. | 1 mm2 |
| 2 conductors with same cross section, flexible, min. | 0,2 mm2 |
| 2 conductors with same cross section, flexible max. | 1.5 mm2 |
| 2 conductors with same cross section flexible with toe cap, without plastic sleeve min. | 0.25 mm2 |
| 2 conductors with same cross section flexible with toe cap, without plastic sleeve max. | 1 mm2 |
| 2 conductors with same cross section flexible with toe cap TWIN with plastic sleeve min. | 0.5 mm2 |
| 2 conductors with same cross section flexible with toe cap TWIN with plastic sleeve max. | 1.5 mm2 |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| CUL | |
| Class of flammability according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million two hundred sixty thousand seven hundred |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand three hundred nine |
UNSPSC
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
|---|---|
| UNSPSC 18.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 19.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 20.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 21.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
