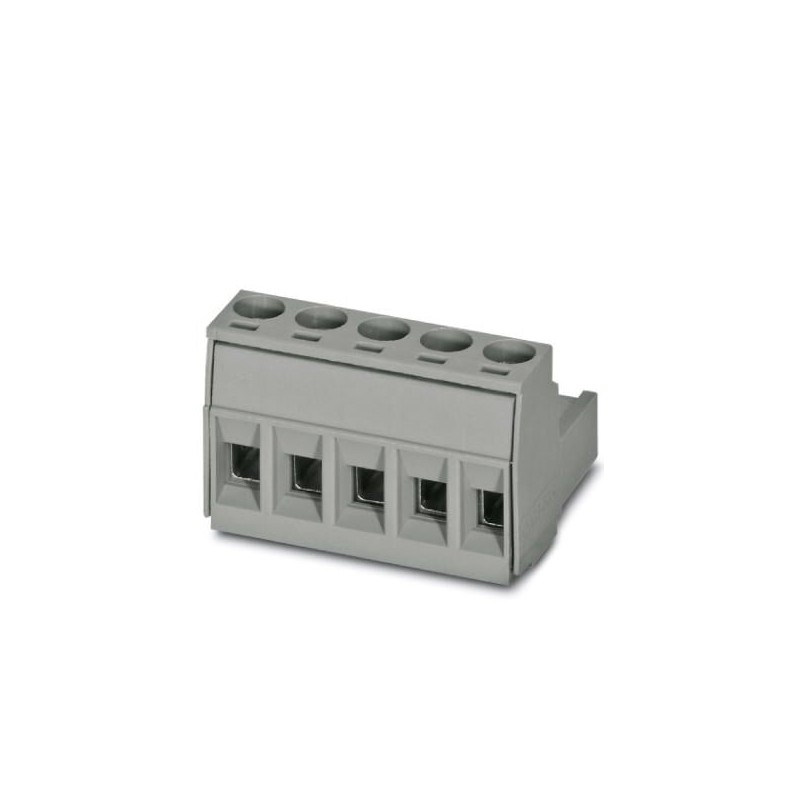

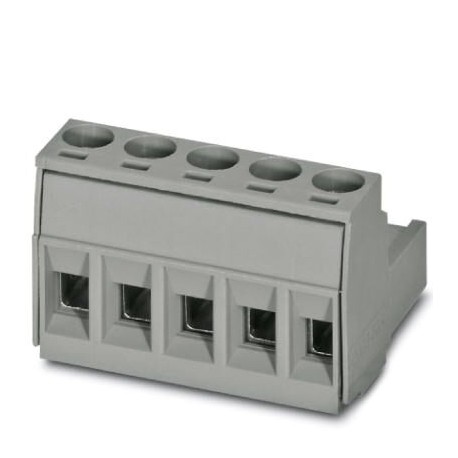

BCP-500-12 GN BDWH:5-10SO 5430336 PHOENIX CONTACT Printed-circuit board connector BCP-500-12 GN BDWH:5-10SO ..
BCP-500-12 GN BDWH:5-10SO
5430336
PHOENIX_CONTACT
100
Printed-circuit board connector - BCP-500-12 GN BDWH:5-10SO - 5430336
Connectors > Cable connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲PCB connector, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 12, pitch: 5 mm, connection method: Screw connection with tension sleeve, color: pastel green, contact surface: Tin
Key Commercial Data
| Orderkey | 5430336 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626343532 |
| Weight per Piece (excluding packing) | 19.620 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
General
| Range of articles | BCP |
|---|---|
| Number of positions | 12 |
| Connection method | Screw connection with tension sleeve |
| Insulating material group | I |
| Rated voltage (III/2) | 320 V |
| Nominal current IN | 12 A |
| Nominal cross section | 2.5 mm² |
| Flammability rating according to UL 94 | V0 |
| Screw thread | M3 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
