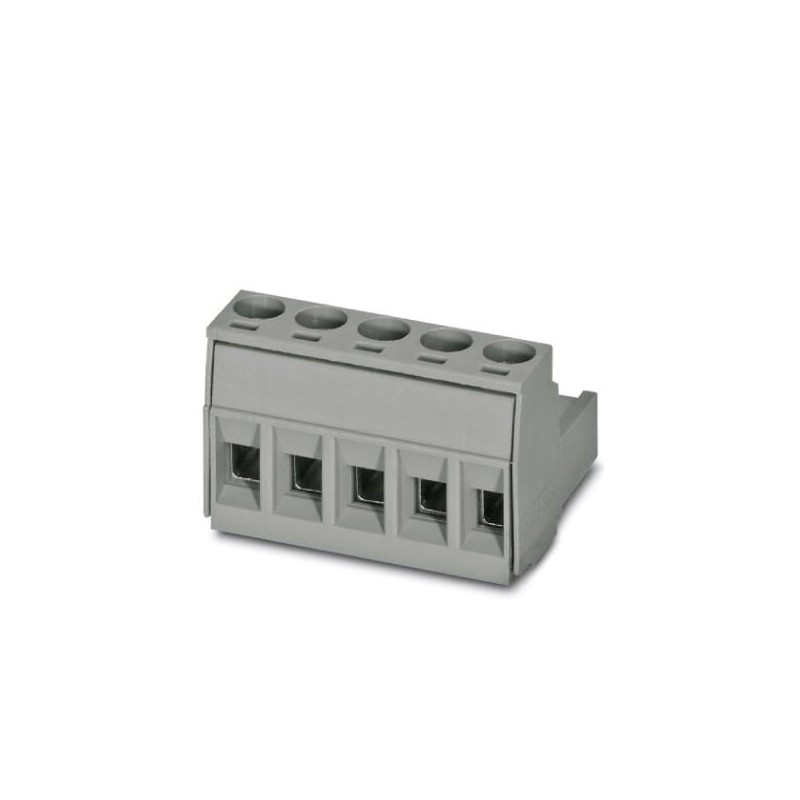

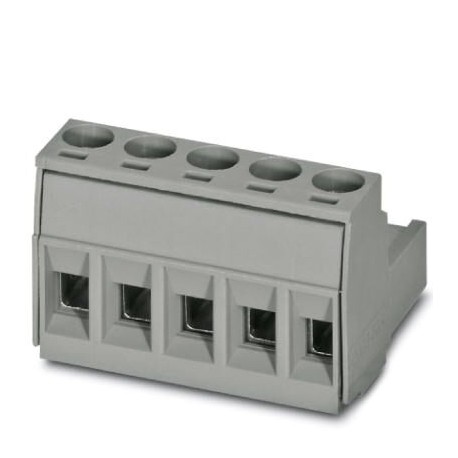

BCP-500-10 GN BDWH:24-MQ 5430326 PHOENIX CONTACT PCB connector
BCP-500-10 GN BDWH:24-MQ
5430326
PHOENIX_CONTACT
100
PCB connector
Connector for printed circuit board, nominal section: 2.5 mm², color: whitish green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 10, number of rows:1, number of poles: 10, number of connections: 10, article family: BCP, pitch: 5 mm, connection type: Screw connection with traction capsule, connection direction conductor/printed circuit board: 0 °, clamping hook: - Clamping hook, plug-in system: BASICLINE 2.5, locking: without, fixing type: without, packaging type: packed in box
Connector for printed circuit board, rated current: 12 A, sizing voltage (III/2): 320 V, nominal section: 2.5 mm², number of poles: 10, pitch: 5 mm, connection type: Screw connection with traction capsule, color: whitish green, surface contacts: Tin
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | Five million four hundred thirty thousand three hundred twenty six |
|---|---|
| Packing unit | 100 pcs |
| Key selling | AAYBAA - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million three hundred forty three thousand one hundred twenty nine |
| Unit weight (excluding packaging) | 4,980 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | CN (China) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million two hundred sixty thousand seven hundred |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand three hundred nine |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
