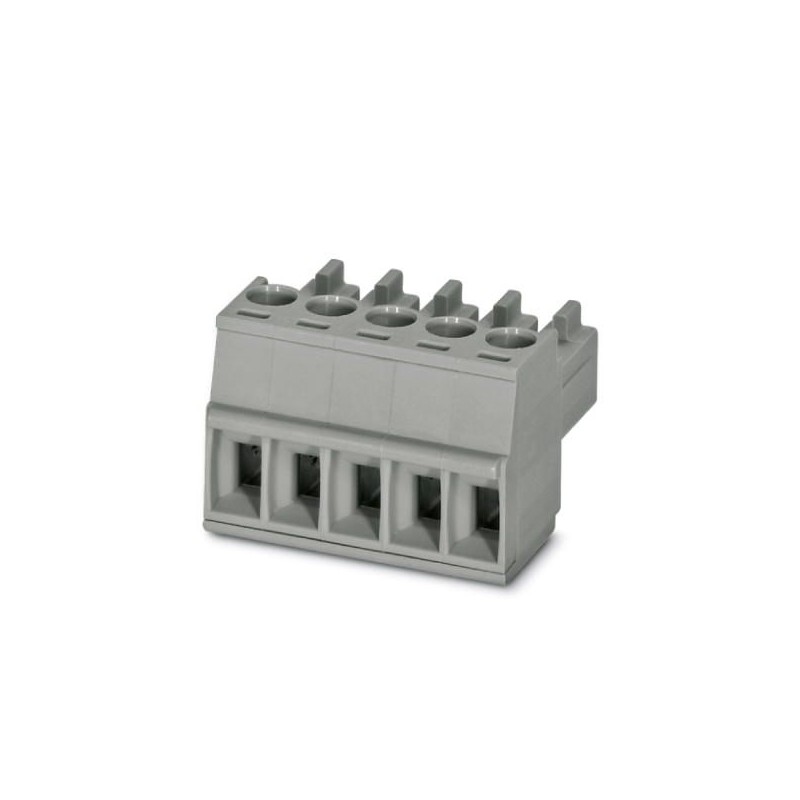

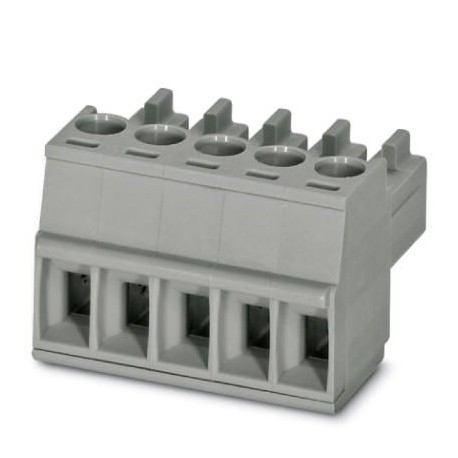

BCP-350- 4 BK CN2 BDWH:5-8 5430215 PHOENIX CONTACT PCB connector, nominal current: 8 A, rated voltage (III/2..
BCP-350-4 BK CN2 BDWH:5-8
5430215
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 4, pitch: 3.5 mm, connection method: Screw connection with tension sleeve, color: black, contact surface: Tin
Connector for printed circuit board, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, article family: BCP, pitch: 3.5 mm, connection type: Screw connection with traction capsule, Connection direction Driver/PCB: 0°, Plug-in system: BASICLINE 1.5, Lock: without, Fixing type: without, Packaging type: Boxed
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 5430215 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626487465 |
| Weight per Piece (excluding packing) | 2.920 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
General
| Range of articles | BCP |
|---|---|
| Number of positions | 4 |
| Connection method | Screw connection with tension sleeve |
| Nominal cross section | 1.5 mm² |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 4 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 3.5 mm |
| Modular spacing connections (EF006827) | 3.5 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
