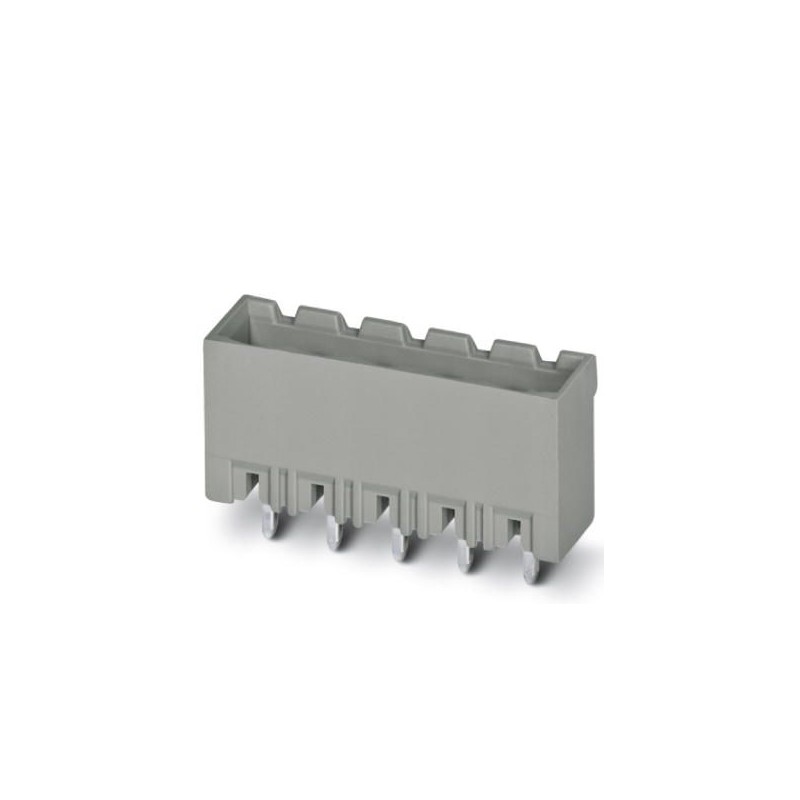

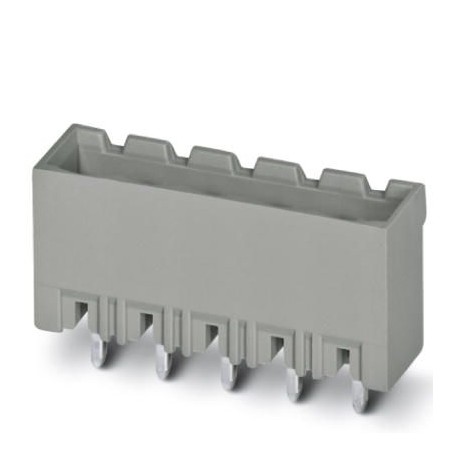

BCH-508VS- 6 BK
5452157
PHOENIX_CONTACT
100
Printed-circuit board connector
Connectors > Printed circuit board connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 5452157 |
---|---|
Packing unit | 100 pc |
Minimum order quantity | 100 pc |
Note | Made to Order (non-returnable) |
GTIN | 4046356854245 |
Weight per Piece (excluding packing) | 2.100 g |
Custom tariff number | 85366930 |
Country of origin | CN (China) |
Length [ l ] | 8.6 mm |
---|---|
Width | 32.48 mm |
Pitch | 5.08 mm |
Dimension a | 25.4 mm |
Width [ w ] | 32.48 mm |
Height [ h ] | 15.9 mm |
Height | 12 mm |
Length of the solder pin | 3.9 mm |
Pin dimensions | 1 x 1 mm |
Length | 8.6 mm |
Range of articles | BCH-VS |
---|---|
Insulating material group | I |
Rated surge voltage (III/3) | 4 kV |
Rated surge voltage (III/2) | 4 kV |
Rated surge voltage (II/2) | 4 kV |
Rated voltage (III/3) | 250 V |
Rated voltage (III/2) | 320 V |
Rated voltage (II/2) | 400 V |
Connection in acc. with standard | EN-VDE |
Nominal current IN | 12 A |
Maximum load current | 12 A |
Insulating material | PA |
Flammability rating according to UL 94 | V0 |
Color | black |
Number of positions | 6 |
Connection in acc. with standard | EN-VDE |
---|---|
CUL | |
Flammability rating according to UL 94 | V0 |
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
---|---|
No hazardous substances above threshold values |
