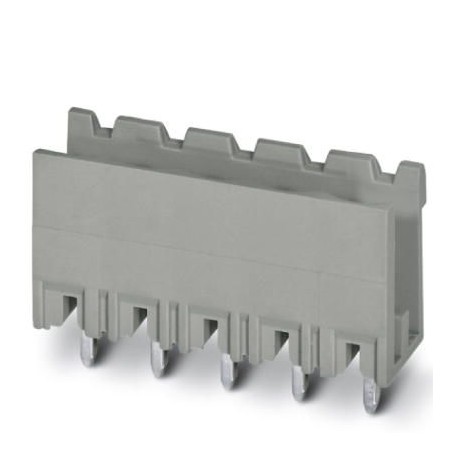

BCH-508V-20 BK 5452430 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º .. View larger

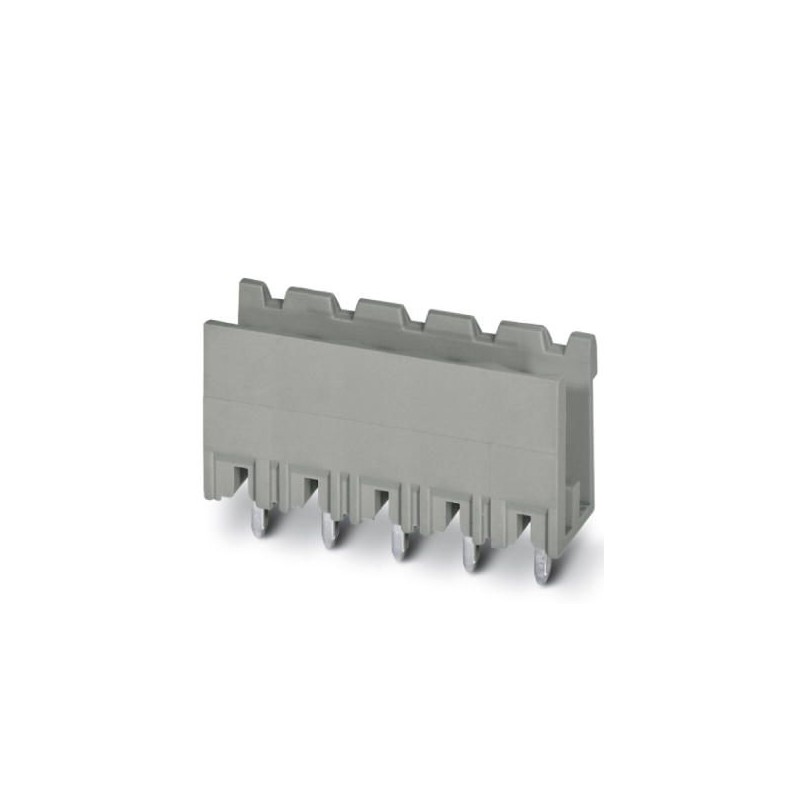

Images are for illustrative purposes only. Please refer to data sheet for details.

BCH-508V-20 BK 5452430 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º ..

BCH-508V-20 BK

5452430

PHOENIX_CONTACT

100

Available Ship on today

New orders for this item will be processed from April 13

Printed-circuit board connector

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Quantity Price
100+$3.86
200+$3.64
300+$3.58
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey 5452430
Packing unit 100 pc
Minimum order quantity100 pc
NoteMade to Order (non-returnable)
GTIN4046356851510
Weight per Piece (excluding packing)7.450 g
Custom tariff number85366930
Country of originCN (China)

Dimensions

Length [ l ]8.6 mm
Width101.6 mm
Pitch5.08 mm
Dimension a96.52 mm
Width [ w ]101.6 mm
Height [ h ]15.9 mm
Height12 mm
Length of the solder pin3.9 mm
Pin dimensions1 x 1 mm
Length8.6 mm

General

Range of articlesBCH-V
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorblack
Number of positions20

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
