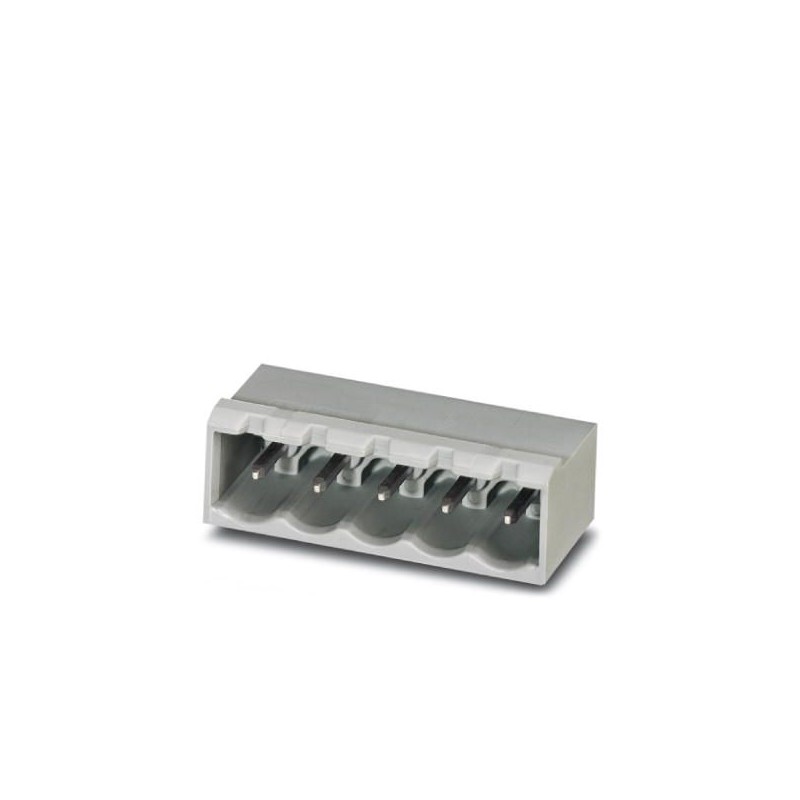

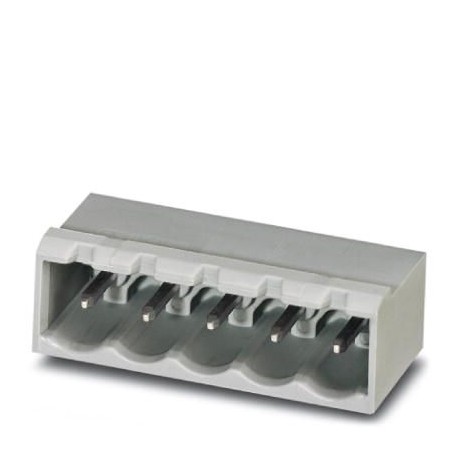

BCH-508HS-19 BK 5452086 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º..
BCH-508HS-19 BK
5452086
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 19,Pitch: 5,08 mm,Color: black,contact Surface: Tin,Assembly: wave Soldering
Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 19, number of rows: 1, number of poles: 19, number of connections: 19, family of articles: BCH-HS, pitch: 5.08 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Commercial data
| Order key | 5452086 |
|---|---|
| Packaging unit | 100 pcs |
| Sell key | AAYBFA - |
| Minimum Order Quantity | 100 pcs |
| Ean | 4046356854955 |
| Weight per unit (excluding packaging) | 7,470 g |
| Tariff rate number | 85366990 |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 98.52 mm |
| Step | 5.08 mm |
| Medium to | 91.44 mm |
| Width [ w ] | 98.52 mm |
| Height [ h ] | 12.07 mm |
| Construction height | 8.57 mm |
| Weld pin length | 3.5 mm |
| Temple Dimensions | 1 x 1 mm |
| Longitude | 12 mm |
General
| Article Family | BCH-HS |
|---|---|
| Insulating material group | I |
| Dimensioning transient voltage (III/3) | 4 kV |
| Dimensioning Transient Voltage (III/2) | 4 kV |
| Dimensioning transient voltage (II/2) | 4 kV |
| Sizing voltage (III/3) | 250 V |
| Dimensioning voltage (III/2) | 320 V |
| Sizing voltage (II/2) | 400 V |
| Standard-compliant connection | EN-VDE |
| Nominal Current IN | 12 A |
| Maximum Charging Current | 12 A |
| Isolation | PA |
| Combustibility class according to UL 94 | V0 |
| Colour | black |
| Number of poles | 19 |
Standards & Specifications
| Standard-compliant connection | EN-VDE |
|---|---|
| CUL | |
| Combustibility class according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Time slot for intended use: unlimited = EFUP-e |
|---|---|
| No hazardous substances above thresholds |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 19 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.23 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
